Display Device Information

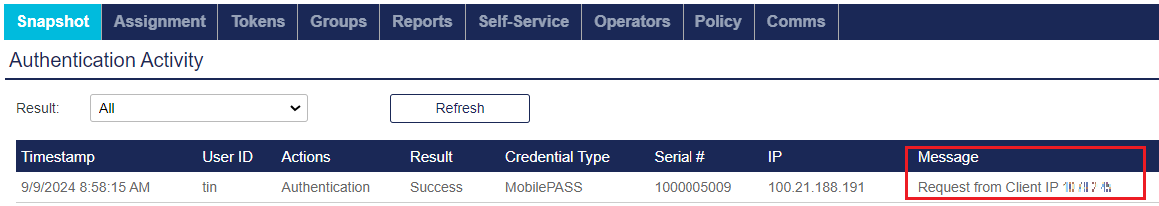

This setting is used to display the client device information on the Virtual Servers > Snapshot tab > Authentication Activity > Message field. The IP details are also displayed in the TokenValidator log file available in the SAS installation folder at \CRYPTOCard\BlackShield ID\Log\TokenValidator.Log.
This functionality is not supported when request is sent from the Windows Logon Agent (WLA) management console.
To enable the display of Client IP, perform the following steps:
-
On the SAS Console, go to your virtual server.
-
Select the Comms tab, expand the Authentication Processing module, and then select Display Device Information.
-
Select the Enable Client IP checkbox. This setting is disabled by default.
-
Click Apply.

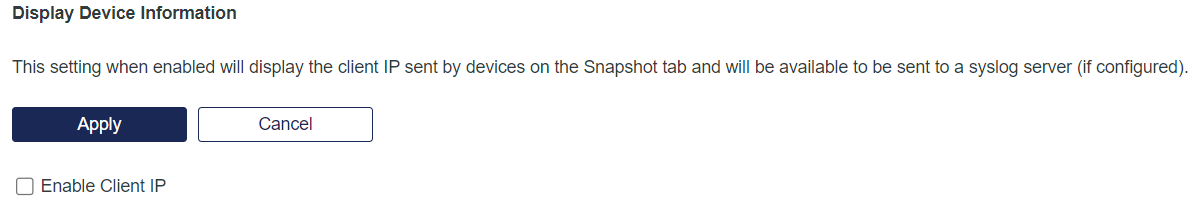

Figure: Comms > Authentication Processing > Display Device Information
If enabled, the Client IP details will only be available per Virtual Server.
