Account management reports
Reports can be customized, scheduled, and automatically delivered to recipients or viewed and downloaded through the SAS console.
The service provider reporting engine provides an extensive range of usage, compliance, inventory management, and billing reports.
You can also view subscriber metrics.
Account managers can also access the following account management reports:
Automatically remove reports
Reports can be automatically removed after a configurable number of days. However, the source data is retained and the reports can be regenerated.
-

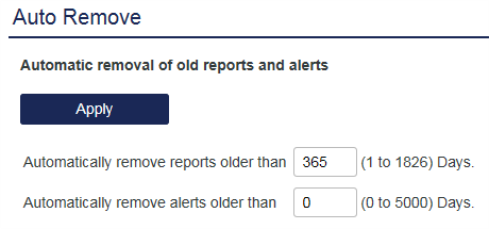

On the SAS console, select Administration > Auto Remove.
-
Enter the number of days after which the reports are removed.
-
1: (Minimum) Removes reports that are more than one day old.
-
365: (Default) Removes reports that are more than one year old.
-
1826: (Maximum) Removes reports that are more than five years old.
In the SAS Classic service zone, reports that are more than one year old are removed even if this value exceeds 365 (days).
-
-
Click Apply.
Account Manager - Roles
Description:
Reports Account Manager Roles.
Class:
Account Management
Filters:
n/a
| Fields in Report | Returns |
|---|---|
| Role Description | String |
| Role Name | String |
| Last Modified | Value:yyyy/mm/dd hh:mm:ss xM (AM or PM) |
| Modified By | String |
| Module | String (Tab Name: Module Name) |
| Permission | Value: Access Edit Delete Add Import Export View Log Everything |
Account Manager - with Static Passwords
Description:
Lists Account Managers with Static Password logon credentials.
Class:
Account Management
Filters:
n/a
| Fields in Report | Returns |
|---|---|
| User ID | String |
| Logon ID | String |
| Last Name | String |
| First Name | String |
| Status | Value: Active Suspend |
| Scope | String |
Account Manager Activity - Detail
Description:
Lists Operator activity in chronological order over last N days.
Class:
Compliance
Filters:
During last N days
| Fields in Report | Returns |
|---|---|
| TimeStamp | yyyy/mm/dd hh:mm:ss xM (AM or PM) |
| User ID | String |
| Action Type | String |
| Result | Value: Success Error |
| Action Data | String |
| Account | String |
Account Manager Activity - Logons
Description:
Reports Operator logons in chronological order over last N days.
Class:
Compliance
Filters:
During last N days
| Fields in Report | Returns |
|---|---|
| Timestamp | yyyy/mm/dd hh:mm:ss xM (AM or PM) |
| User ID | String |
| Logon ID | String |
| User ID | Value: Success Error |
| Source IP | String |
| Token S/N | Value: 0 (password used to logon) serial number (specific token used to authenticate) Multiple (authentication failed against all possible credentials) |
| Result | Value: Success (authentication passed) Failure (authentication failed) Challenge (Account Manager prompted for OTP in response to Challenge) |
| Message | String |
Account Manager List - Detail
Description:
Lists Account Managers, role, scope, access restrictions and last logon.
Class:
Account Management
Filters:
n/a
| Fields in Report | Returns |
|---|---|
| User ID | String |
| Logon ID | String |
| Last Name | String |
| First Name | String |
| Status | Value: Active Suspend Pending |
| Created On | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) |
| Role | String |
| Scope | String |
| Start Date | Value: ---- = none yyyy/mm/dd |
| End Date | Value: ---- = none yyyy/mm/dd |
| Start Time | Value: ---- = none hh:mm |
| End Time | Value: ---- = none hh:mm |
| Days | Value: 1111111 * Where: 0 = restricted. 1=allowed, range(MTWTHSS) |
| Last Logon | Value: 1111111 * Where: 0 = restricted. 1=allowed, range(MTWTHSS) |
Account Summary
Description:
Reports Account Service Status and Capacities.
Class:
Account Management
Filters:
Account
Custom#1
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
Service Type:
- All
- Subscriber
- Virtual Service Provider
Evaluation:
- All
- Yes
- No
Minimum Capacity
| Fields in Report | Returns |
|---|---|
| Account | String |
| Custom#1 | String |
| Custom#2 | String |
| Custom#3 | String |
| Service Type | Value: Service Provider = Virtual Service Provider Subscriber = Subscriber |
| Evaluation | Value: No = Not Evaluation Yes = Evaluation |
| Start date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) |
| Stop date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) |
| Management Group | String |
| Capacity | Integer |
| User Count | Integer |
| Token Count | Integer |
| Active Auth Methods | Integer |
| Parent Account | String |
Alert History
Description:
Reports all alerts and alert status.
Class:
Security Policy
Filters:
Date Range:
- Start Date
- End Date
- Current Month
- Last X Months (Value: 1 - 12), default = 1
| Fields in Report | Returns |
|---|---|
| Date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) |
| Alert ID | Integer |
| Account | String |
| Message | String |
| Acknowledged On | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) |
| Acknowledged By | String |
| Acknowledged Comment | String |
| Closed On | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) |
| Closed By | String |
| Closed Comment | String |
| Removed On | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) |
| Removed By | String |
Account Activation Report
Description:
Summarizes changes to active users by account.
Class:
Billing
Filters:
Account
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
| Fields in Report | Returns |
|---|---|
| Account Name | String |
| Year | String |
| Month | String |
| Custom#1 | String |
| Custom#2 | String |
| Custom#3 | String |
| Active Users (Current Month) | Integer |
| Active Users (Previous Month) | Integer |
| Deactivated Users (Current Month) | Integer |
| New Activations (Current Month) | Integer |
Allocated Tokens
Description:
Reports token totals by type (active/inactive).
Class:
Account Management
Filters:
Account
Custom#1
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
| Fields in Report | Returns |
|---|---|
| Account | String |
| Custom#1 | String |
| Custom#2 | String |
| Custom#3 | String |
| Parent | String |
| Active RB | Integer |
| Active KT | Integer |
| Active MP | Integer |
| Active GrID | Integer |
| Active RSA | Integer |
| Active OATH | Integer |
| Active GOLD | Integer |
| Active eToken | Integer |
| Active MobilePASS | Integer |
| SMS Credits Used | Integer |
| Inactive RB | Integer |
| Inactive KT | Integer |
| Inactive MP | Integer |
| Inactive GrID | Integer |
| Inactive RSA | Integer |
| Inactive OATH | Integer |
| Inactive GOLD | Integer |
| Inactive eToken | Integer |
| Inactive MobilePASS | Integer |
| SMS Credits Inventory | Integer |
| Active RADIUS | Integer |
| Inactive RADIUS | Integer |
Auth Nodes Report
Description:
Reports Auth Node information.
Class:
Account Management
Filters:
Account
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
| Fields in Report | Returns | Account | String |
|---|---|
| Host Name | String |
| Agent Description | String |
| Resource Name | String |
| Low IP Address in Range | String |
| High IP Address in Range | String |
| Use as RADIUS Node | Value: No Yes |
| Allow account lookup based on user name | Value: No Yes |
| Disable PIN change request | Value: No Yes |
| Enabled Realm Authentication | Value: No Yes |
| Parse Mode | Value: First Found Last Found |
| Realm Identifier | String |
| Remove Realm Suffix | Value: No Yes |
| Modified Date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) |
| Parent Name | String |
Authentication Metrics (Rolling YTD)
Description:
Reports Total Authentications/Month (Rolling YTD).
Class:
Account Management
Filters:
Account
Custom#1
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
| Fields in Report | Returns |
|---|---|
| Account | String |
| Custom#1 | String |
| Custom#2 | String |
| Custom#3 | String |
| Current Month (M) | Value: yyyyy-mm |
| M-1 (proper month name) | Value: yyyyy-mm |
| M-2 | Value: yyyyy-mm |
| M-3 | Value: yyyyy-mm |
| M-4 | Value: yyyyy-mm |
| M-5 | Value: yyyyy-mm |
| M-6 | Value: yyyyy-mm |
| M-7 | Value: yyyyy-mm |
| M-8 | Value: yyyyy-mm |
| M-9 | Value: yyyyy-mm |
| M-10 | Value: yyyyy-mm |
| M-11 | Value: yyyyy-mm |
| Parent Account | String |
Metrics are updated on the first day of each month, therefore the current month metrics are not available until the first day of the next month.
Authentication Metrics Detailed (Rolling YTD)
Description:
Reports authentication metrics for day, wtd, mtd and ytd periods.
Class:
Account Management
Filters:
Account
Custom#1
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
| Fields in Report | Returns |
|---|---|
| Account | String |
| Custom#1 | String |
| Custom#2 | String |
| Custom#3 | String |
| Parent | String |
| Today Pass | Integer |
| Today Fail | Integer |
| Today Total | Integer |
| Week-to-date Pass | Integer |
| Week-to-date Fail | Integer |
| Week-to-date Total | Integer |
| Month-to-date Pass | Integer |
| Month-to-date Fail | Integer |
| Month-to-date Total | Integer |
| Year-to-date Pass | Integer |
| Year-to-date Fail | Integer |
| Year-to-date Total | Integer |
Billing - Detail
Description:
Billing detail by asset.
Class:
Billing
Filters:
Account Name
Custom#1
Transaction ID
| Fields in Report | Returns | |
|---|---|---|
| Account | String | |
| Custom#1 | String | |
| Custom#2 | String | |
| Custom#3 | String | |
| Transaction ID | Integer | |
| Transaction Type | String | |
| Product | String | |
| Number Activated | Integer | |
| Number Transferred | Integer | |
| Capacity | Integer | |
| Provider | String | |
| Allocation date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) | |
| Billing Basis | String | |
| Rate | String | |
| Reference | String | |
| Comment | String | |
| Warranty Replacement | String | |
| For Evaluation | String | |
Billing - Monthly Transaction Summary
Description:
Billing detail by transaction with asset totals in a given month.
Class:
Billing
Filters:
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
Account
Custom#1
Month
| Fields in Report | Returns | |
|---|---|---|
| Account | String | |
| Custom#1 | String | |
| Custom#2 | String | |
| Custom#3 | String | |
| Parent | String | |
| RB | Integer | |
| KT | Integer | |
| MP | Integer | |
| GrID | Integer | |
| RSA | Integer | |
| OATH | Integer | |
| GOLD | Integer | |
| SMS Credits | Integer | |
| ICE | Integer | |
| Capacity | Integer | |
Billing - Summary
Description:Billing detail by transaction.
Class:
Billing
Filters:
Account Name
Custom#1
Transaction ID
| Fields in Report | Returns | |
|---|---|---|
| Account | String | |
| Custom#1 | String | |
| Custom#2 | String | |
| Custom#3 | String | |
| Transaction ID | Integer | |
| Transaction Type | Value: Rental Sale ICE SMS Credits |
|
| Billing Basis | Value: Allocation Activation Authentication Transfer |
|
| Billing Start Date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) | |
| Rate | String | |
| Reference | String | |
| Comment | String | |
| Warranty Replacement | Value: No Yes |
|
| For Evaluation | String | |
| Type | Value: KT RB MP Custom SecurID OATH Legacy |
|
| Capacity | Integer | |
| Allocation date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) | |
| Total Units | Integer | |
Billing - Transaction Logs, by Account
Description:
Reports transactions between specified dates.
Class:
Billing
Filters:
Account Name
Custom#1
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
Date Range:
- Start Date
- End Date
- Current Month
- Last X Months (Value: 1 - 12), default = 1
| Fields in Report | Returns | |
|---|---|---|
| Account Name | String | |
| Custom#1 | String | |
| Custom#2 | String | |
| Custom#3 | String | |
| Transaction ID | Integer | |
| Reference | String | |
| Allocated by | String | |
| Allocation Date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) | |
| Quantity | Integer | |
| Type | Value: Rental Sale ICE SMS Credits |
|
| Product | Value: KT RB MP Custom OATH SecurID Legacy |
|
| Capacity | Integer | |
| Parent Name | String | |
Billing - Transaction Logs, by Account, Details
Description:
Reports transactions by account.
Class:
Billing
Filters:
Account Name
Custom#1
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
Date Range:
- Start Date
- End Date
- Current Month
- Last X Months (Value: 1 - 12), default = 1
| Fields in Report | Returns | |
|---|---|---|
| Account Name | String | |
| Custom#1 | String | |
| Custom#2 | String | |
| Custom#3 | String | |
| Transaction ID | Integer | Reference | String |
| Allocated by | String | |
| Allocation Date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) | |
| Type | Value: Rental Sale ICE SMS Credits |
|
| Serial | String | |
| Product | Value: KT RB MP Custom OATH SecurID Legacy (Nothing indicates capacity only) |
|
| Capacity | Integer * Total capacity in transaction (not total per unit per transaction) |
|
| Parent Name | String | |
| Allocated by | String | |
Billing - Users by Custom Field
Description:
Reports users across child accounts, filtered by Custom#1 field.
Class:
Billing
Filters:
Custom#1
| Fields in Report | Returns | |
|---|---|---|
| Account Name | String | |
| User ID | String | |
| Custom#1 | String | |
| Custom Field 3 | String | |
| Token Type | String | |
| Evaluation | Integer: 0 1 |
|
Dormant Accounts
Description:
Lists accounts with no authentications in N days.
Class:
Account Management
Filters:
Days
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
| Fields in Report | Returns | |
|---|---|---|
| Account | String | |
| Custom#1 | String | |
| Custom#2 | String | |
| Custom#3 | String | |
| Service Type | Value: Service Provider Subscriber |
|
| Evaluation | Value: No Yes |
|
| Start Date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) | |
| Stop Date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) | |
| Capacity | Integer | |
| Token Count | Integer | |
| Active Auth Methods | Integer | |
| Parent Account | String | |
Expired Accounts
Description:
Lists accounts with expired service dates.
Class:
Account Management
Filters:
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
| Fields in Report | Returns | |
|---|---|---|
| Account | String | |
| Custom#1 | String | |
| Custom#2 | String | |
| Custom#3 | String | |
| Service Type | Value: Service Provider Subscriber |
|
| Evaluation | Value: No Yes |
|
| Start date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) | |
| Stop date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) | |
| Capacity | Integer | |
| Token Count | Integer | |
| Active Auth Methods | Integer | |
| Parent Account | String | |
Expiring Accounts
Description:
Lists accounts with service expiring in N days.
Class:
Account Management
Filters:
Expiring within:
- 30 (default)
- 60
- 90
- 120
- 180
- 360 days
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
| Fields in Report | Returns | |
|---|---|---|
| Account | String | |
| Custom#1 | String | |
| Custom#2 | String | |
| Custom#3 | String | |
| Service Type | Value: Service Provider Subscriber |
|
| Evaluation | Value: No Yes |
|
| Start Date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) | |
| Stop Date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) | |
| Capacity | Integer | |
| Token Count | Integer | |
| Active Auth Methods | Integer | |
| Parent Account | String | |
Service Metrics - Average Authentications per User (Rolling YTD)
Description:
Reports average authentications/user by account type (rolling YTD).
Class:
Service Metrics
Filters:
Service Type:
- All
- Subscriber
- Virtual Service Provider
Evaluation:
- All
- Yes
- No
| Fields in Report | Returns |
|---|---|
| Account | String |
| Current Month (M) | Value: yyyyy-mm |
| M-1 | Value: yyyyy-mm |
| M-2 | Value: yyyyy-mm |
| M-4 | Value: yyyyy-mm |
| M-5 | Value: yyyyy-mm |
| M-6 | Value: yyyyy-mm |
| M-7 | Value: yyyyy-mm |
| M-8 | Value: yyyyy-mm |
| M-9 | Value: yyyyy-mm |
| M-10 | Value: yyyyy-mm |
| M-11 | Value: yyyyy-mm |
Metrics are updated on the first day of each month, therefore the current month metrics are not available until the first day of the next month.
Service Metrics - Total Active Users per Month (Rolling YTD)
Description:
Reports total active users by account type (rolling YTD).
Class:
Service Metrics
Filters:
Service Type:
- All
- Subscriber
- Virtual Service Provider
Evaluation:
- All
- Yes
- No
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
| Fields in Report | Returns |
|---|---|
| Account | String |
| Custom #1 | String |
| Custom #2 | String |
| Custom #3 | String |
| Current Month (M) | Value: yyyyy-mm |
| M-1 | Value: yyyyy-mm |
| M-2 | Value: yyyyy-mm |
| M-3 | Value: yyyyy-mm |
| M-4 | Value: yyyyy-mm |
| M-5 | Value: yyyyy-mm |
| M-6 | Value: yyyyy-mm |
| M-7 | Value: yyyyy-mm |
| M-8 | Value: yyyyy-mm |
| M-9 | Value: yyyyy-mm |
| M-10 | Value: yyyyy-mm |
| M-11 | Value: yyyyy-mm |
| Id | Unique Account ID |
Metrics are updated on the first day of each month, therefore the current month metrics are not available until the first day of the next month.
Service Metrics - Total Authentications per Month (Rolling YTD)
Description:
Reports total authentication/month (rolling YTD).
Class:
Service Metrics
Filters:
Service Type:
- All
- Subscriber
- Virtual Service Provider
Evaluation:
- All
- Yes
- No
| Fields in Report | Returns |
|---|---|
| Current Month (M) | Value: yyyyy-mm |
| M-1 | Value: yyyyy-mm |
| M-2 | Value: yyyyy-mm |
| M-4 | Value: yyyyy-mm |
| M-5 | Value: yyyyy-mm |
| M-6 | Value: yyyyy-mm |
| M-7 | Value: yyyyy-mm |
| M-8 | Value: yyyyy-mm |
| M-9 | Value: yyyyy-mm |
| M-10 | yyyyy-mm | Value | yyyyy-mm |
| M-11 | Value: yyyyy-mm |
Metrics are updated on the first day of each month, therefore the current month metrics are not available until the first day of the next month.
Service Metrics - Total Subscribed Accounts (Rolling YTD)
Description:
Reports total number of subscribed accounts (rolling YTD).
Class:
Service Metrics
Filters:
Service Type:
- All
- Subscriber
- Virtual Service Provider
Evaluation:
- All
- Ye
- No
| Fields in Report | Returns |
|---|---|
| Account | String | Current Month (M) | Value: yyyyy-mm |
| M-1 | Value: yyyyy-mm |
| M-2 | Value: yyyyy-mm |
| M-4 | Value: yyyyy-mm |
| M-5 | Value: yyyyy-mm |
| M-6 | Value: yyyyy-mm |
| M-7 | Value: yyyyy-mm |
| M-8 | Value: yyyyy-mm |
| M-9 | Value: yyyyy-mm |
| M-10 | Value: yyyyy-mm |
| M-11 | Value: yyyyy-mm |
Metrics are updated on the first day of each month, therefore the current month metrics are not available until the first day of the next month.
Service Metrics - Total Subscribed Capacity (Rolling YTD)
Description:
Reports total quantity of subscribed capacity (rolling YTD).
Class:
Service Metrics
Filters:
Service Type:
- All
- Subscriber
- Virtual Service Provider
Evaluation:
- All
- Yes
- No
| Fields in Report | Returns |
|---|---|
| Account | String | Current Month (M) | Value: yyyyy-mm |
| M-1 | Value: yyyyy-mm |
| M-2 | Value: yyyyy-mm |
| M-4 | Value: yyyyy-mm |
| M-5 | Value: yyyyy-mm |
| M-6 | Value: yyyyy-mm |
| M-7 | Value: yyyyy-mm |
| M-8 | Value: yyyyy-mm |
| M-9 | Value: yyyyy-mm |
| M-10 | Value: yyyyy-mm |
| M-11 | Value: yyyyy-mm |
Metrics are updated on the first day of each month, therefore the current month metrics are not available until the first day of the next month.
SIM Provisioning Tasks
Description:
All SIM provisioning tasks (This report is not available unless licensed for SAE).
Class:
Asset Management
Filters:
Date Range:
- Start Date
- End Date
- Current Month
- Last X Months (Value: 1 - 12), default = 1
| Fields in Report | Returns | Task ID | Integer |
|---|---|
| MSISDN | Integer |
| Slot # | Integer |
| User Name | String |
| Serial | String |
| State | Integer |
| Failed Attempt Count | Integer |
| Result | Integer |
| OTA Server Message | String |
| Max. Retry Value | String |
SIM Slot Information
Description:
Information on SIM cards with a token provisioned. (This report is not available unless
licensed for SAE).
Class:
Asset Management
Filters:
MSISDN
| Fields in Report | Returns | MSISDN | Integer |
|---|---|
| Slot # | Integer |
| Serial | String |
| Token Type | String |
| Slot State | Integer |
| Description | String |
SMS Message Report
Description:
Reports the number of SMS message sent in a time period.
Class:
Billing
Filters:
Account
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
| Fields in Report | Returns | Account Name | String | Custom#1 | String | Custom#2 | String | Custom#3 | String | Month | Integer | SMS/OTP | Integer | SMS/Alerts and Messages | Integer |
|---|
SMS Message Report - Detailed
Description: Details of SMS message sent in a time period.
Class: Billing
Filters:
Account Name
Messages in:
- Current Month
- Last Month
- Last 3 Months
- Last Year
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
| Fields in Report | Returns | Custom#1 | String | Custom#2 | String | Custom#3 | String | Time | Value | Message Type | String | User ID | String | Sent To | Integer | Gateway | String |
|---|
Token Assignment Report
Description:
Summarizes changes to token inventory.
Class:
Billing
Filters:
Account
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
| Fields in Report | Returns | Account Name | String | Year | Integer | Month | Integer | Custom#1 | String | Custom#2 | String | Custom#3 | String | Token Type | String | Token Inventory Start of Month | Integer | Token Inventory End of Month | Integer | Deallocation during period | Integer | Allocation during period | Integer |
|---|
Tokens - by Account
Description:
Reports total tokens by type and state by account.
Class:
Asset Management
Filters:
State:
- All
- Not Iniatialized
- Inventory
- Assigned
- Active
- PIN Change
- Lost
- Faulty
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
| Fields in Report | Returns | Account Name | String | Custom#1 | String | Custom#2 | String | Custom#3 | String | Token Type | Value: KT RB MP GrIDsure OATH SecurID Legacy SMS | State | Value:
All Active Assigned Lost Inventory PIN Change Not Initialized Faulty |
Count | Integer |
|---|
Tokens - by Account, Detail
Description:
Reports token detail by account.
Class:
Asset Management
Filters:
Product:
- All (default)
- KT
- RB
- MP
- LEGACY
- SMS
- OATH
- Custom
- GOLD
- eToken
- MobilePASS
- GoogleAuthenticator
- GrIDsure
- SecurID
- SecurID-VF
- RADIUS
Child Only:
- All = All accounts in tree
- Child Only = Onboarded accounts
| Fields in Report | Returns |
|---|---|
| Account Name | String |
| Custom#1 | String | Custom#2 | String | Custom#3 | String | Serial Number | String | Type | Value:KT RB MP GrIDsure OATH SecurID Legacy SMS |
In-Service date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) | Activated Date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) | State | Value: All Active Assigned Lost Inventory PIN Change Not Initialized Faulty |
Last Auth Date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) | Total Auth | Integer | Allocation Date | Value: yyyy/mm/dd hh:mm:ss xM (AM or PM) | Allocation Type | Value:
Allocation Authentication Activation Transfer |
Transaction ID | Integer | Reference | String | Allocated by | String |
Token by Serial Number Range
Description:
This report lists tokens by serial number range.
Class:
Asset Management
Filters:
From Serial #
To Serial #
| Fields in Report | Returns |
|---|---|
| Allocated to | String |
| Allocated From | String |
| Custom#1 | String |
| Custom#2 | String |
| Custom#3 | String |
| Serial # | String |
| Type | String |
| Allocation Date | Date |
| Transaction ID | Integer |
| Reference | String |
| Allocated by | String |
| Allocated by Account | String |
| Allocation Type | String |
User and Token Count by Container
Description:
Number of user and tokens in each container for child accounts.
Class:
Billing
Filters:
n/a
| Fields in Report | Returns |
|---|---|
| Account Name | String |
| Custom#1 | String |
| Container Name | String |
| User Count | Integer |
| Token Count | Integer |
Users by Container
Description:
List of all users by container for child accounts
Class:
Billing
Filters:
n/a
| Fields in Report | Returns |
|---|---|
| Account Name | String |
| Custom#1 | String |
| Container Name | String |
| User Name | String |
| First Name | String |
| Last Name | String |
| String | |
| Serial | String |
