Multifactor Authentication for CTE GuardPoints

Administrator Tasks for Multifactor Authentication

search

Please Note:

Administrator Tasks for Multifactor Authentication

Using the Proper Filter

Note

The Multifactor Authentication feature requires the CTE VMLFS driver. This driver must be running in order for Multifactor Authentication to work.

  • All new installations of 7.3.0.x contain this driver. Type fltmc to verify. A table displays listing all current drivers.

    Filter Name Num Instances Altitude Frame
    WdFilter 4 328010 0
    storqosflt 0 244000 0
    wcifs 0 189900 0
    vmlfs 4 142900 0
    FileCrypt 0 141100 0
    luafv 1 135000 0
    npsvctrig 1 46000 0
    Wof 1 40700 0

  • Agents upgraded from 7.2.0, and previous versions, may be using the vmfiltr driver. If the agent ran the vmfiltr driver, then when you upgrade to 7.3.0, it will start with the vmfiltr driver. If the previous agent ran the vmlfs driver, then when you upgrade to 7.3.0, it will start the vmlfs driver. Type the following to switch to the vmlfs driver:

    voradmin config enable vmlfs

User Authentication

Authentication is provided for the entire client and is enforced the first time a user opens a file. After the initial file opening, the user can perform read/writes to the file.

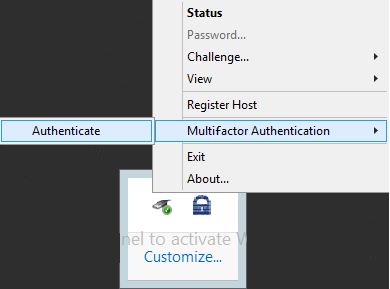

To authenticate, a user can login to MFA from the Windows system tray:

  1. Click on the CTE icon in the System Tray.

  2. Select Multi-Factor Authentication > Authenticate.

  3. Login in to access the STA OIDC template.

    After you log in, a message displays confirming your authentication and your access to the GuardPoint.

  4. Close the Window to continue.

Note

If you logout, you disable your access to the GuardPoint.

Voradmin Commands

voradmin mfa status

Displays the MFA information for a user.

Syntax

voradmin mfa status

Example

C:\Windows\system32>voradmin mfa status

Response

User \dram is allowed access.
MFA enabled guardpath(s) (Number of paths: 2):
C:\cm\gp2
C:\cm\gp1

voradmin mfa config

Displays configuration information.

Syntax

voradmin mfa config

Response

HostMfaEnable is set.
MFA enabled guardpath(s) (Number of paths: 2):
C:\cm\gp2
C:\cm\gp1
MFA access allowed users(s) (Number of users: 2):
    Users\dram
    NT AUTHORITY\SYSTEM
MFA Exempt-List: (Number of entries: 1)
    user: "system", group: "", domain(s): "NT AUTHORITY"
OIDC configuration:
    login-port : 5560
    notification-port : 5562
    client-id : 6653gd25-e1c7-4257-6034-46c77ffc8cb6
            url : https://idp.eu.safenetid.com/auth/realms/1UWUA52A8A-STA

voradmin mfa check-connection

Allows the admin user to check the connection to the OIDC provider.

Syntax

voradmin mfa check-connection <name_of_OIDC-configuration-url>

Example

C:\Windows\system32>voradmin mfa check-connection https://idp.eu.safenetid.com/auth/realms/1UWUA6OA8A-STA/.well-known/openid-configuration

Response 1: Success

Connection ok to https://idp.eu.safenetid.com/auth/realms/1UWUA6OA8A-STA/.well-known/openid-configuration

Response 2: Failure

Connection failed to https://idp.eu.safenetid.com/auth/realms/1UWUA6OA8A-STA/.well-known/openid-configuration-bad

voradmin mfa update-ports

Allows the administrator to update the OIDC ports.

  • Updating the ports restarts the CipherTrust Transparent Encryption Multifactor Authentication application. Users must login to Multifactor Authentication again after the ports are updated.

Warning

If the OIDC-login-port is changed, then the redirect-URI for the OIDC application at the Multifactor Authentication provider must also be changed. It is specified in the format: http://127.0.0.1:<oidc-login-port>/auth/callback. If redirect-URI is not changed, CipherTrust Transparent Encryption may fail to connect to the provider.

Syntax

voradmin mfa update-ports <oidc-login-port> <oidc-notification-port>

Example

C:\Windows\system32> voradmin mfa update-ports 8000 8075

Response

Updated OIDC ports

voradmin mfa set-auth-expiry

Allows the admin to set an authentication expiry time.

Note

Changing authentication expiry clears all existing MFA logins. Users must login again.

Syntax

voradmin mfa set-auth-expiry <time interval in minutes (specify 0 to disable expiry time)>

Example

C:\Windows\system32> voradmin mfa set-auth-expiry 5

Response

Authentication will expire every 5 minute(s).
Re-authenticate for new settings.

voradmin mfa localhost-redirect-uri

You do not need to manually set a parameter for this command. If you use set it automatically uses http://localhost:5590/auth/callback as the redirect URI. If you use unset it automatically uses the default redirect URI for the MFA provider. This command is useful if an MFA provider does not allow 127.0.0.1 as the redirect URI.

Syntax

voradmin mfa localhost-redirect-uri <get|set|unset>

voradmin mfa domains-map

Domain mapping is generally applicable for use with all providers, though it is only required for Entra ID.

Syntax

voradmin mfa domains-map <get|set|unset> <domain1>:<domain2>

Example

voradmin mfa domains-map set thalesgroup.com:<localhost>.com

Response

Restart secfsd service to affect changes.

Note

You can map multiple domains using a comma in between domain names. For example:

voradmin mfa domains-map set <domain-1-onMFA-provider>:<domain-1-onHost>,<domain-2-onMFA-provider>:<domain-2-onHost>

voradmin mfa remote-config

Remote authentication allows a user to log into Multifactor Authentication through a machine other than a CTE client. This allows you to enable authentication from remote endpoints accessing CIFS shares, exported by a CTE agent.

Syntax

    voradmin mfa remote-config [<get|set|unset>] [<privateKeyFile> <certificateFile>]
Options Description
certificateFile Presented to web browser during TLS communication to the web browser.
get Displays the 'sha256' encryption for keys and certificates. It allows the customer to check for a valid key and certificate that they imported using the set option.
privateKeyFile Used by the OIDC service for TLS communication with the web browser.
set Imports the key and certificate in use by CTE.
unset Disables the remote authentication for Multifactor Authentication and reverts back to local Multifactor Authentication authentication.

See Remote Authentication for Multifactor Authentication for more information.

Restarting SecFSD

Many Multifactor Authentication commands require restarting SecFSD to enable.

  1. To stop secfsd, type:

    net stop secfsd

  2. To restart secfsd, type:

    net start secfsd
