CTE Components

The CTE solution consists of two parts:

• The CTE Agent software that resides on each protected virtual or physical machine (host). The CTE Agent performs the required data encryption and enforces the access policies sent to it by the key manager. The communication between the CTE Agent and the key manager is encrypted and secure.
  After the CTE Agent has encrypted a device on a host, that device is called a GuardPoint. You can use CTE to create GuardPoints on servers on-site, in the cloud, or a hybrid of both.

• A key manager that stores and manages data encryption keys, data access policies, administrative domains, and administrator profiles. After you install the CTE Agent on a host and register it with a key manager, you can use the key manager to specify which devices on the host that you want to protect, what encryption keys are used to protect those devices, and what access policies are enforced on those devices.

  Thales offers two key managers that work with CTE:

  • CipherTrust Manager, Thales's next generation key manager that supports most CTE features on Linux and Windows, and all CTE features on AIX.

  CipherTrust Manager can be set up as either a security-hardened physical appliance or a virtual appliance. It provides access to the protected hosts though a browser-based, graphical user interface as well as an API and a CLI.

  CipherTrust Manager versions support all CTE for Windows features except for the following:

CTE Architecture

A GuardPoint is usually associated with a Linux/AIX mount point or a Windows volume, but it may also be associated with a directory sub-tree.The CTE Agent sits between applications and the file system that hosts files within the GuardPoint. The CTE Agent intercepts every file access request and enforces the access and encryption rules in the policy associated with the GuardPoint.

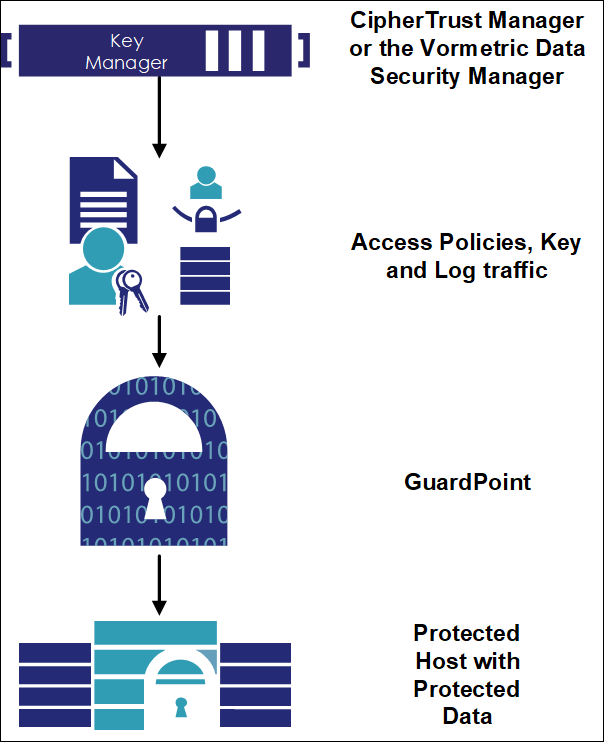

Figure 1-1: CTE Architecture
