Manual key generation

The following steps can be used to generate a key (and edit its attributes) manually. Follow the steps based on whether you are using the Graphical User Interface (GUI) or Command-Line Interface (CLI).

Graphical User Interface method

1. Double-click KMU HSM.Bat batch file available at the following path:

   C:\Program Files\SafeNet\Protect Toolkit 5\Protect Toolkit C SDK\bin

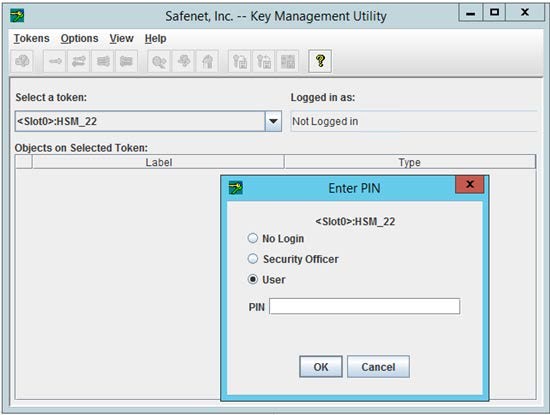

2. The Key Management Utility (KMU) window is displayed. Select the previously created token [Slot<SLOT_NUMBER> for the first token] and use User PIN option to login.



   Note

   Ensure to select <Slot 0> option in Select a token dropdown menu.

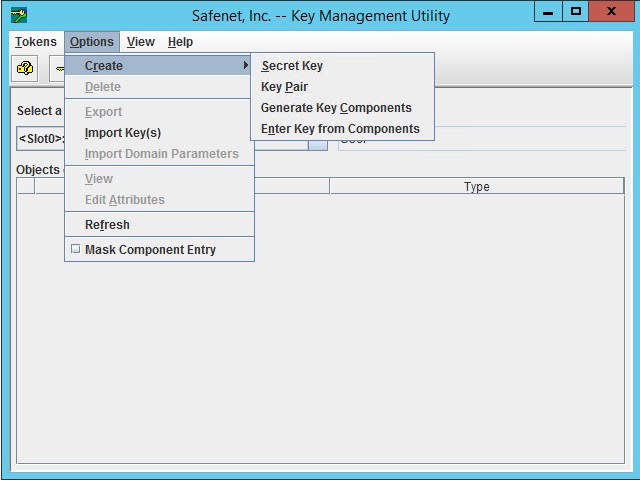

3. To create a secret key, navigate to Options > Create > Secret Key.

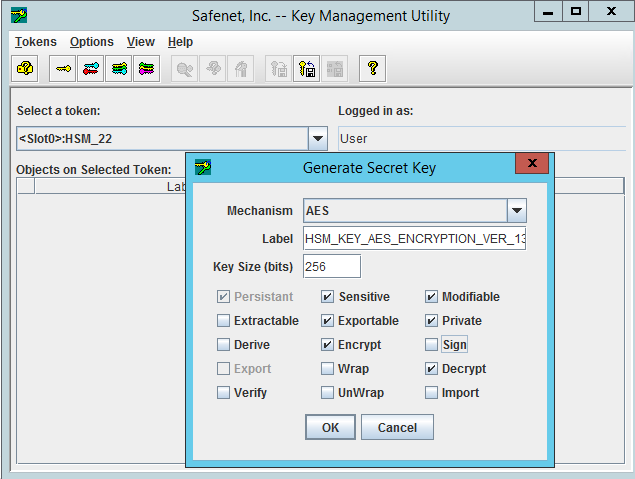

4. The Generate Secret Key popup window is displayed.



   Enter/Edit the following fields, and click OK.

   1. Label: Provide the label of the key as: HSM_KEY_AES_ENCRYPTION_VER_13.

   2. Key Size (bits): Change to 256, from the default value of 128.

   Ensure only the following checkboxes are selected:

   • Persistent

   • Sensitive

   • Modifiable

   • Exportable

   • Private

   • Encrypt

   • Decrypt

5. A key is be generated for the particular slot.





   Note

   Key generation can also be done using SAS itself. When you enable the HSM in SAS System Settings, provide the User PIN for the slot and apply changes, a key is created automatically for the slot.

Command-Line Interface method

1. Execute the KMU HSM.Bat batch file available at the following path:

   C:\Program Files\SafeNet\Protect Toolkit 5\Protect Toolkit C SDK\bin

2. To create key(s) in the slot, execute the following command:

   ctkmu c –t<type of key> -s <slot number> -n <label of the Key> -a<attributes of the keys>

   Example: ctkmu c -taes -s0 -nHSM_KEY_AES_ENCRYPTION_VER_13 -aEDMX –z256

   In the above example, the execution of the command generates an AES (256 bit) key named HSM_KEY_AES_ENCRYPTION_VER_13 in Slot 0 with following attributes: Encrypt, Decrypt, Exportable and Modifiable.



   Note

   The following lists the attributes that are allowed:
   P: CKA_PRIVATE
   M: CKA_MODIFIABLE
   T: CKA_SENSITIVE
   W: CKA_WRAP
   w: CKA_EXPORT
   I: CKA_IMPORT
   U: CKA_UNWRAP
   X: CKA_EXTRACTABLE
   x: CKA_EXPORTABLE
   R: CKA_DERIVE
   E: CKA_ENCRYPT
   D: CKA_DECRYPT
   S: CKA_SIGN
   V: CKA_VERIFY
   L: CKA_SIGN_LOCAL_CERT

   The following table provides descriptions of the listed keys:

   Flag	Description
   Decrypt	Security Object supports decryption
   Derive	Key can be used to derive operations
   Encrypt	Security Object supports encryption
   Exportable	Key can be exported in cleartext through the pkcs#11 API (Not backup/restore related). NOTE: HSM prevents the export operation.
   Extractable	Key can be wrapped with transport key of the HSM (Not backup/restore related)
   Import	NA
   Modifiable	Allow attributes to be changed after key generation
   Private	Authentication required prior to security object being visible
   Senstive	Security sensitive attributes non-readable
   Sign	Security Object supports signing
   UnWrap	Security Object supports unwrapping (can be used to unwrap another key)
   Verify	Security Object supports verification (public key)
   Wrap	Security Object supports wrapping (can be used to wrap another key)

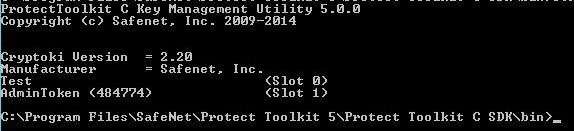

3. Close and reopen the Command Prompt, and run the Ctkmu l command.

   A list of the available slot(s) is displayed.





   Note

   If you need to export the Private Key created at one SAS machine to another SAS machine, refer to Exporting and Importing Private Keys
