SAS PCE for Non-SAML/OIDC Web Application

Configure SafeNet App Gateway with SAS PCE

search

Please Note:

Configure SafeNet App Gateway with SAS PCE

Configuring SafeNet App Gateway with SAS PCE is a two-step process:

  1. Identity Provider (SafeNet Access Exchange) setup

  2. Agent file configuration and upload

Identity Provider (SafeNet Access Exchange) Setup

Configuring the IdP (for example, SafeNet Access Exchange) requires:

  1. Creating a client

  2. Generating a private key and selecting the credentials type for the client

Creating a Client

Perform the following steps to create a client in SAE:

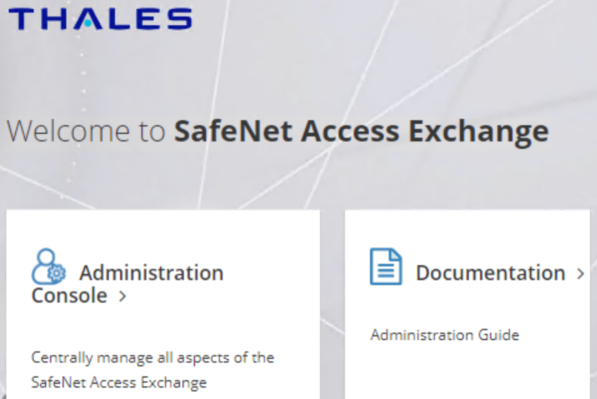

  1. Log into SAE as an administrator.

    Default icon

  2. On the administrator console, select your realm (for example, SASPCE).

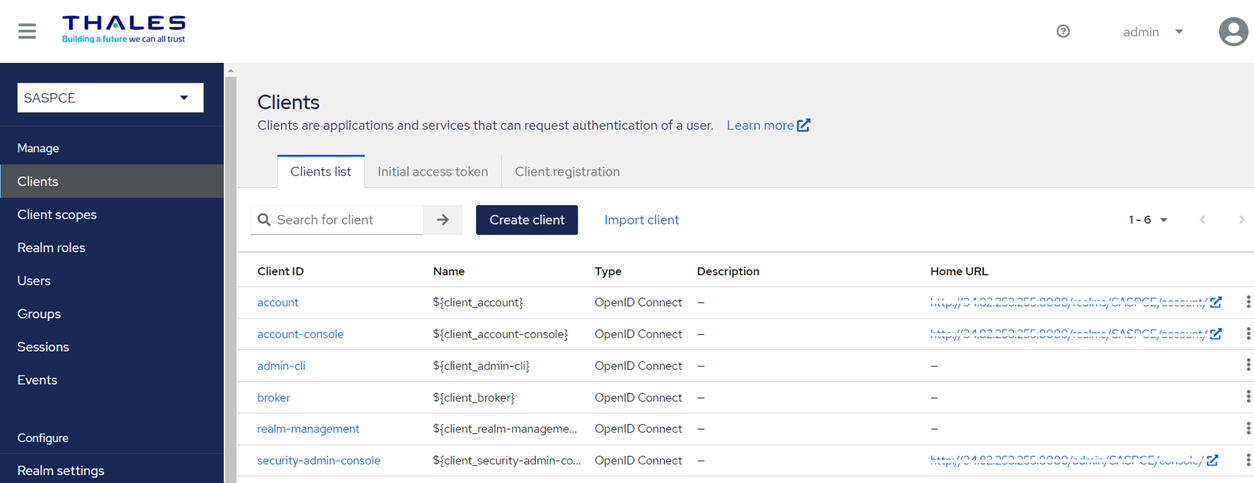

  3. In the left pane, under Manage, click Clients, and in the right pane, click Create client.

    Default icon

  4. Under Create Client, perform the following steps:

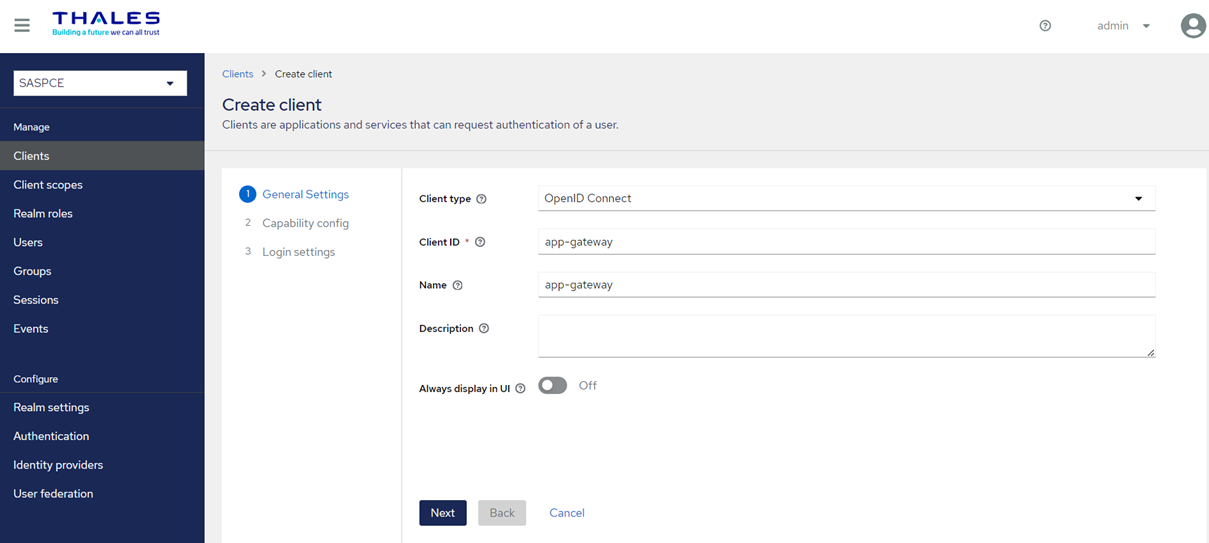

    1. Under General Settings, perform the following steps:

      • In the Client type field, select OpenID Connect.

      • In the Client ID field, enter a client ID (for example, app-gateway).

        This ID is an alpha-numeric string that is used to identify the client in OIDC requests.

      • (Optional) In the Name field, enter a name of your choice (for example, app-gateway).

      • Click Next.

      Default icon

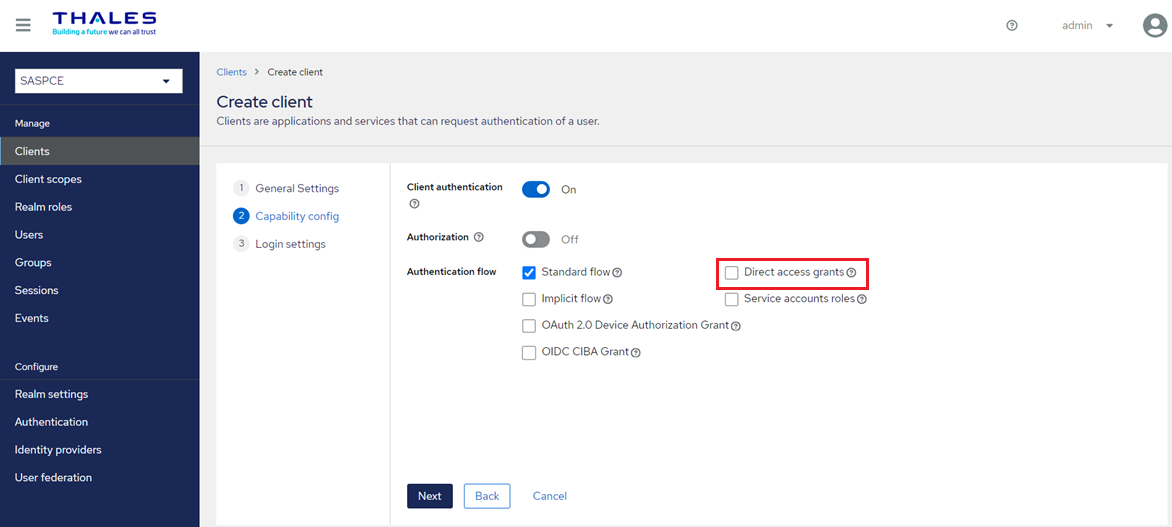

    2. Under Capability config, perform the following steps:

      • Turn on the Client authentication toggle.

      • Under Authentication flow, clear the Direct access grants checkbox.

      • Click Next.

      alt_text

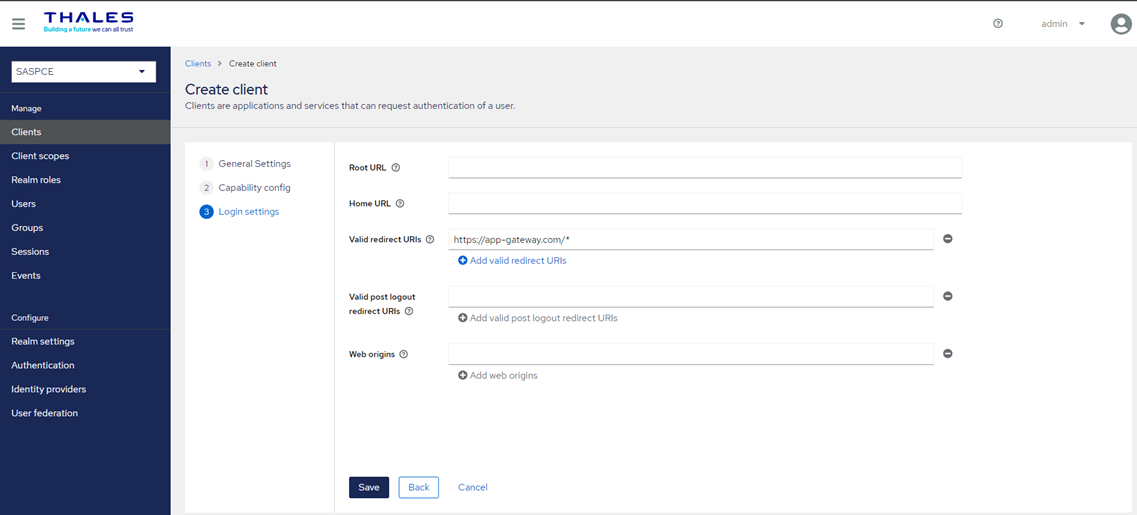

    3. Under Login settings, perform the following steps:

      • In the Valid Redirect URIs field, enter the App Gateway instance URL (for example, https://app-gateway.com/*).

      • Click Save to complete the client configuration.

      alt_text

Generating a Private Key and Selecting the Credentials Type for the Client

Under App-gateway, perform the following steps:

  1. Perform the following steps to generate a private key for the client:

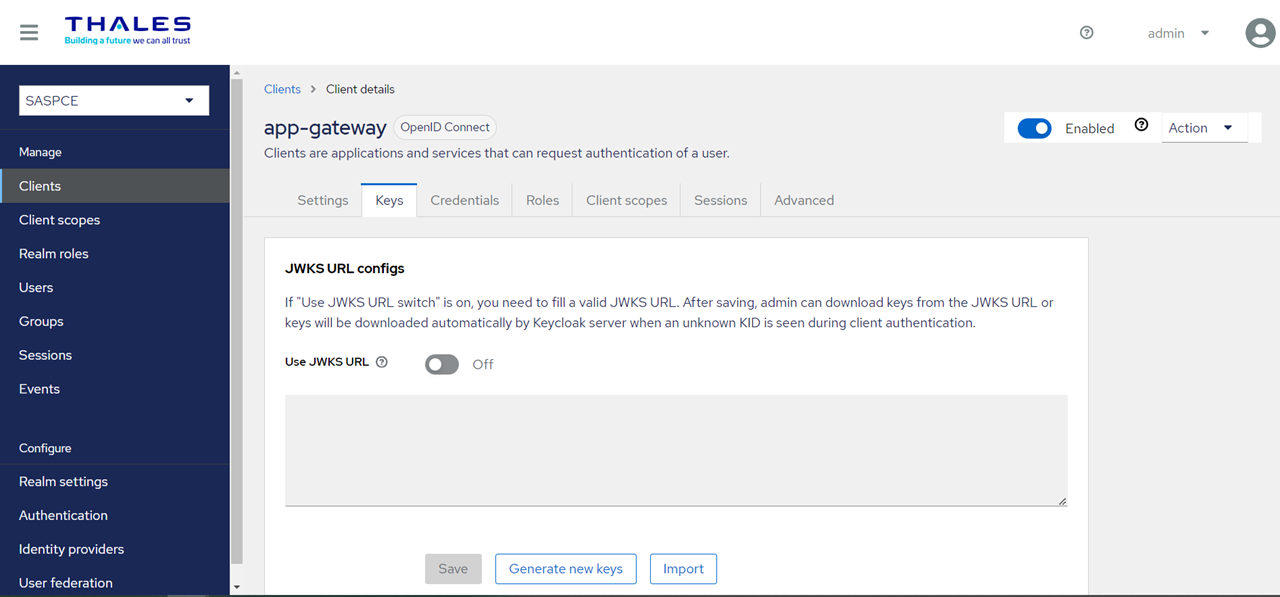

    1. Go to the Keys tab, and click Generate new keys.

      Default icon

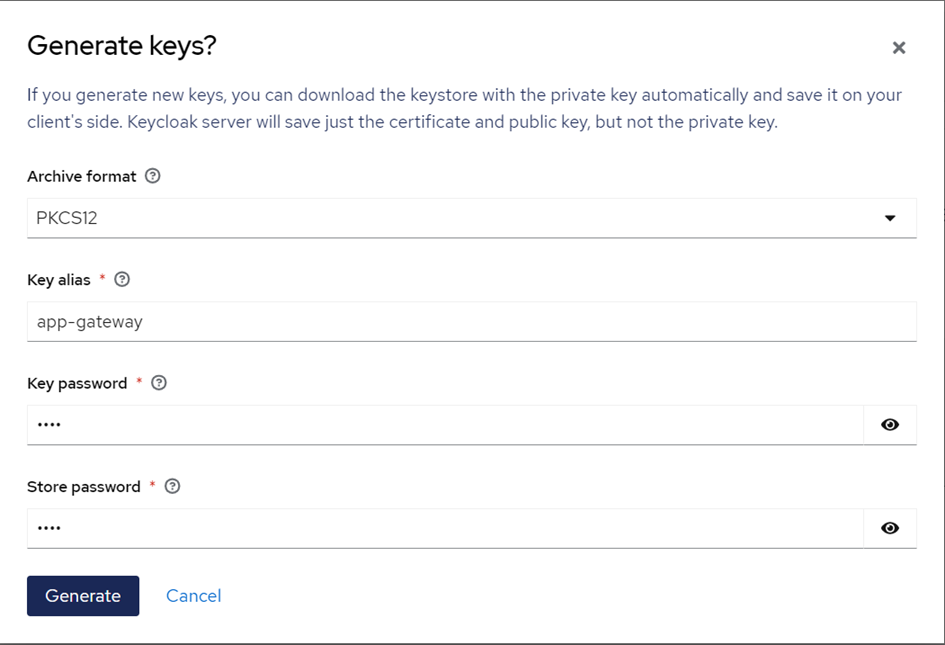

    2. Under Generate keys?, perform the following steps:

      • In the Archive format field, select PKCS12.

      • In the Key alias field, ensure that client ID is present (for example, app-gateway)

      • In the Key password field, enter a value as per your preferred configuration.

      • In the Store password field, enter a value as per your preferred configuration.

      • Click Generate. Your keystore.p12 file will be downloaded on your local machine. The keystore.p12 file contains the private key.

      Default icon

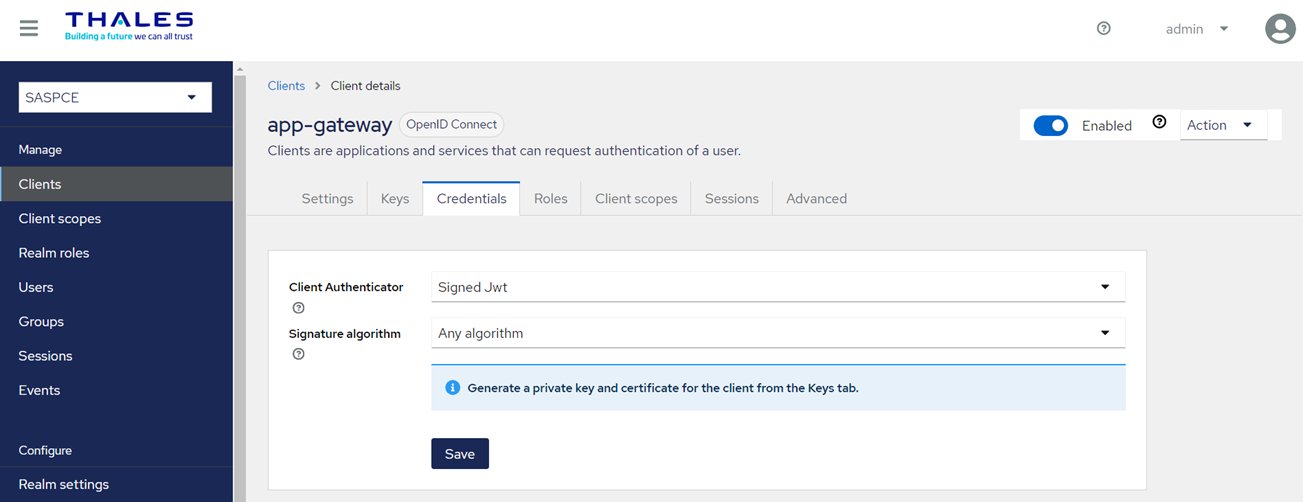

  2. Go to the Credentials tab and perform the following steps:

    1. In the Client Authenticator field, select Signed Jwt.

    2. Click Save.

      Default icon

  3. On an Ubuntu machine, run the following command to extract the RSA Private key from the keystore.p12 file:

    openssl pkcs12 -in keystore.p12 -nodes -nocerts | openssl rsa -out OUTFILE.key

Configuring and Uploading the Agent File

The Agent file (.agent) contains details of IdP (SAE) and non-SAML/OIDC web applications. Configuring the agent file requires:

Obtaining Values for the Agent File

Before configuring the Agent file, it is required to obtain certain values. Perform the following steps:

  1. Go to the administrator console of your SAE instance.

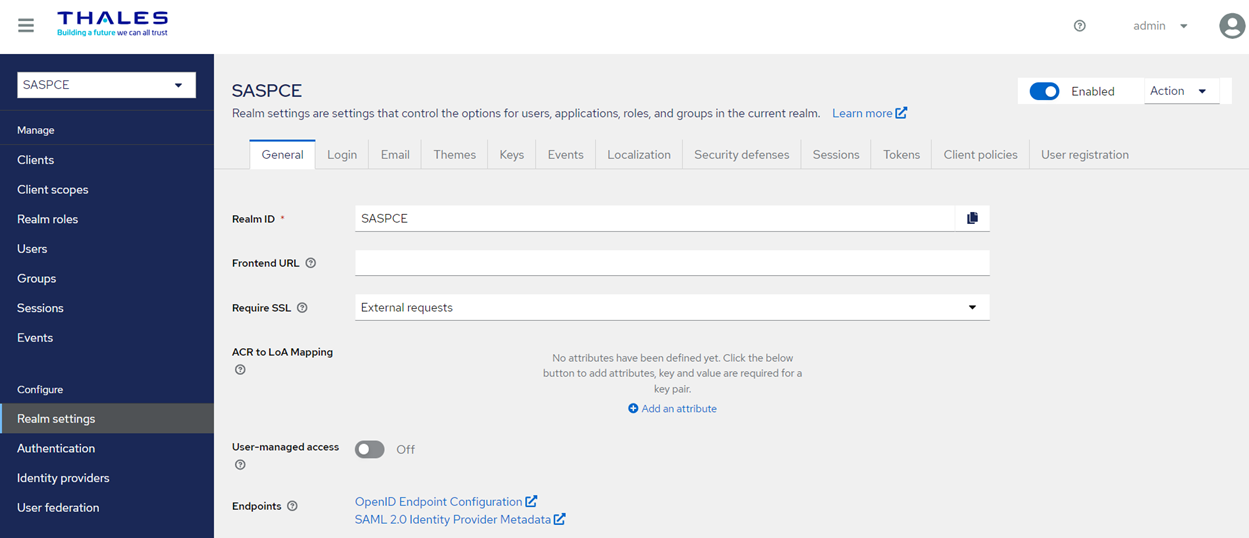

  2. In the left pane, under Configure, select Realm Settings, and in the right pane, on the General tab, perform the following steps:

    1. Copy the Realm ID field's value and paste it into a text editor.

    2. In the Endpoints field, click OpenID Endpoint Configuration, and you will be redirected to another window. Copy the Issuer URL and paste it into the text editor.

      Default icon

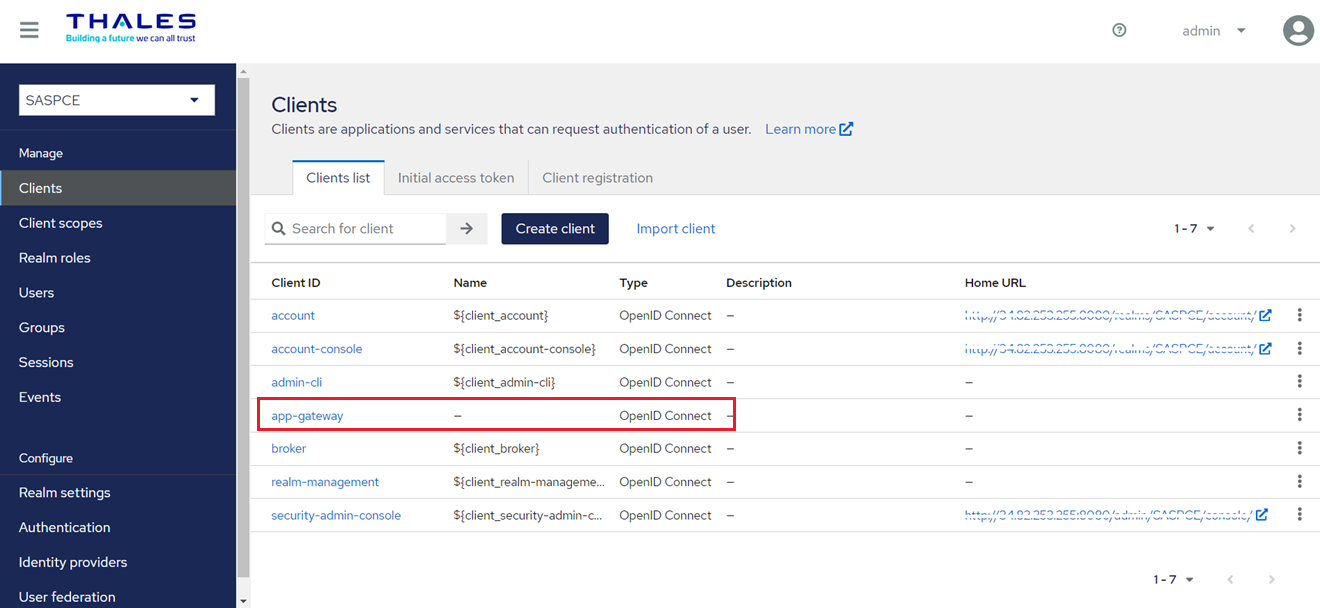

  3. In the left pane, click Clients, and copy the Client ID (for example, app-gateway) of the client you created earlier. Paste the value into the text editor. Default icon

Updating the Agent File

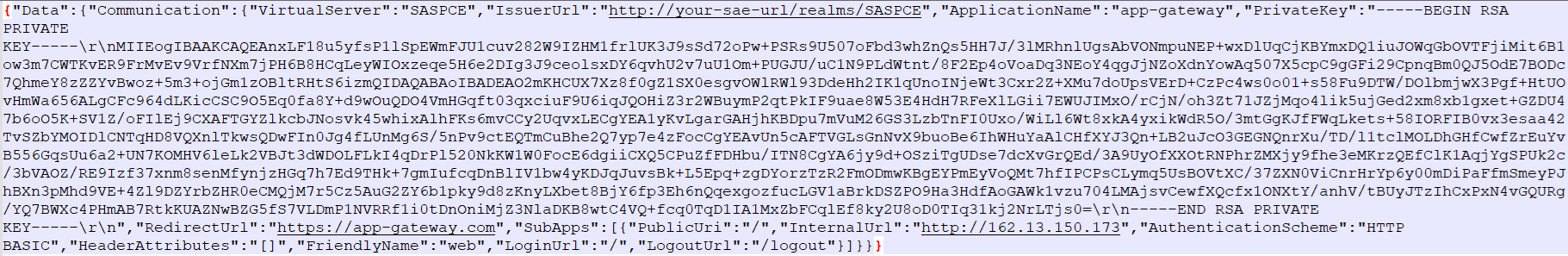

Perform the following steps to update the Agent file:

Default icon

  1. Open the .agent file in a text editor such as Notepad++.

  2. Next to the VirtualServer field, paste the Realm ID field’s value you obtained in step 2(a) of the Obtaining Values for the Agent File section.

    "VirtualServer":"SASPCE"

  3. Next to the IssuerUrl field, paste the Issuer URL you obtained in step 2(b) of the Obtaining Values for the Agent File section.

    "issuerurl":"http://your-sae-url/realms/SASPCE"

  4. Next to the ApplicationName field, paste the Client ID you obtained in step 3 of the Obtaining Values for the Agent File section.

    "ApplicationName":"app-gateway"

  5. Replace the value of PrivateKey with the key you retrieved in step 3 of Generating a Private Key for the Client.

    "PrivateKey":"-----BEGIN RSA PRIVATE KEY-----\r\nMIIEowIBAAKCAQEA19IMnQMjSYF5pCVYtceIUP+WhJpBETcXzfqYpPJV9MqDBVR4kzZpQaRWX29lTl0myQ4cVe4hkvvBcLoeAiWXXDIyc9z1VHdh4+cNgrWZwQf8cguyOsqLPuKx967IdPbaUKyTnJDf1Z89tG7mlw9hexiC/nwfNAi2JOv/WB0M4Z3r1x/01hNqe9Cz0qY+IvhDi6QbFYsJVMN7dU7UJJlk/hl87oAMGbi2W4ziYcRtC3Itr5BUR6wK51TSJbJN0CNLmMaBepgVDEKReYikhHYgxuOgJlUdIbAxkRGae9ww2hEwUfJTRLXlqt3qGKl1d1tpOWDjASgMuZCQSkb87o/1CwIDAQABAoIBADFnpbiJv9mzWH/BhuGyCBwWrkOztiJ1PK9L5waXbSLo+v5M3H9CrOy4bIdTTlsWiurqnoTzSt9FX35pNLZkGZai7RbF5alM3O1ZdqfN36EnLVyEHexEcoTWS0w6SCwyWD6wiugD6CGUXwE/g+zfuf5+WXpdOp1kQyIHnj/zAoBhBTYLnOQYrUMSsaAR7DnJBBKGMQqz9ywIxrJQwzYnmDdvFNqOXdyq7aeu/D/HJjH1SWlxMFHtTptJ0J8rIuI6T7C1cignkjJJwJeWQ/bJ+dBX15hrWryBupNniJD1pROF2Ak+DugDjaIfk7g3GjHK3BS4s3ve3/pdlWpjblZIy4UCgYEA8QDUErroH6qkdEkILzKz5FDKrL+29RJU8EnBM1WxoI32TUBX5SGsDo3QUc3OH5dI1ACTgPV0PYPKbgpT2lszEJ/pL0De1hsMjYWxcz7QKzrcwt1rYo/tumDS2O2uC+MJzlbxMvOuaACp2eOZ7DH72cR6HDea3chEuqwRdvlMiz0CgYEA5UAPnWmCCeKNmAsJg0JSqCbE7Xz21O1YDLEG85PktxFra8kHUqSpgCmY5wteMjN0sHdbmhzbc8speFYbVF5rWxPOVTocuNKvSBLzS7P3h/DLaBPWOw/0qnrjk3dUBFYIdO2q24fw+y7uRDRLvSnzZ0updEPz5KJQtbwXJ4PApecCgYAKX7PBPqRhQJIlo0Mj7PXLXSLsPrBcajaXxUT4tbaYp6OzfZKK/WEPm1EdRFOcDoIHBiNTSL2BLFwZUn57hrNzAr8h1pQA+VcX/GpAALMrOTRpeuh1bKaaADLzPX/haRtx81IclFqshWLKSz7D6P7jR87NyiLzavxyYJe73E1MLQKBgAyJdFEnc/UWbqfh8qM6/Uo01JAoRVdfo3EOPVMUw20/hqBeXggm+R4JKFN6S6xzI+6CmH/VFCtA8QOjsdrrTvOsIZyHkQqKewt1/dgl/2Nvx6/pZc3VEYxBLDDkVbPnAI9kb/ORe5xA9MbGFV5C7Qy5FotFLBFUzxUhNCL1EZQBAoGBAIPkOCe7XH03OWtiZZvYb3/ID5gdXJx9UHW/i7Ybqkl0a08Pew7B0bHzZDcURTxCT7S4eh4ClxscDEHv7aGNYxpBHhUdvCHfY4aG6UGyzEZ/cSH1yBTU7sbPBroRcZZsmTDM0GephjMm/D4o7C+0NugmEi9DC3Sd50+3ZhxT4wsn\r\n-----END RSA PRIVATE KEY-----\r\n

  6. Replace the value of RedirectUrl with the URL used for accessing SafeNet App Gateway (for example, https://app-gateway.com).

    "RedirectUrl":"https://app-gateway.com"

  7. Under SubApps, replace the values of the following fields with the information of the non-SAML/OIDC web application you want to secure:

    • PublicUri: Name of the non-SAML/OIDC web application.
    • InternalUrl: The URL where your non-SAML/OIDC web application is hosted.
    • AuthenticationScheme: Authentication type such as CUSTOM, HTTP BASIC, or FORM as per your application.
    • FriendlyName: Name of the non-SAML/OIDC web application.

    "SubApps":[{"PublicUri":"web","InternalUrl":"http://34.110.20.70","AuthenticationScheme":"HTTP BASIC","HeaderAttributes":"[]","FriendlyName":"web","LoginUrl":"/","LogoutUrl":"/logout"}]

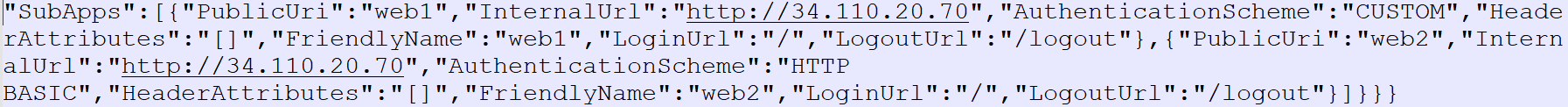

    To secure more than one application, you need to enter the details of each application under SubApps.
    Default icon

  8. Save the .agent file.

Uploading the Agent File

On the SafeNet App Gateway agent admin console, upload the .agent file you saved earlier.

Default icon
