Users
Users are the authenticated entities that make KMIP, REST or NAE-XML calls. To authenticate to the NAE-XML interface, you send an AuthRequest with the user credentials. To authenticate to the REST API, you POST the user credentials to an authentication endpoint, and receive an API token, which you can use in subsequent API calls.
Users can be managed locally, or through an LDAP connection, or through an OIDC connection.
The operations which users are allowed to perform are controlled through group membership.
Managing Users
Users can be created and managed through the web console, ksctl CLI, or REST API.
The legacy NAE-XML requests for user management are also supported, through the NAE-XML interface.
On launch, a single user exists, named "admin". This user can create, modify and delete other users. The user that is created in the ksctl
setup is this admin user; see CLI Installation.
The following options are available for managing users:
Create
Delete
Get a single record
List records
Modify
Note
You must set a
username
while creating a new user. It acts as the login credential for that user and cannot be changed. Theusername
is not case-sensitive and should not include "/", "|", "\", "<" , and ">" characters. Theusername
field cannot be named asglobal
.The
name
field is the full name of the user. It is optional and can be modified as required. Theuser_id
field is created by the server and is used to update the fields of the user. The format of theuser_id
field islocal|<UUID>
.

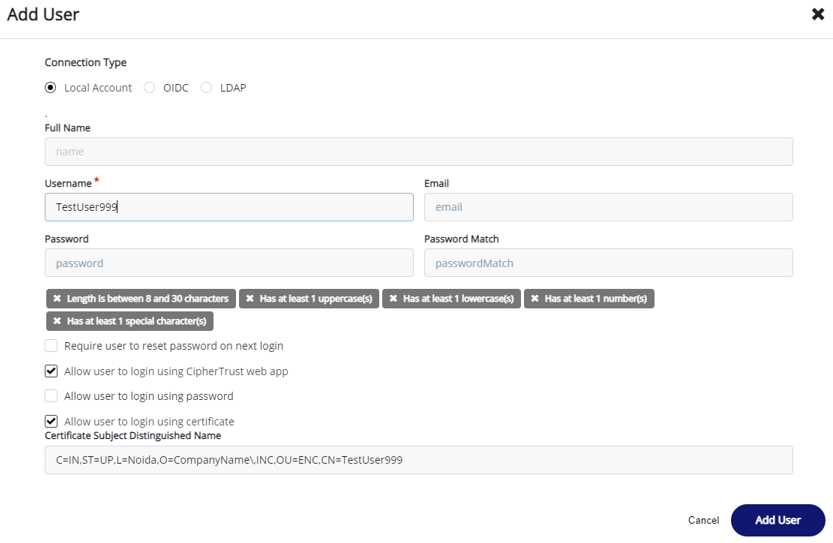

Creating a Local User through GUI
Perform the following steps to create a user through the GUI:
Navigate to Access Management > Users.
Click Add User available on the top right corner of the screen. The Add User screen appears.
Select the Connection Type to create a user:
Local Account - Select this option and specify the following:
Full Name
Username
Email
Password
Password Match
Note
You must adhere to the password policy while setting a password.
You can select the required checkbox to allow the user to log in using the web app, password, and/or certificate.
If you select the checkbox Allow user to login using certificate only, it enables the certificate based authentication for logging in to the CipherTrust Manager. Consequently, the user will be restricted to login using browser-based web certificates.
The Password and Password Match fields are optional, if user selects only Allow user to login using certificate option and enter Certificate Subject Distinguished Name
OIDC - Select this option and specify the following:
OIDC Connection
Name
Email
LDAP - Select this option and specify the following:
LDAP Connection
Name
Email
Click Create. A user is created and will appear in the list of users available on the Users page.
Creating a Local User through ksctl CLI
Use the below ksctl CLI to create a user named "bob":
ksctl users create --name bob --pword bob
The response looks like:
{
"created_at": "2022-01-24T06:53:27.245528Z",
"email": "bob@local",
"last_login": null,
"logins_count": 0,
"name": "bob",
"nickname": "bob",
"updated_at": "2022-01-24T06:53:27.245528Z",
"user_id": "local|c6537abe-a266-4833-9d60-b9713812136e",
"username": "bob",
"failed_logins_count": 0,
"account_lockout_at": null,
"failed_logins_initial_attempt_at": null,
"last_failed_login_at": null,
"password_changed_at": "2022-01-24T06:53:27.240767Z",
"password_change_required": false,
"certificate_subject_dn": "",
"enable_cert_auth": false,
"auth_domain": "00000000-0000-0000-0000-000000000000",
"login_flags": {
"prevent_ui_login": false
},
"allowed_auth_methods": [
"password"
]
}
Setting Expiration Date for Users
The expires_at
flag is added to set the expiration date for the local users to limit the user account to a certain period. This field is optional. After the expiration date has been reached, the access permissions for that user will be revoked. The user will no longer have access to the CipherTrust Manager. Only members of the admin and User Admins groups can add or modify the expiration date for an existing local user account. If the expiration date is extended or removed for an already expired account, the account will be active again.
Here are the examples of date-time format:
2002-10-02T10:00:00-05:00
2002-10-02T15:00:00Z
2002-10-02T15:00:00.05Z
The CipherTrust Manager throws an error if you set the expiration date before the current time. You can set the expiration date for both new users as well as existing users.
For new users
For new users, run:
Request example 1 (create user with valid date)
ksctl users create --name "john" --expires-at "2023-01-30T10:30:35.421799Z"
Response
{
"created_at": "2023-01-24T08:14:57.853232Z",
"email": "john@local",
"last_login": null,
"logins_count": 0,
"name": "john",
"nickname": "john",
"updated_at": "2023-01-24T08:14:57.853232Z",
"user_id": "local|c3209b29-0343-4a10-a9b6-bd5674580518",
"username": "john",
"failed_logins_count": 0,
"account_lockout_at": null,
"failed_logins_initial_attempt_at": null,
"last_failed_login_at": null,
"password_changed_at": "2023-01-24T08:14:57.833508Z",
"password_change_required": false,
"certificate_subject_dn": "",
"enable_cert_auth": false,
"auth_domain": "00000000-0000-0000-0000-000000000000",
"login_flags": {
"prevent_ui_login": false
},
"allowed_auth_methods": [
"password"
],
"expires_at": "2023-01-30T10:30:35Z",
"allowed_client_types": [
"unregistered",
"public",
"confidential"
]
}
Request example 2 (create user with expiration date before the current time)
ksctl users create --name "james" --expires-at "2021-01-30T10:30:35.421799Z"
Response
{
"code": 9,
"codeDesc": "NCERRInvalidParamValue",
"message": "expires_at cannot be before current time"
}
For existing users
For existing users, run:
Request example 1 (modify user with valid date)
ksctl users modify --id "local|c3209b29-0343-4a10-a9b6-bd5674580518" --expires-at "2023-01-28T10:30:35.421799Z"
Response
{
"created_at": "2023-01-24T08:18:57.929628Z",
"email": "john@local",
"last_login": null,
"logins_count": 0,
"name": "john",
"nickname": "john",
"updated_at": "2023-01-24T08:18:57.929628Z",
"user_id": "local|c3209b29-0343-4a10-a9b6-bd5674580518",
"username": "john",
"failed_logins_count": 0,
"account_lockout_at": null,
"failed_logins_initial_attempt_at": null,
"last_failed_login_at": null,
"password_changed_at": "2023-01-24T08:18:57.915523Z",
"password_change_required": false,
"certificate_subject_dn": "",
"enable_cert_auth": false,
"login_flags": {
"prevent_ui_login": false
},
"allowed_auth_methods": [
"password"
],
"expires_at": "2023-01-28T10:30:35Z",
"allowed_client_types": [
"unregistered",
"public",
"confidential"
]
}
Request example 2 (modify user with invalid date)
ksctl users modify --id "local|cdb01da2-56d1-4d30-8c8a-4cc73a684b2a" --expires-at "1-01-2023"
Response
Invalid date format for Expiry date: parsing time "1-01-2023" as "2006-01-02T15:04:05Z07:00": cannot parse "-2023" as "2006"
Managing Allowed Client Types for Users
The allowed_client_types
flag is added to manage the list of client types that are allowed to authenticate the users through their credentials. This field is optional.
By default, the CipherTrust Manager allows all clients types:
unregistered clients - are not registered with the CipherTrust Manager.
public clients - are ksctl, NAE, Web-UI, and API playground. These clients are pre-registered with the CipherTrust Manager.
confidential clients - are able to securely authenticate with the CipherTrust Manager. For example, NAE, KMIP, and CTE clients.
If you set the allowed_client_types
flag to empty, no client can authenticate the user to log on to the CipherTrust Manager.
You can set any combination of client types based on your requirements.
Note
The allowed_client_types
property is not enforced on admin users.
Example Request
ksctl users create --username chanakya --pword KeySecure_1 --allowed-client-types confidential,public
Example Response
{
"created_at": "2022-12-05T13:29:29.325474Z",
"email": "chanakya@local",
"last_login": null,
"logins_count": 0,
"name": "chanakya",
"nickname": "chanakya",
"updated_at": "2022-12-05T13:29:29.325474Z",
"user_id": "local|726720ee-c597-4582-92c0-31f2c2f53947",
"username": "chanakya",
"failed_logins_count": 0,
"account_lockout_at": null,
"failed_logins_initial_attempt_at": null,
"last_failed_login_at": null,
"password_changed_at": "2022-12-05T13:29:29.321738Z",
"password_change_required": false,
"certificate_subject_dn": "",
"enable_cert_auth": false,
"auth_domain": "00000000-0000-0000-0000-000000000000",
"login_flags": {
"prevent_ui_login": false
},
"allowed_auth_methods": [
"password"
],
"allowed_client_types": [
"confidential",
"public"
]
}
Managing Login Authentication Methods for Local Users
The CipherTrust Manager allows you to manage login authentication methods for local users using the allowed_auth_methods
parameter. By default, this property is set to password
that is, password-based authentication.
Note
Certificate-based authentication for local users requires additional configuration
The allowed login authentication methods are:
"password" : Only password-based authentication. This is the default authentication method.
"" : Setting it to empty means no authentication method is allowed to the user.
"user_certificate" : Only user-certificate based authentication.
"password", "user_certificate" : Either of the authentication method is allowed.
"password_with_user_certificate" : Both password and user certificate are required for the two-factor authentication and the value of the
certificate_subject_dn
flag should be set while creating the user.
Note
The
password_with_user_certificate
method overrides any existing value inallowed_auth_methods
.Password is optional when certificate-based authentication is enabled and certificate subject dn is provided while creating the user
The allowed authentication methods are not enforced on admin users.
If both
enable_cert_auth
andallowed_auth_methods
parameters are provided in the request, theenable_cert_auth
parameter is ignored.
Example Request 1 (Using password,user_certificate
)
ksctl users create --username chandragupta --pword KeySecure_1 --allowed-auth-methods password,user_certificate
Example Response
{
"created_at": "2022-12-05T13:27:47.317746Z",
"email": "chandragupta@local",
"last_login": null,
"logins_count": 0,
"name": "chandragupta",
"nickname": "chandragupta",
"updated_at": "2022-12-05T13:27:47.317746Z",
"user_id": "local|d099eb70-e6fe-4a87-8e6e-49ff4ac93fb4",
"username": "chandragupta",
"failed_logins_count": 0,
"account_lockout_at": null,
"failed_logins_initial_attempt_at": null,
"last_failed_login_at": null,
"password_changed_at": "2022-12-05T13:27:47.314971Z",
"password_change_required": false,
"certificate_subject_dn": "",
"enable_cert_auth": true,
"auth_domain": "00000000-0000-0000-0000-000000000000",
"login_flags": {
"prevent_ui_login": false
},
"allowed_auth_methods": [
"password",
"user_certificate"
],
"allowed_client_types": [
"unregistered",
"public",
"confidential"
]
}
Example Request 2 (setting empty)
ksctl users create --username yum --pword KeySecure_1 --allowed-auth-methods ""
Example Response
{
"created_at": "2023-02-03T07:08:37.308092Z",
"email": "yum@local",
"last_login": null,
"logins_count": 0,
"name": "yum",
"nickname": "yum",
"updated_at": "2023-02-03T07:08:37.308092Z",
"user_id": "local|10244efe-afdc-4759-b9e0-ea6144f7e843",
"username": "yum",
"failed_logins_count": 0,
"account_lockout_at": null,
"failed_logins_initial_attempt_at": null,
"last_failed_login_at": null,
"password_changed_at": "2023-02-03T07:08:37.292784Z",
"password_change_required": false,
"certificate_subject_dn": "",
"enable_cert_auth": false,
"auth_domain": "00000000-0000-0000-0000-000000000000",
"login_flags": {
"prevent_ui_login": false
},
"allowed_auth_methods": [],
"allowed_client_types": [
"unregistered",
"public",
"confidential"
]
}

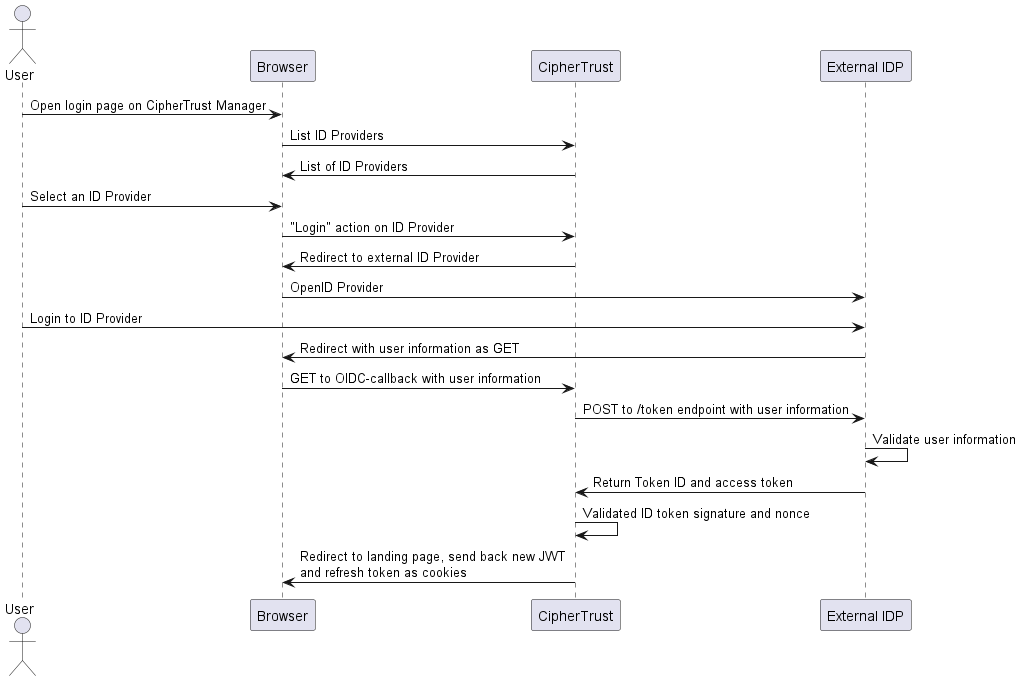

Manually Creating LDAP or OIDC Users
CipherTrust Manager can integrate with external authentication and identity providers using LDAP or OIDC protocols.
After you configure an LDAP or OIDC connection, by default logging in with the associated users for the first time automatically creates matching CipherTrust Manager user accounts. However, you can also manually create these CipherTrust Manager user accounts prior to first login. As well, there a connection setting called Disable Automatic Creation of a User which disables this default behavior and enforces that OIDC or LDAP users are manually created on CipherTrust Manager before first login.
Provide the --userconnection
parameter to the ksctl users create
to specify an LDAP or OIDC connection.
For example:
ksctl users create --name bob --pword bob --userconnection LDAP-connection
Managing Users in Domain
The CipherTrust Manager allows you to create users in a non-root domain if you set the allow-user-mgmt
property to true
while creating the domain.
Before proceeding to the next steps, we recommend you to get familiar with the following terms:
auth_domain - The
auth_domain
is a domain where the user is created and authenticated during login. Theauth_domain
is represented by the Home Domain field on the CipherTrust Manager GUI.If a user is created in a domain named 'Dom1', the
auth_domain
for that user will be 'Dom1'. However, if a user is created in a root domain and assigned to 'Dom1', the defaultauth_domain
for that user will always remain asroot
.Target domain - The target domain is represented by the
domain
field on CLI and API.Assigned users - Users assigned from the root domain to any non-root domain. For assigned users, the
auth_domain
is alwaysroot
. By default, if theauth_domain
is not provided, it is assumed to beroot
.Non-root domain - Domains other than the root domain.
Login/Token Creation
For login/token creation, the domain users need to pass auth_domain
with username and password.
To log on to the GUI as a domain user:
Select the I am a domain user check box.
Specify your native domain in the Home Domain field.
Click Log In.
The domain users are always redirected to their home domain. However, when assigned users log on to the CipherTrust Manager GUI for the first time, they are redirected to the root domain. Next time onward, after login, these users are redirected to their last logged-in domain on the GUI.
To switch between the domains, refer to GUI.
To create a user within a non-root domain, set the is_domain_user
property to true
.
Note
While creating a domain, users created in the non-root domain cannot be added to the domains admin's list.
Users created in the non-root domain cannot be assigned to any other domain.
Certificate-based login does not work for the users created in the non-root domain.
OIDC and LDAP authentication are only supported for users created in the root domain. If a user is created in a root domain and later assigned to an additional domain, LDAP and OIDC authentication is available for login to the root domain, and after login the user can switch to a non-root domain. For OIDC authentication, the user manually logs into the root domain and then manually switches to a non-root domain in two steps. For LDAP authentication, the user can login to the root domain and switch into a non-root domain in a single step as described below.
Preventing Users from UI Login
The CipherTrust Manager allows you to prevent the UI login for users if you set the prevent_ui_login
property to true
while creating the user. By default, this property is set to false
.
You can change the value of prevent_ui_login
property while updating the user.
Configuring LDAP Authentication
Note
This feature is not included in Community Edition and requires a valid Virtual CipherTrust Manager license. To activate your instance with a trial evaluation, or a term or perpetual license, see Licensing.
The CipherTrust Manager authenticates users against its internal database and also provides an option to authenticate with an external authentication provider (LDAP). It is possible to have a mix of both local and LDAP users.
Overview
When LDAP is configured the users and credentials are located in an external LDAP server and CipherTrust Manager acts as a forwarder to the LDAP server.
By default, the first time a new LDAP user is successfully authenticated, a corresponding user account is stored in the CipherTrust Manager root domain and is marked to belong to the respective LDAP connection. You can also create user accounts for LDAP users prior to authentication in the root domain. Only users created in the root domain can use LDAP authentication. Users that belong to additional domains can login to the root domain and switch into a non-root domain in a single step as described below.
There is an LDAP connection setting called Disable Automatic Creation of a User which disables this default behavior and enforces that LDAP users are manually created on CipherTrust Manager before first login.
All CipherTrust Manager user accounts associated with a LDAP connection are deleted when the LDAP connection is deleted from the CipherTrust Manager.
To authenticate users against LDAP, it is required to configure an LDAP connection in the CipherTrust Manager. Only CipherTrust Manager users with administrator privilege are authorized to configure LDAP connections. It is possible to configure LDAP connections through either the REST API, the CLI or the GUI.
You can also configure the LDAPS protocol, which uses certificate authentication to secure the connection. With LDAPS connections, CipherTrust Manager verifies presented LDAP server certificates, by default using the operating system trust store. You cannot edit the trust store, but it contains wide coverage of major well-known certificate authorities (CAs). Alternatively, you can directly provide root certificate authorities to trust, which is recommended if the LDAPS connection is secured by a lesser-known root CA or a self-signed certificate. You can also disable server certificate verification entirely, for troubleshooting purposes. A minimum version of TLS 1.1 is required to support LDAPS. TLS versions are configurable at the interface level.
Setting Up a New LDAP Connection
Using either the CLI or the GUI it is possible to test a connection, create a new connection, get a list of connections, modify a connection, and delete a connection.
Note
The LDAP connection available through Access Management described here is separate and additional to the LDAP connection available through connection manager.
Required fields for LDAP connection
name
- Unique identifier for the connection and commonly referred to as the domain, for example myco.server-url
- Hostname and port of the LDAP server, for example ldap://192.168.0.1:389. You can enable LDAPS protocol withldaps
. There are options to specify how the LDAP server certificate is verified.root-dn
- The base DN as the starting point for the search, for example DC=myco,DC=local.uid-field
- The field containing the user's login name, for example uid.
Fields for Groupmaps for LDAP Connection
You can optionally set up groupmaps for an LDAP connection. All of the following fields are required for groupmap configuration:
bind-dn
- If authentication is required to perform search this is the name of the entity to bind to, for example CN=poweruser,CN=Users,DC=myco,DC=local.bind-password
- Password of the user provided inbind-dn
.If
bind-dn
andbind-pass
fields are not provided, the LDAP search will be performed using the 'end user provided' user id and password.group-base-dn
- Starting point to use when searching for groups.group-id-field
- The field that contains the group name, for example 'cn'. Ifgroup-id-field
is not provided, it will default to whatever is inuid-field
.group-filter
- Search filter for listing groups. Ifgroup-filter
is not provided, it will default to "(objectclass=Group)".group-member-field
- The field which contains a user's group membership information, for example 'member'. Ifgroup-member-field
is not provided, it will default to 'member'.
Optional field for LDAP connection
guid-field
- The LDAP field name of a globally unique identifier for the group. If this is not specified, the value the LDAP server usesuid-field
instead. However, onuid_field
update,guid_field
does not update automatically.search-filter
- Optional LDAP search filter which can further restrict the set of users who will be allowed to log in, for example memberOf="CN=example,OU=Users,DC=myco,DC=local".disable-auto-create
- When set totrue
, disables the default automatic creation of a CipherTrust Manager user when the user logs in via LDAP. Disallows an unknown user from logging in. Enforces that a member of the admin or User Admins group must manually create a CipherTrust Manager user before the user can log in.
Optional fields for LDAPS connections
The following options are ignored for LDAP connections, which have the ldap
protocol in the server-url
and send traffic in cleartext.
insecure-skip-verify
- When set totrue
, this option disables CipherTrust Manager's verification of the LDAP server certificate.Caution
Setting to
true
lowers the security of the connection and can disrupt LDAPS connection availability, and so is only recommended for troubleshooting purposes.root-cas
- This field can contain a list of root CAs for CipherTrust Manager to verify the LDAP server certificate. The provided root CAs are used instead of the operating system trust store to verify the LDAP server certificate. Root CAs must be in PEM encoded format.
Once a connection is created, it is not possible to modify these fields: name
, strategy
or bind-pass
.
CLI command example
Test the connection configuration to verify it can authenticate one of the LDAP users.
ksctl connections test --test-username=jdoe --test-password=ji32k7au4a83 --name=myco --strategy=ldap --server-url="ldap://192.168.0.1:389" --user-id-field=uid --root-dn="DC=myco,DC=local" --search-filter="(memberOf=CN=example,OU=Users,DC=myco,DC=local")
Create the connection configuration.
ksctl connections create ldap --name=myco --server-url="ldap://192.168.0.1:389" --user-id-field=uid --root-dn="DC=myco,DC=local" --search-filter="(memberOf=CN=example,OU=Users,DC=myco,DC=local")
Logging in a User with LDAP Authentication
Each LDAP connection is given a name that needs to be known by the end user and be provided during authentication; this is often referred to as the domain. For example, if a user joe exists in the LDAP directory ldap://192.168.0.1:389 and this LDAP server is created in CipherTrust Manager with the name myco, the end user would have to authenticate with either myco\joe, myco/joe or myco|joe in the GUI. On the CLI, you would instead specify the name of the connection as a separate parameter.
LDAP authentication also works through NAE-XML. The connection and/or username can be specified in following formats:
ldap-connection|username
- An LDAP user in the root domain. For example, ldap-connection|joe.domain-id|ldap-connection|username
- An LDAP user in a specific domain. For example, domain-id|ldap-connection|joe.Note
The user must be created in the root domain and assigned to additional domains to successfully login with this syntax.
When browsing the GUI, LDAP users can be identified from the source property. The user is displayed in either of the formats listed above. A local user is displayed as local|<username>
Configuring OpenID Connect (OIDC) Authentication
Note
This feature is not included in Community Edition and requires a valid Virtual CipherTrust Manager license. To activate your instance with a trial evaluation, or a term or perpetual license, see Licensing.
CipherTrust Manager supports OpenID Connect as an external identity provider for CipherTrust Manager user login, using either implicit flow with form post or authorization code flow.
Note
The OIDC connection to authenticate CipherTrust Manager users is separate from the OIDC connection to authenticate CTE agents, which is configured through connection manager.
The following sequence diagram demonstrates how with implicit flow, browser login through the CipherTrust Manager GUI returns an access token from an external identity provider.
The following sequence diagram demonstrates how with authorization code flow, browser login through the CipherTrust Manager GUI returns an access token from an external identity provider.
Users are created on the external identity provider. To set up authentication for these users and allow them to access CipherTrust Manager and perform operations, there are three stages:
Configure the connection between CipherTrust Manager and the identity provider.
You need access rights on the identity provider to create an application and assign users to it, and Admin level access to the CipherTrust Manager to configure the connection details.
Create a user account on CipherTrust Manager for a user of the application in the root domain. Alternatively, logging in to CipherTrust Manager as a user of the application automatically creates a user account visible on CipherTrust Manager root domain.
Note
OIDC-authenticated users must be created in the root domain. They can later be assigned to additional non-root domains.
As a CipherTrust Manager assign the user account to groups and domains to allow the desired operations, or create a group map to associate the OIDC group membership to CipherTrust Manager groups.
Supported Flows, Scopes, and Claims
Supported flows:
Implicit flow with form post
Authorization code flow
Requested scope:
scope=openid email profile
Requested type:
response_type=id_token
for implicit flowresponse_type=code
for authorization code flow
Requested mode:
response_mode=form_post
for implicit flowresponse_mode=query
for authorization code flow
The following standard claims are required to be returned by the external identity provider:
sub
: used as the user ID
The following standard claims are optional and will be used if returned by the external identity provider:
name
: used as the "name" property of a user. If missing it falls back to user ID (which effectively meanssub
).email
: used as the "email" property of a user. If missing it is empty.
To read more about standard scopes:
https://openid.net/specs/openid-connect-core-1_0.html#ScopeClaims
To read more about standard claims:
https://openid.net/specs/openid-connect-core-1_0.html#StandardClaims
To configure an identity provider connection
Create a client application on the identity provider to service user logins.
Ensure the application is set to either implicit or authorization code flow and provide the redirect URI in the format
https://<ciphertrust-hostname>/api/v1/auth/oidc-callback
. If you have a CipherTrust Manager cluster, provide one redirect URI for each node. For example, providehttps://<node1-hostname>/api/v1/auth/oidc-callback
andhttps://<node2-hostname>/api/v1/auth/oidc-callback
for two CipherTrust Manager nodes.Assign users to your application that correspond to desired CipherTrust Manager users.
If desired, you can set a user identity claim for group membership, so that CipherTrust Manager can map OIDC user group membership in the OIDC application to a local CipherTrust Manager group when the user logs in to CipherTrust Manager. CipherTrust Manager uses
groups
as the default claim field name.After creating the application, you need to collect the following values from the identity provider:
Client ID: The client identifier of CipherTrust Manager on the identity provider.
Discovery URI: This location contains detailed settings for CipherTrust Manager to construct a login request to the identity provider, such as authorization URI and public signing keys. This is also called "well known configuration URL" in some identity providers.
Client Secret: Needed for Authorization Code Flow only. The identity provider requires this value in the login request to validate. This is sensitive information, so record it in a secure manner.
If you set up a user identity claim for group membership in the last step, and the claim field name is different than
groups
, collect the claim field name as well.
On CipherTrust Manager as an Admin with permission to edit connections, create the OIDC connection. provide the client ID, redirect URI, and discovery URI. Give the connection a name to display during user login.
For authentication code flow, set the
flow-type
toauthorization_code
and provide the client secret as well.Note
flow-type
defaults toimplicit
and so does not need to be set for implicit flow connections.By default, the connection is set up to allow, but not require, group mapping with the user claim field
groups
in the access token. If the identity provider uses a claim field other thangroups
, include the option--groups-claim
, and provide the claim field name for group membership present in the access token.Implicit flow, no custom groups claim field:
ksctl connections create oidc --name '<desired_name>' --client-id <client_id_from_identity_provider> --redirect-uris <ciphertrust_hostname>/api/v1/auth/oidc-callback --discovery-uri <discovery_uri_from identity_provider>
Authorization code flow, no custom groups claim field:
ksctl connections create oidc --name '<desired_name>' --client-id <client_id_from_identity_provider> --redirect-uris <ciphertrust_hostname>/api/v1/auth/oidc-callback --discovery-uri <discovery_uri_from identity_provider> --client-secret <client_secret_value> --flow-type authorization_code
Group mapping to a non-default claim field name, with implicit flow:
ksctl connections create oidc --name '<desired_name>' --client-id <client_id_from_identity_provider> --redirect-uris <ciphertrust_hostname>/api/v1/auth/oidc-callback --discovery-uri <discovery_uri_from_identity_provider> --groups-claim <claim_field_name>
Note
You can provide multiple redirect URIs by repeating the
redirect-uris
parameter. For example--redirect-uris https://node1.com/api/v1/auth/oidc-callback --redirect-uris https://node2.com/api/v1/auth/oidc-callback
.Note
If you do not provide a discovery URI, the following values must be provided instead. These settings are recommended for testing scenarios only. Discovery URI is strongly recommended for production usage of OIDC.
authorization-uri
: Authorization endpoint for the identity provider.jwks
: Public signing keys to validate the ID token.
There is an additional optional test parameter for authorization code flow:
token-endpoint
: Token endpoint for the identity provider, for authorization code flow only.
Note
There is an option,
disable-auto-create
. When set totrue
, disables the default automatic creation of a CipherTrust Manager user when the user logs in via OIDC. Disallows an unknown user from logging in. Enforces that a member of the admin or User Admins group must manually create a CipherTrust Manager user before the user can log in.Network Time Protocol (NTP) configuration is very important for successful OIDC authentication. Ensure that an NTP server is configured for CipherTrust Manager.
To login a user with OIDC authentication
A user can login to the identity provider through the CipherTrust Manager web console to the root domain.
On the login page, select a registered identity provider from the Identity Providers dropdown.
Note
Any username or password entered from the CipherTrust Manager login page is ignored. CipherTrust Manager-level username/password authentication and OIDC authentication are mutually exclusive.
You are redirected to the identity provider's login page. At this point, enter your credentials.
Note
Sometimes your browser caches the previously logged in OIDC-authenticated user. Clear your browser cache if you want to login a different user through the OIDC flow.
After authentication with the identity provider succeeds, you are redirected back to the CipherTrust Manager web console.
To view, edit, and assign permissions to an OIDC-authenticated user
By default, once the user logs into CipherTrust Manager at least once, a user account is created in CipherTrust Manager with the OIDC connection name displayed as the source. You can also create a CipherTrust Manager user account manually prior to first login.
There is an OIDC connection setting called Disable Automatic Creation of a User which disables this default behavior and enforces that OIDC users are manually created on CipherTrust Manager before first login.
CipherTrust Manager administrators can control the allowed operations for the user with group and domain assignment in the same way as with local users. If the OIDC connection has a group claim configured, administrators can configure group maps to associate a group on the OIDC server to a local CipherTrust Manager group, which are applied when the user logs in.
Deleting an OIDC user on CipherTrust Manager removes those CipherTrust Manager permissions associated with the user. However, the user can still login to CipherTrust Manager as long as that user is still assigned to the application on the identity provider. The user must be deleted or unassigned at the identity provider application to completely remove any access to CipherTrust Manager.
