BIND DNSSEC

Set up Luna HSM

Configure OpenSSL to use the PKCS#11 provider

Install and configure ISC BIND

Set up and initialize the Luna HSM according to the Luna HSM documentation, and ensure that it is provisioned and reachable from the system running BIND.

Create a dedicated partition on the Luna HSM that will be used by ISC BIND to store DNSSEC private keys.

If you are using a Luna Network HSM, create and exchange certificates between the HSM and the BIND system, register the BIND host as a client, and assign it to the BIND partition to establish an NTLS connection. Initialize the Crypto Officer (CO) and Crypto User (CU) roles for the partition.

Run the following command from the BIND system to verify that the Luna client is connected and that the assigned HSM slot is visible:

 /usr/safenet/lunaclient/bin/lunacm

When the connection is successful, the Luna client displays the available HSM slots and partition information. The following is an example of the output you should see:

lunacm (64-bit) v10.7.2-16. Copyright (c) 2024 Thales Group. All rights reserved.

Available HSMs:

Slot Id ->                           0
Label ->                             TPA01
Serial Number ->                     1280780175918
Model ->                             LunaSA 7.8.4
Firmware Version ->                  7.8.4
Bootloader Version ->                1.1.5
Configuration ->                     Luna User Partition With SO (PW) Key
                                      Export With Cloning Mode
Slot Description ->                  Net Token Slot
FM HW Status ->                      Non-FM

Current Slot Id:                     0

Confirm that the assigned partition appears in the slot list and can be accessed using the Crypto User credentials.

If you are using a PED-authenticated Luna HSM, enable partition policies 22 and 23 to allow activation and auto-activation of the BIND partition.

Refer to the Luna HSM documentation on thalesdocs.com for detailed procedures on NTLS setup, partition creation, and user role management.

Ensure that you possess sudo privileges on the client workstation.

Add a user to the hsmusers group using the command:

sudo gpasswd --add [username] hsmusers

Replace username with the actual username you want to include in the hsmusers group.

Confirm that you hold sudo privileges on the client workstation.

Eliminate a user from the hsmusers group using the command:

sudo gpasswd --add [username] hsmusers

Replace username with the specific username you want to exclude from the hsmusers group. To observe the changes, you will need to log in again.

Any user you remove will retain access to the HSM device until the client workstation is rebooted.

Ensure that OpenSSL version 3.x is available on the system. If OpenSSL 3.x is not installed, download it from the official OpenSSL repository:

wget https://github.com/openssl/openssl/releases/download/openssl-3.2.2/openssl-3.2.2.tar.gz

Extract the archive, build, and install OpenSSL:

tar -zxf openssl-3.2.2.tar.gz
cd openssl-3.2.2/
./Configure --prefix=/usr/local
make
make install

Download the OpenSSL PKCS#11 provider from the official GitHub repository:

wget https://github.com/latchset/pkcs11-provider/releases/download/v1.1.0/pkcs11-provider-1.1.tar.xz

Extract the archive and prepare the build directory:

tar -xf pkcs11-provider-1.1.tar.xz
cd pkcs11-provider-1.1/
meson setup builddir

If OpenSSL is installed in a non-default location, set the PKG_CONFIG_PATH environment variable and re-run the Meson setup:

PKG_CONFIG_PATH="/usr/local/lib64/pkgconfig" meson setup builddir

Build, test, and install the PKCS#11 provider:

meson compile -C builddir
meson test -C builddir
meson install -C builddir

Verify that the PKCS#11 provider module has been installed:

ls -ltr /usr/local/lib64/ossl-modules/pkcs11.so

Locate the OpenSSL configuration directory:

openssl version -d

Edit the openssl.cnf file in the displayed directory and add the following configuration entries:

openssl_conf = openssl_init

[openssl_init]
providers = provider_sect

[provider_sect]
default = default_sect
pkcs11 = pkcs11_sect

[default_sect]
activate = 1

[pkcs11_sect]
pkcs11-module-path = /usr/safenet/lunaclient/lib/libCryptoki2_64.so
pkcs11-module-quirks = no-operation-state
activate = 1

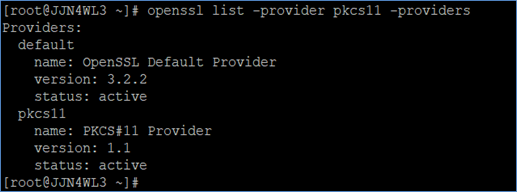

Verify that OpenSSL successfully loads the PKCS#11 provider:

openssl list -provider pkcs11 -providers

Obtain the required ISC BIND packages from the official ISC repository.

Review the official ISC BIND documentation for detailed build and configuration guidance.

Install the required build dependencies:

dnf install perl pkgconfig libxml2 userspace-rcu-devel libuv-devel libcap-devel jemalloc-devel libnghttp2-devel

Download the ISC BIND source package:

wget https://downloads.isc.org/isc/bind9/9.20.12/bind-9.20.12.tar.xz

Extract the archive and change to the source directory:

tar -xf bind-9.20.12.tar.xz
cd bind-9.20.12/

Configure, build, and install ISC BIND:

./configure --prefix=/usr/local --sysconfdir=/etc --localstatedir=/var --with-openssl=/usr/local
make
make install

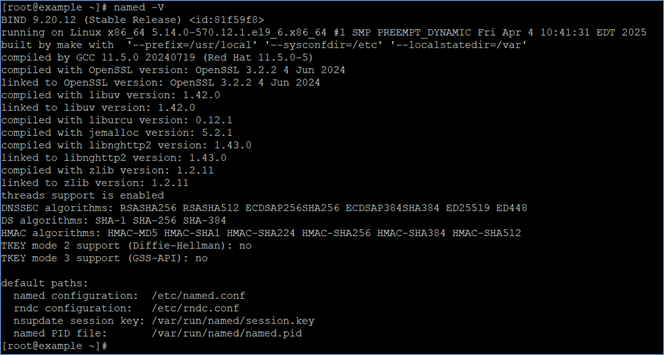

Verify that ISC BIND was installed successfully:

named -v

Navigate to the BIND working directory:

cd /var/named

Create a sample authoritative DNS zone file named master.luna-bind-example.com:

$TTL 1d
$ORIGIN luna-bind-example.com.
@       IN      SOA     ns1.luna-bind-example.com. root.luna-bind-example.com. (
        2002022401
        3H
        15M
        1W
        2h30M
        )
@       IN      NS      ns1.luna-bind-example.com.
@       IN      A       127.0.0.1
ns1     IN      A       127.0.0.1
www     IN      A       127.0.0.1

Edit the BIND configuration file located at /etc/named.conf and add the zone definition:

options {
        listen-on port 53 { 127.0.0.1; };
        listen-on-v6 port 53 { ::1; };
        directory       "/var/named";
        dump-file       "/var/named/data/cache_dump.db";
        statistics-file "/var/named/data/named_stats.txt";
        memstatistics-file "/var/named/data/named_mem_stats.txt";
        secroots-file   "/var/named/data/named.secroots";
        recursing-file  "/var/named/data/named.recursing";
        allow-query     { localhost; };

        recursion yes;
        dnssec-validation yes;
        managed-keys-directory "/var/named/dynamic";
        pid-file "/run/named/named.pid";
        session-keyfile "/run/named/session.key";

        include "/etc/crypto-policies/back-ends/bind.config";
};

zone "." IN {
        type hint;
        file "named.ca";
};

zone "luna-bind-example.com" IN {
        type master;
        file "master.luna-bind-example.com";
};

include "/etc/named.rfc1912.zones";
include "/etc/named.root.key";

Validate the BIND configuration:

named-checkconf /etc/named.conf

Start the BIND service:

named -u named -c /etc/named.conf

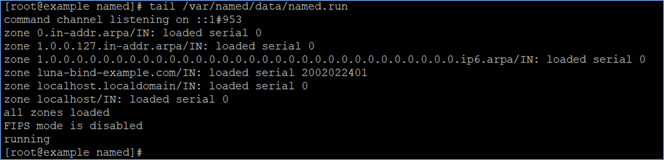

Verify that BIND is running:

tail /var/named/data/named.run

Confirm that BIND is listening on port 53:

netstat -natp | grep named

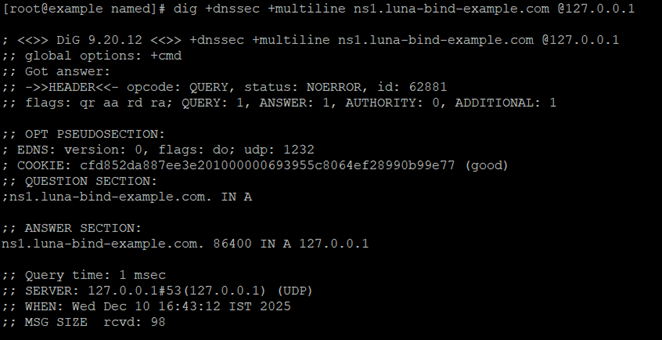

Verify DNS resolution before enabling DNSSEC:

dig +dnssec +multiline ns1.luna-bind-example.com @

Download the luna-openssl-provider package from the Thales GitHub repository. This package includes the sautil utility, which is used to generate cryptographic keys directly on the Luna HSM.

wget https://github.com/ThalesGroup/luna-openssl-provider/releases/download/v1.0.0/luna-openssl-provider-ubi-amd64-openssl3.4.1-liboqs0.12.0.tar

Extract the downloaded archive.

tar -xvf luna-openssl-provider-ubi-amd64-openssl3.4.1-liboqs0.12.0.tar

Copy the sautil binary to a directory in your PATH.

cp builds/linux/rhel/64/3.2/sautil /usr/local/bin/

The archive includes a prebuilt sautil binary for Linux. For other distributions, build sautil from source as described in the OpenSSL Integration Guide.

Navigate to the BIND working directory.

cd /var/named

Generate the Zone Signing Key (ZSK) on the Luna HSM.

• For RSA keys:

sautil -v -s 0 -g 2048 -f rsa-zsk-ref.pem -l ZSK-example.com -o -c -q

• For ECDSA keys:

sautil -v -s 0 -m OID_X9_62_prime256v1 -f ec-zsk-ref.pem -l ZSK-example.com -o -c -q

Generate the Key Signing Key (KSK) on the Luna HSM.

• For RSA keys:

sautil -v -s 0 -g 2048 -f rsa-ksk-ref.pem -l KSK-example.com -o -c -q

• For ECDSA keys:

sautil -v -s 0 -m OID_X9_62_prime256v1 -f ec-ksk-ref.pem -l KSK-example.com -o -c -q

The -s 0 option specifies the HSM slot. Verify the correct slot using lunacm if required. The -l option defines the key label stored on the HSM. You will be prompted for the partition password during key generation.

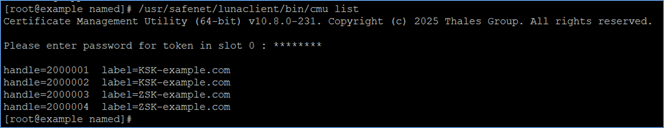

Verify that both ZSK and KSK key pairs have been created on the Luna HSM.

/usr/safenet/lunaclient/bin/cmu list

The next step applies only if you are using a PED-authenticated Luna HSM. If you are using a password-authenticated (PWD) Luna HSM, skip the next step and continue with creating BIND-compatible key reference files for the ZSK and KSK.

If you are using a PED-authenticated Luna HSM, complete the following actions to establish an authenticated session for DNSSEC operations. If you are using a PWD-based HSM, do not perform this step.

• Edit /etc/Chrystoki.conf and add the following under the Misc section:

AppIdMajor = 10;
AppIdMinor = 11;
FinalizeOnClose = 1;

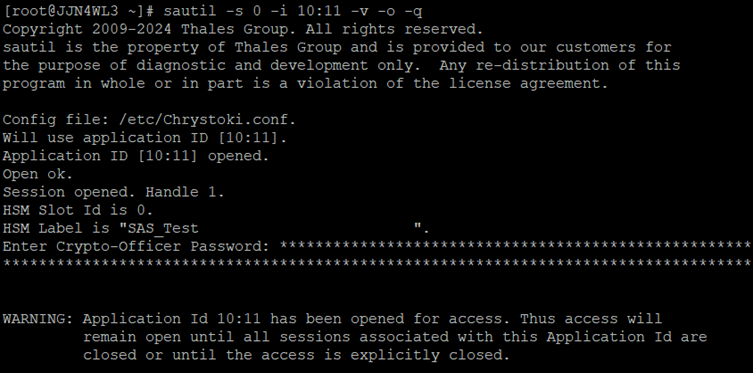

• Open an authenticated session using sautil:

sautil -s 0 -i 10:11 -v -o -q

Create BIND-compatible key reference files for the ZSK using the keys stored on the Luna HSM.

• For RSA keys:

mkdir RSA-Keys
dnssec-keyfromlabel -a RSASHA256 \
-l "pkcs11:token=TPA01;object=ZSK-example.com;pin-value=userpin1" \
-K RSA-Keys/ luna-bind-example.com

• For ECDSA keys:

mkdir EC-Keys
dnssec-keyfromlabel -a ECDSAP256SHA256 \
-l "pkcs11:token=TPA01;object=ZSK-example.com;pin-value=userpin1" \
-K EC-Keys/ luna-bind-example.com

The pin-value parameter is required only for PWD-based HSMs. It is ignored for PED-based HSMs.

Create BIND-compatible key reference files for the KSK.

• For RSA keys:

dnssec-keyfromlabel -a RSASHA256 \
-l "pkcs11:token=TPA01;object=KSK-example.com;pin-value=userpin1" \
-K RSA-Keys/ -f KSK luna-bind-example.com

• For ECDSA keys:

dnssec-keyfromlabel -a ECDSAP256SHA256 \
-l "pkcs11:token=TPA01;object=KSK-example.com;pin-value=userpin1" \
-K EC-Keys/ -f KSK luna-bind-example.com

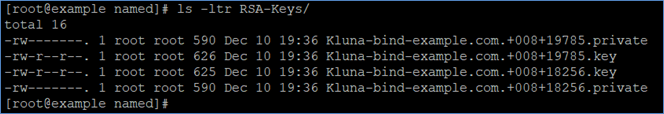

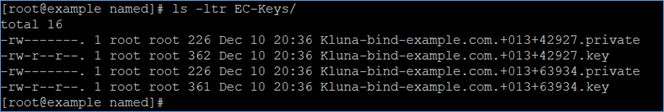

Verify that the ZSK and KSK files were created successfully.

ls -ltr RSA-Keys/

or

ls -ltr EC-Keys/

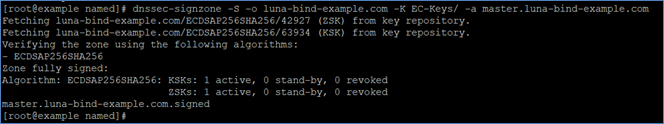

Sign the DNS zone file using the generated keys. All signing operations are performed on the Luna HSM.

• For RSA keys:

dnssec-signzone -S -o luna-bind-example.com -K RSA-Keys/ -a master.luna-bind-example.com

• For ECDSA keys:

dnssec-signzone -S -o luna-bind-example.com -K EC-Keys/ -a master.luna-bind-example.com

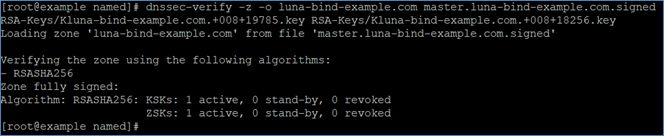

Verify the signed zone file using the public key files generated by BIND. Replace <KSK>.key and <ZSK>.key with the actual .key filenames created in the key directory.

• Using RSA keys:

dnssec-verify -z -o luna-bind-example.com master.luna-bind-example.com.signed RSA-Keys/.key RSA-Keys/.key

• Using ECDSA keys:

dnssec-verify -z -o luna-bind-example.com master.luna-bind-example.com.signed EC-Keys/.key EC-Keys/.key

Edit the /etc/named.conf file to ensure DNSSEC validation is enabled and update the zone definition to use the signed zone file.

dnssec-validation yes;

zone "luna-bind-example.com" IN {
        type master;
        file "master.luna-bind-example.com.signed";
};

Restart BIND to apply the updated configuration.

killall named
named -u named -c /etc/named.conf

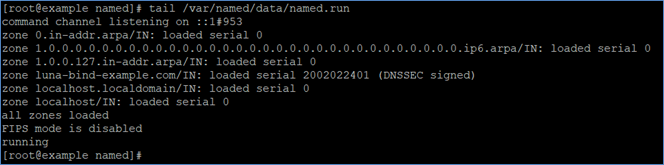

Verify that BIND has started successfully and is running without errors.

tail /var/named/data/named.run

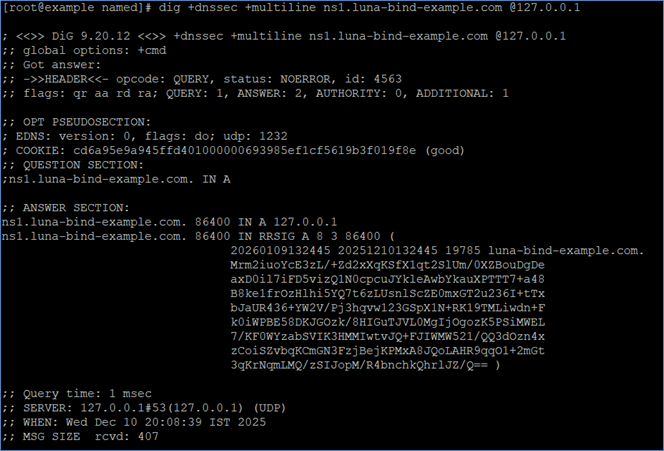

Use the dig utility to confirm that DNSSEC is enabled and that signed records are returned.

dig +dnssec +multiline ns1.luna-bind-example.com @

Confirm that RRSIG records appear in the response. The presence of RRSIG records indicates that the zone is signed and that DNSSEC is active.
