HAProxy

Configure Luna HSM

Download the GemEngine toolkit

Set up HAProxy

Ensure that the HSM is set up, initialized, provisioned, and ready for deployment. For more information, refer to Luna HSM documentation.

Create a partition that will be later on used by HAProxy.

Create and exchange certificate between the Luna Network HSM and client system. Register client and assign partition to create an NTLS connection.

Initialize Crypto Officer and Crypto User roles for the registered partition.

Run the following command to verify that the partition has been successfully registered and configured:

/usr/safenet/lunaclient/bin/lunacm

Upon successful execution, you should observe an output similar to the example provided below:

lunacm (64-bit) v10.4.0-417. Copyright (c) 2021 Thales Group. All rights reserved.
Available HSMs:

Slot Id ->                           0
Label ->                             HAProxy
Serial Number ->                     1280780175865
Model ->                             LunaSA 7.3.0
Firmware Version ->                  7.3.0
Configuration ->                     Luna User Partition With SO (PW) Key Export With Cloning Mode
Slot Description ->                  Net Token Slot
Current Slot Id ->                   0

Refer to Luna HSM documentation for detailed steps on creating NTLS connection, initializing the partitions, and assigning various user roles.

For proper configuration of a PED-based Luna HSM, it is recommended to activate partition policies 22 and 23, allowing for both activation and auto-activation.

This integration is fully tested with both HA and FIPS modes.

Open the configuration file for your Luna HSM.

Look for the [Misc] section within the configuration file.

Add or modify the following setting within the [Misc] section:

RSAKeyGenMechRemap=1

This setting instructs the Luna HSM to redirect older key generation mechanisms to the newly approved mechanism when the HSM is operating in FIPS mode.

Visit the Thales Customer Support portal.

Use the appropriate Doc ID to find and download your desired version of the GemEngine toolkit:

• GemEngine v1.3: Doc ID KB0017806

• GemEngine v1.2: Doc ID KB0016309

Ensure you are logged into your Thales Customer Support account to access the downloads.

Extract the GemEngine toolkit to any directory of your choice.

Locate the OpenSSL engines directory:

• Use the gembuild tool to find the location of the OpenSSL engines directory. This tool is available in the directory where you extracted the GemEngine toolkit.

• Run the following command:

./gembuild locate-engines

• This command will provide the location of the libgem.so file. By default, the OpenSSL engines directory is located at /usr/lib64/openssl/engines.

Copy the libgem.so file to the OpenSSL engines directory for your specific OpenSSL version. For example:

cp builds/linux/rhel/64/1.0.2/libgem.so /usr/lib64/openssl/engines

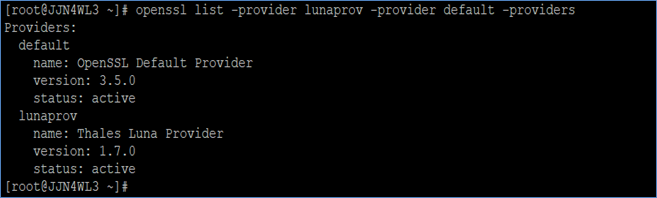

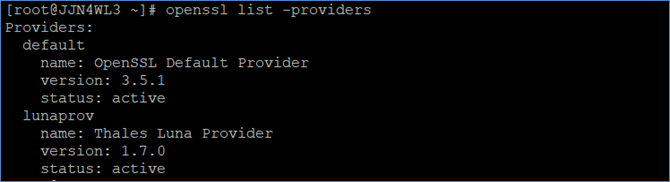

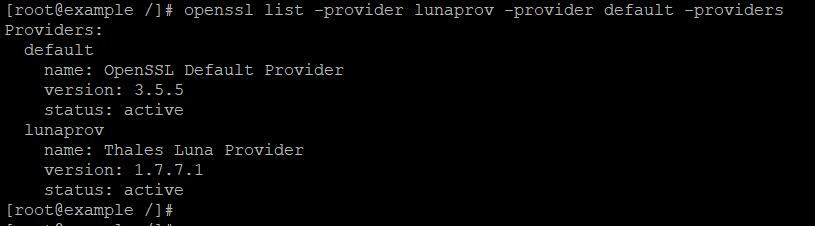

Verify GemEngine loading:

• Execute the following command to verify that the GemEngine is loading correctly:

openssl engine gem -v

• You should see an output similar to the following:

(gem) Gem engine support
enginearg, openSession, closeSession, login, logout, engineinit,
CONF_PATH, ENGINE_INIT, ENGINE2_INIT, engine2init, DisableCheckFinalize,
SO_PATH, GET_HA_STATE, SET_FINALIZE_PENDING, SKIP_C_INITIALIZE,
IntermediateProcesses

If you are installing OpenSSL from source, refer to the README-GEMBUILD text file in the /docs directory for further details on compiling and building with GemEngine.

Create a passfile and store the partition password in it:

echo  > /tmp/passfile

Update the Chrystoki.conf file:

• Open the /etc/Chrystoki.conf file in a text editor.

• Add the following GemEngine section to the file:

GemEngine = {
LibPath = /usr/safenet/lunaclient/lib/libCryptoki2_64.so;
LibPath64 = /usr/safenet/lunaclient/lib/libCryptoki2_64.so;
EnableDsaGenKeyPair = 1;
EnableRsaGenKeyPair = 1;
DisablePublicCrypto = 1;
EnableRsaSignVerify = 1;
EnableLoadPubKey = 1;
EnableLoadPrivKey = 1;
DisableCheckFinalize = 0;
IntermediateProcesses = 0;
DisableEcdsa = 1;
DisableDsa = 0;
DisableRand = 0;
EngineInit = :0:0:passfile=;
EnableLoginInit = 1;
}

Make sure to replace placeholders like <partition_password>, <slot_id>, and <path_to_passfile> with your actual values.

Run the following command to generate a private key:

openssl genrsa -engine gem -out key.pem

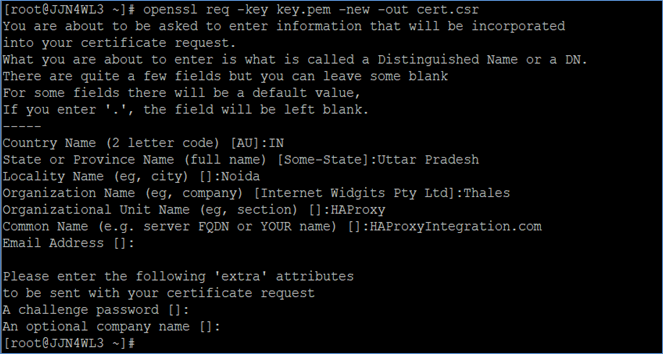

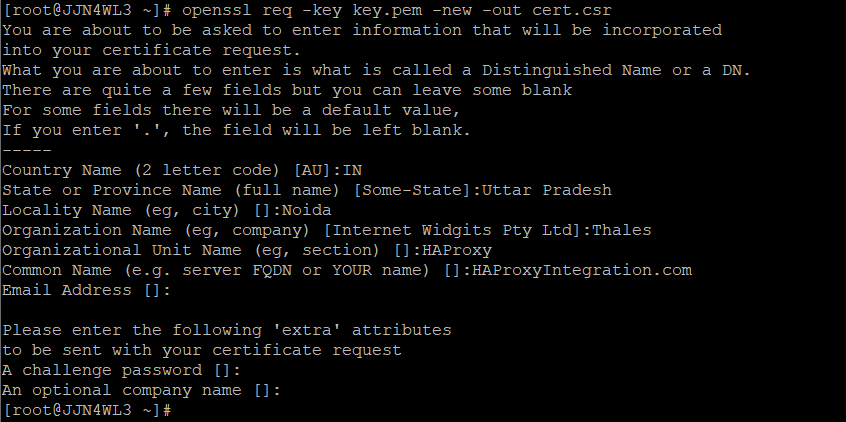

Use the private key generated in the previous step to create a self-signed certificate:

openssl req -engine gem -new -x509 -days 365 -key key.pem -out cert.cer

This integration uses self-signed certificates for a test environment only. For a production environment, use a certificate authority to issue the certificate.

Copy the private key and certificate to a new file at /etc/pki/tls/certs/haproxy.pem using the following command:

cat key.pem cert.cer > /etc/pki/tls/certs/haproxy.pem

Open the HAProxy configuration file (/etc/opt/rh/rh-haproxy18/haproxy/haproxy.cfg) in a text editor and add the following code:

     global
         log         127.0.0.1 local2
         pidfile     /var/run/rh-haproxy18-haproxy.pid
         maxconn     4000
         pidfile     /var/run/haproxy.pid
         user        haproxy
         group       hsmusers
         daemon
         ssl-engine  gem
         tune.ssl.default-dh-param 2048

     defaults
         mode                    http
         log                     global
         option                  httplog
         option                  dontlognull
         retries                 3
         timeout http-request    10s
         timeout queue           1m
         timeout connect         10s
         timeout client          1m
         timeout server          1m
         timeout http-keep-alive 10s
         timeout check           10s

     frontend https-in
         bind *:80
         use_backend static
         option forwardfor
         bind *:443 ssl crt /etc/pki/tls/certs/haproxy.pem

     backend static
         balance     roundrobin
         server server1.example.com 10.164.76.117:80 check
         server server2.example.com 10.164.78.118:80 check

The actual path for haproxy.cfg may vary depending on your HAProxy installation. The fields in haproxy.cfg may also vary according to your requirements. Follow the HAProxy Documentation for detailed information on each field. Ensure you add ssl-engine gem to the global section so that OpenSSL can use GemEngine.

Check and set SELinux to permissive mode:

• Temporarily set SELinux to permissive mode by running:

setenforce 0

• To make this change permanent, edit the SELinux configuration file:

sudo nano /etc/selinux/config

• Change the following line:

SELINUX=permissive

• Reboot the system for the changes to take effect:

sudo reboot

If you are using Ubuntu, you can skip this step.

Start the HAProxy Service:

• Start the HAProxy service by running:

sudo systemctl start haproxy.service

• Ensure HAProxy is allowed through the firewall. Add the HAProxy service to the firewall daemon:

sudo firewall-cmd --add-service=haproxy --permanent
sudo firewall-cmd --reload

Verify that the HAProxy service starts without any errors:

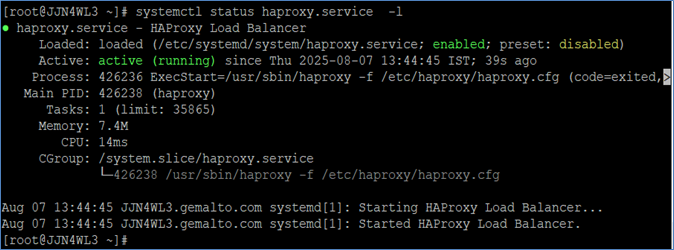

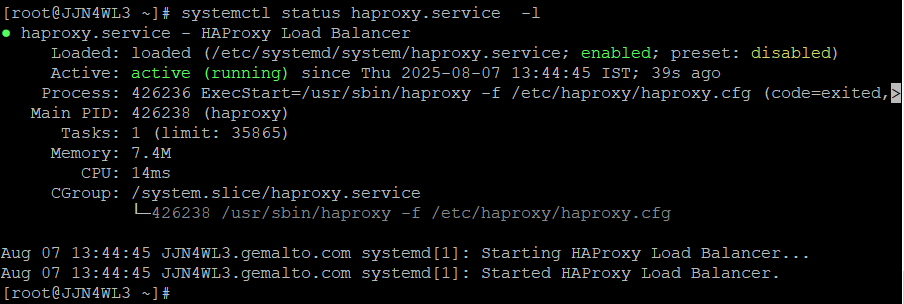

sudo systemctl status haproxy.service -l

You should see output indicating that the service is active and running, similar to this:

     rh-haproxy18-haproxy.service - HAProxy Load Balancer
        Loaded: loaded (/usr/lib/systemd/system/rh-haproxy18-haproxy.service; disabled; vendor preset: disabled)
        Active: active (running) since Fri 2019-03-01 12:08:44 IST; 3s ago
       Main PID: 17189 (haproxy)
         Tasks: 2
        CGroup: /system.slice/rh-haproxy18-haproxy.service
                +-17189 /opt/rh/rh-haproxy18/root/usr/sbin/haproxy -Ws -f /etc/opt/rh/rh-haproxy18/haproxy/haproxy.cfg -p /run/rh-haproxy18-haproxy.pid
                +-17197 /opt/rh/rh-haproxy18/root/usr/sbin/haproxy -Ws -f /etc/opt/rh/rh-haproxy18/haproxy/haproxy.cfg -p /run/rh-haproxy18-haproxy.pid

     Mar 01 12:08:42 localhost.localdomain systemd[1]: Starting HAProxy Load Balancer...
     Mar 01 12:08:43 localhost.localdomain haproxy[17181]: STC client identity not configured
     Mar 01 12:08:44 localhost.localdomain haproxy[17189]: STC client identity not configured
     Mar 01 12:08:44 localhost.localdomain systemd[1]: Started HAProxy Load Balancer.

Open any web browser and navigate to:

https://:443

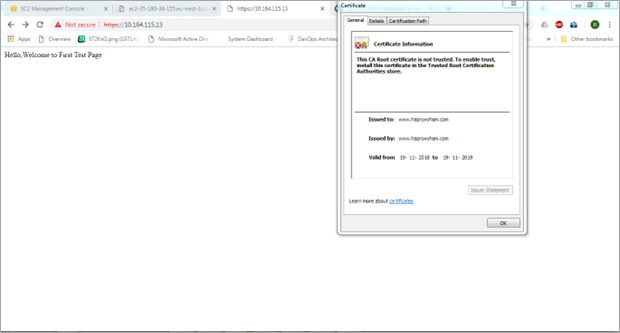

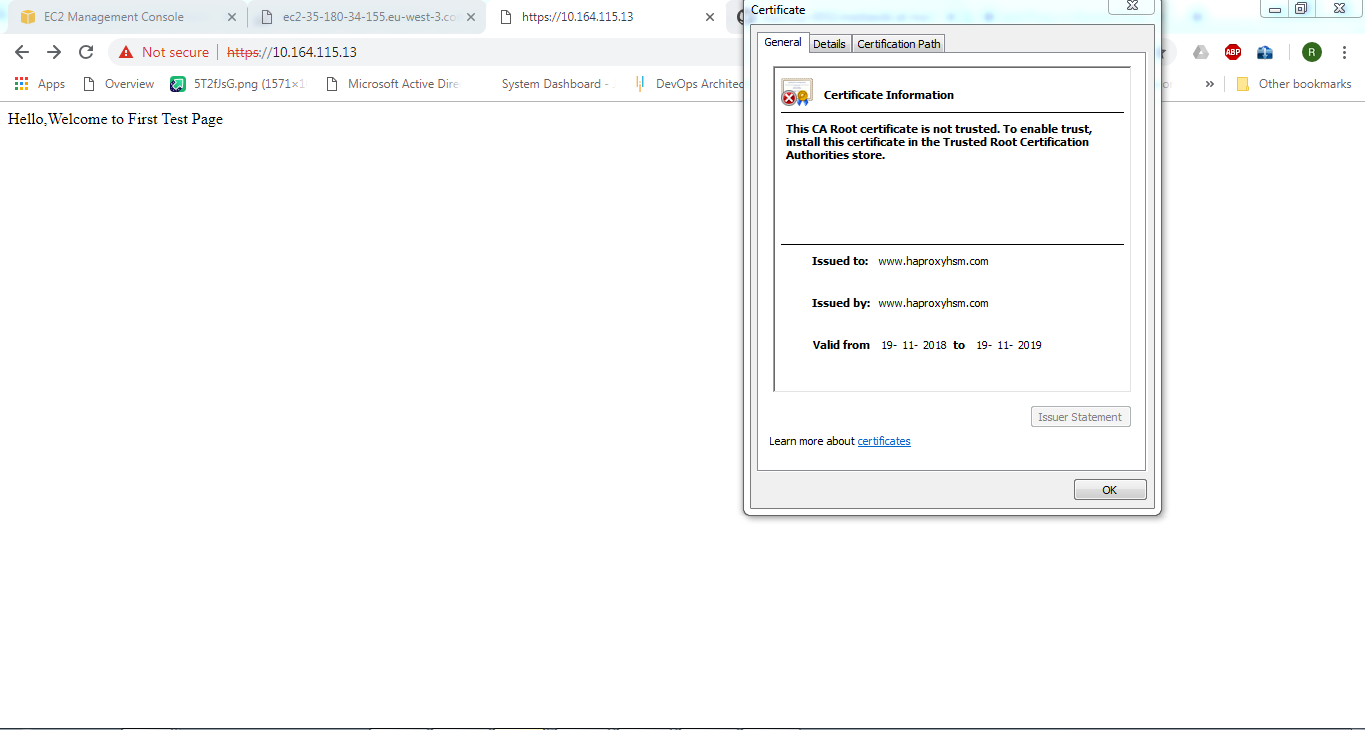

When prompted, accept the self-signed certificate. Verify the certificate details to ensure it matches the one you created.

Execute the steps outlined in the Configure OpenSSL to use GemEngine section to set up OpenSSL with GemEngine.

Find the directory where your SSL private key and certificate are stored.

Run the following command to extract the public key from your private key:

openssl rsa -in server.key -pubout -out pubkey.pem

Replace server.key with the name of your private key file.

Use the following command to convert your private key to PKCS#8 format:

openssl pkcs8 -in server.key -topk8 -nocrypt -out privatekey.pem

Replace server.key with the name of your private key file.

Use the CMU utility provided with Luna Client to import the public key and private key to the HSM.

• For the public key:

/usr/safenet/lunaclient/bin/cmu import -inputFile pubkey.pem -label haproxy_public_key -pubkey=rsa

• For the private key:

/usr/safenet/lunaclient/bin/cmu importkey -PKCS8 -in privatekey.pem -keyalg RSA

When prompted, provide the partition password.

Verify keys on Luna HSM partition:

• Check that the keys are generated on the Luna HSM partition and note the private key handle:

/usr/safenet/lunaclient/bin/cmu list

• Example output:

Certificate Management Utility (64-bit) v10.3.0-275. Copyright (c) 2020 SafeNet. All rights reserved.
Please enter password for token in slot 0 : *******
handle=2000001  label=CMU Unwrapped RSA Private Key
handle=2000002  label=haproxy_public_key

If you have multiple keys, you can recognize the private key by providing it a label. Use the following command:

/usr/safenet/lunaclient/bin/cmu setattribute -handle=2000001 -label=haproxy_private_key

Ensure that the private key label matches the label of the public key:

/usr/safenet/lunaclient/bin/cmu list

Example output:

Certificate Management Utility (64-bit) v10.3.0-275. Copyright (c) 2020 SafeNet. All rights reserved.
Please enter password for token in slot 0 : *******
handle=2000001  label=haproxy_private_key
handle=2000002  label=haproxy_public_key

Copy the SAUTIL utility provided with the OpenSSL toolkit to create the private key reference in software:

cp /home/gemengine-1.2/builds/linux/rhel/64/1.0.2/sautil /usr/bin/

Create private key reference:

• Run the SAUTIL utility to create a private key reference to the actual private key imported in Luna HSM:

sautil -v -s 0 -i 0:0 -a 0:RSA -f HSMKey_ref.pem -o -q -c

• Provide the HSM partition password and key handle when prompted. After successful execution of the SAUTIL command, HSMKey_ref.pem will be generated.

Delete the private key generated by OpenSSL and the PKCS#8 format key that was used before importing the key into Luna HSM:

rm -rf server.key privatekey.pem

Create the combined certificate file:

• Combine the private key reference and the existing certificate into a new file at /etc/pki/tls/certs/haproxy.pem:

cat HSMKey_ref.pem softcert.cer > /etc/pki/tls/certs/haproxy.pem

• Replace softcert.cer with your existing certificate file that was generated using the software key.

Open the HAProxy configuration file in a text editor and ensure the following configuration is included:

      global
      log         127.0.0.1 local2
      pidfile     /var/run/rh-haproxy18-haproxy.pid
      maxconn     4000
      pidfile     /var/run/haproxy.pid
      user        haproxy
      group       hsmusers
      daemon
      ssl-engine gem
      tune.ssl.default-dh-param 2048

      defaults
      mode                    http
      log                     global
      option                  httplog
      option                  dontlognull
      retries                 3
      timeout http-request    10s
      timeout queue           1m
      timeout connect         10s
      timeout client          1m
      timeout server          1m
      timeout http-keep-alive 10s
      timeout check           10s

      frontend  https-in
      bind *:80
      use_backend static
      option forwardfor
      bind *:443 ssl crt /etc/pki/tls/certs/haproxy.pem

      backend static
      balance     roundrobin
      server server1.example.com 10.164.76.117:80 check
      server server2.example.com 10.164.78.118:80 check

The path to haproxy.cfg may differ based on your HAProxy installation. Adjust fields as needed according to your setup. Ensure you add ssl-engine gem to the global section so that OpenSSL uses GemEngine and the correct certificate location is specified.

Configure SELinux:

• Check the SELinux setting and temporarily set it to permissive mode:

setenforce 0

• To make this change permanent, edit /etc/selinux/config and set:

SELINUX=permissive

• Reboot the system to apply the changes:

reboot

If you are using Ubuntu, this step is not required.

Restart the HAProxy service to apply the new configuration:

systemctl restart haproxy.service

Ensure that the HAProxy service is added to the firewall rules to allow traffic through the firewall.

Check the status of the HAProxy service to confirm that it is running without errors:

systemctl status haproxy.service

Example output:

      haproxy.service - HAProxy Load Balancer
      Loaded: loaded (/usr/lib/systemd/system/haproxy.service; disabled; vendor preset: disabled)
      Active: active (running) since Tue 2021-02-23 14:40:21 IST; 1h 35min ago
        Docs: man:haproxy(1)
              file:/usr/share/doc/haproxy/configuration.txt.gz
      Process: 164765 ExecStart=/usr/sbin/haproxy -W -f $CONFIG -p $PIDFILE $EXTRAOPTS (code=exited, status=0/SUCCESS)
      Process: 164754 ExecStartPre=/usr/sbin/haproxy -f $CONFIG -c -q $EXTRAOPTS (code=exited, status=0/SUCCESS)
      Main PID: 164775 (haproxy)
         Tasks: 3 (limit: 23814)
        Memory: 24.9M
        CGroup: /system.slice/haproxy.service
      ├─164775 /usr/sbin/haproxy -W -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid
      └─164776 /usr/sbin/haproxy -W -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid

      Feb 23 14:40:21 localhost.localdomain haproxy[164765]: [NOTICE] 053/144021 (164775) : New worker #1 (164776) forked
      Feb 23 14:40:21 localhost.localdomain systemd[1]: Started HAProxy Load Balancer.

Open a browser and navigate to the HAProxy load balancer:

https://:443

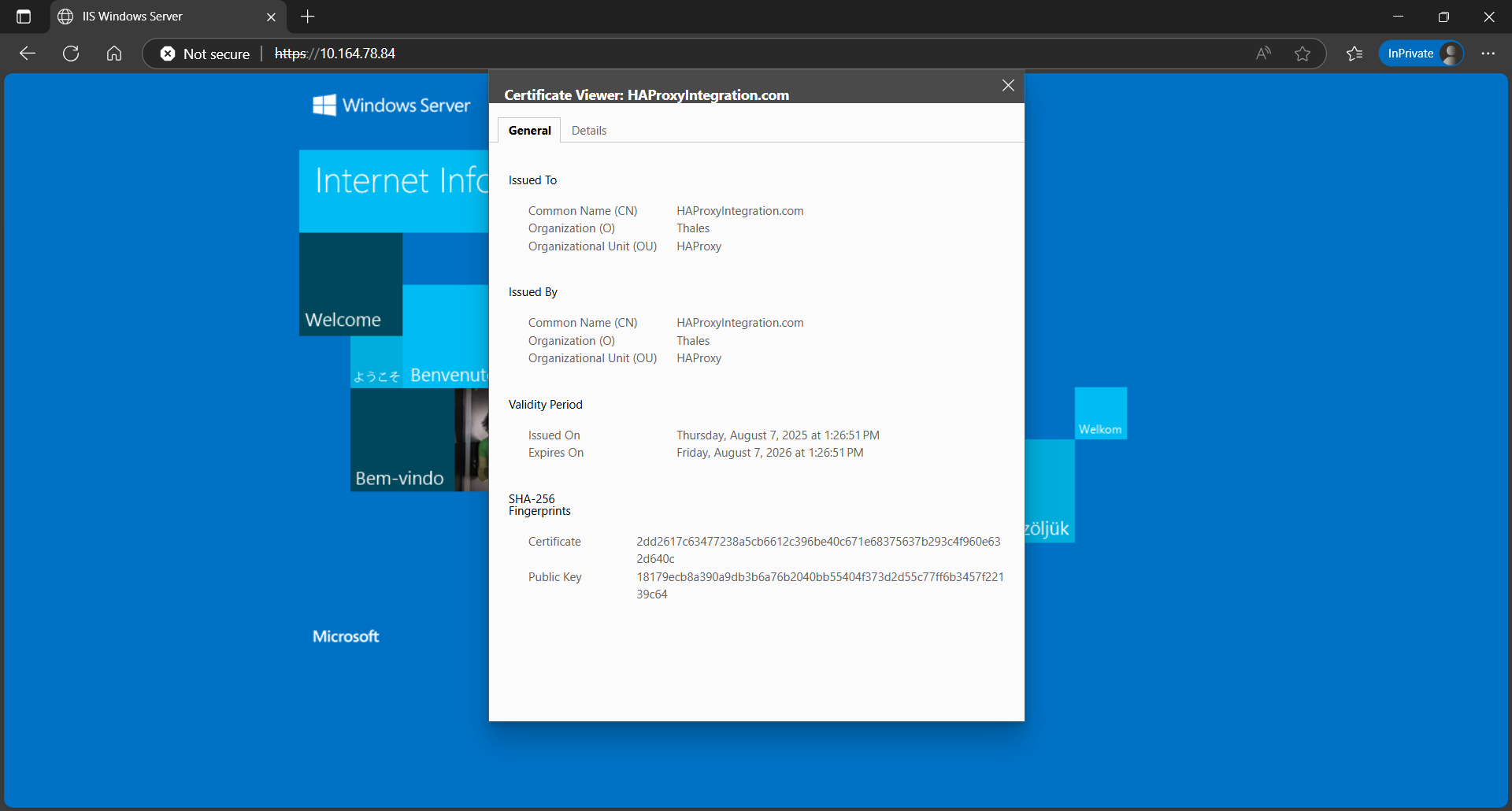

Accept the certificate and verify its details to ensure the integration is complete.

Install required packages:

apt install make gcc perl libpcre3-dev zlib1g-dev -y

Download HAProxy source:

wget https://www.haproxy.org/download/1.8/src/haproxy-1.8.8.tar.gz

Extract the source archive:

tar xzf haproxy-1.8.8.tar.gz

Navigate to the extracted directory:

cd haproxy-1.8.8

Compile HAProxy with custom OpenSSL:

make TARGET=generic USE_OPENSSL=1 SSL_INC=/usr/local/ssl/include SSL_LIB=/usr/local/ssl/lib USE_PCRE=1 USE_ZLIB=1 USE_GETADDRINFO=1 USE_REGPARM=1 USE_PCRE_JIT=1 USE_NS=1

Ensure the SSL_INC and SSL_LIB paths match the location where Custom OpenSSL is installed.

Install HAProxy:

make install

Copy the HAProxy binary:

cp /usr/local/sbin/haproxy /usr/sbin/haproxy

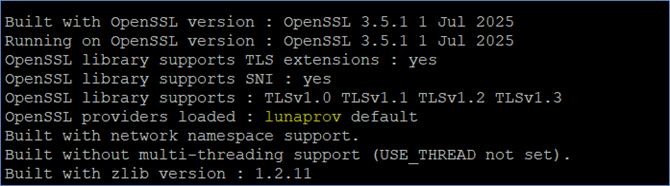

Check that HAProxy is using the desired Custom OpenSSL version:

haproxy -vv

Create the service file /lib/systemd/system/haproxy.service with the following content:

    [Unit]
    Description=HAProxy Load Balancer
    Documentation=man:haproxy(1)
    Documentation=file:/usr/share/doc/haproxy/configuration.txt.gz
    After=network.target rsyslog.service

    [Service]
    EnvironmentFile=-/etc/default/haproxy
    Environment="CONFIG=/etc/haproxy/haproxy.cfg" "PIDFILE=/run/haproxy.pid"
    Environment="LD_LIBRARY_PATH=/usr/local/ssl/lib/"
    ExecStartPre=/usr/sbin/haproxy -f $CONFIG -c -q $EXTRAOPTS
    ExecStart=/usr/sbin/haproxy -W -f $CONFIG -p $PIDFILE $EXTRAOPTS
    ExecReload=/usr/sbin/haproxy -f $CONFIG -c -q $EXTRAOPTS
    ExecReload=/bin/kill -USR2 $MAINPID
    KillMode=mixed
    Restart=always
    SuccessExitStatus=143
    Type=forking

    [Install]
    WantedBy=multi-user.target

Ensure the Environment="LD_LIBRARY_PATH" points to the custom OpenSSL library folder.

Create /etc/haproxy/haproxy.cfg with the following content:

    global
        log /dev/log local0
        log /dev/log local1 notice
        stats socket /run/haproxy/admin.sock mode 660 level admin expose-fd listeners
        stats timeout 30s
        user haproxy
        group haproxy
        daemon

    defaults
        log     global
        mode    http
        option  httplog
        option  dontlognull

Create the haproxy user if it doesn’t already exist:

id -u haproxy &> /dev/null || useradd -s /usr/sbin/nologin -r haproxy

Create the HAProxy directory:

mkdir -p /run/haproxy

Reload the systemd daemon and start the HAProxy service:

systemctl daemon-reload
systemctl start haproxy.service

Ensure that the HAProxy service starts successfully. Follow the instructions in the Integrate Luna HSM with HAProxy section to complete the setup.

Install Apache server:

apt install httpd -y

Modify your webpage content in the /var/www/html/index.html file as needed.

Start the Apache service:

systemctl start httpd

Follow the steps in the Integrate Luna HSM with HAProxy section to ensure integration is complete.

Stop the HAProxy service if it is currently running.

systemctl stop haproxy.service

Create the directory for chroot.

mkdir -p /var/lib/haproxy

Create the /usr/safenet directory within the chroot directory.

mkdir -p /var/lib/haproxy/usr/safenet

Mount the existing /usr/safenet directory to the chroot directory.

mount --bind /usr/safenet /var/lib/haproxy/usr/safenet

Create the /etc directory within the chroot directory and copy the Chrystoki.conf file to it.

mkdir /var/lib/haproxy/etc
cp /etc/Chrystoki.conf /var/lib/haproxy/etc/

Provide the HAProxy user with the necessary permissions for the Chrystoki.conf file.

setfacl -m u:haproxy:rwx /var/lib/haproxy/etc/Chrystoki.conf

Create the /tmp directory within the chroot directory.

mkdir /var/lib/haproxy/tmp

Mount the existing /tmp directory to the chroot directory.

mount --bind /tmp /var/lib/haproxy/tmp

Add the following line to the global section of the /etc/haproxy/haproxy.cfg file to specify the chroot directory.

chroot /var/lib/haproxy

Reload the system daemon and start the HAProxy service.

systemctl daemon-reload
systemctl start haproxy.service

The above mounts are temporary and will be lost after a reboot. To make these mounts persistent, add them to the /etc/fstab file.
