HSM Configuration

This section describes configuration of Hardware Security Module (HSM).

This table lists the IDPV Server parameters that must be configured in the appsettings.yml file available under the /var/thales/config directory.

Configuring Luna HSM

This section describes the process to configure Luna HSM Luna HSM Compatibility Information

Both FIPS and non-FIPS modes are supported by the SafeNet IDPrime Virtual Server. It is recommended to use FIPS-compliant HSM for enhanced security.

Using Existing Luna HSM Server

For an existing Luna HSM, you need to install Luna HSM client software on Server-1 (IDPV server machine) to connect with the Luna HSM server. The procedure to install the same is mentioned in the Luna HSM Client Software Installation.

You must apply policies to the HSM server for SafeNet IDPrime Virtual server operations.

HSM Level Policies

Policy 15 (Optional): If Policy 15 is enabled and the CO password is locked, the password can be reset.

Partition Level Policies

Ensure that the following partition policies are active on the partition to be used:

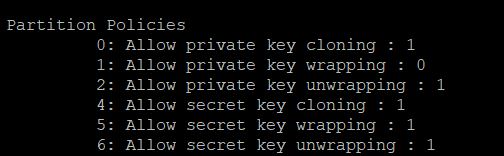

Clone Mode

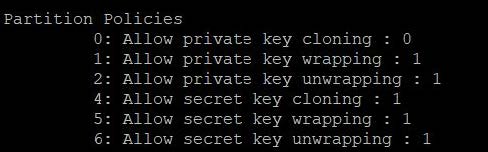

Export Mode

Configuring Luna Client on Host Machine

Install Luna Client on your host machine and configure one partition with the above mentioned policies. For more information on how to install the Luna Client, refer to Luna HSM Client Software Installation.

Collecting Files from Host Machine to Prepare Mapping Directory

1. Use the following command to create a directory for mapping with the IDPV container:


   mkdir/var/thales/hsm




2. Copy the client certificate files from your SafeNet Luna Client directory, (/usr/safenet/lunaclient/cert/client/), using the following commands:


   cp/usr/safenet/lunaclient/cert/client/*.pem/var/thales/hsm/
   cp/usr/safenet/lunaclient/cert/server/CAFile.pem/var/thales/hsm/
   cp/etc/Chrystoki.conf/var/thales/hsm/




   While copying the configuration files in the mkdir/var/thales/hsm directory, follow the instructions provided in the Installing the IDPV Server section.

3. After copying the Chrystoki.conf file, run the following command to add read permission on the file:


   chmod a+r/var/thales/hsm/Chrystoki.conf




   At this stage, the directory /var/thales/hsm/ should contain the following files:

   • MachineIP/HostName.pem
   • MachineIPKey/HostName.pem
   • CAFile.pem
   • Chrystoki.conf

   In case of FIPS-supported HSM, the Chrystoki.conf file must have RSAKeyGenMechRemap=1 parameters under Miscellaneous section.

Setting up a New Luna HSM Server

Before using Luna HSM for SafeNet IDPrime Virtual Server, user must install and configure your HSM Server. For more information, refer to Installing and Configuring Your New Luna Network HSM.

After successful installation, user must perform the steps mentioned in Using Existing Luna HSM Server.

SoftHSM

SafeNet IDPrime Virtual supports SoftHSM v2.5.0 for the IDPV Server Evaluation Version only. SoftHSM-related configuration (HSMProvider, TokenSerial and TokenPin) is already configured in the appsettings.yml file provided with the IDPV Evaluation package. The evaluation version also supports other crypto providers, i.e. Luna and DPoD. To configure other HSMProvider.

SoftHSM details are also stored in the /publish/SoftHsmDetails.txt file inside the container. To verify the details, execute the following commands after running the container:
- docker exec -it idprimevirtualserver sh
- cat SoftHsmDetails.txt
For RHEL 8 or 9 with podman environment, run the following commands:
- podman exec -it idprimevirtualserver sh
- cat SoftHsmDetails.txt

(Optional) Configuring SoftHSM Volume on the Host Machine

1. Create one folder (for example, SoftHsmToken) with full permissions in the /var/thales/ directory.

2. Run the following command to configure the folder:


   docker run --name SoftHSM_IDPV -itd -v /var/thales/softhsm:/publish/Config/ -v /var/thales/SoftHsmToken:/var/lib/softhsm/tokens -p 8050:5001 idprimevirtual_server_evaluation:2.4.1.24


3. Run the following command to initialize the token:


   softhsm2-util --init-token --slot 0 --label "IDPV-Partition"

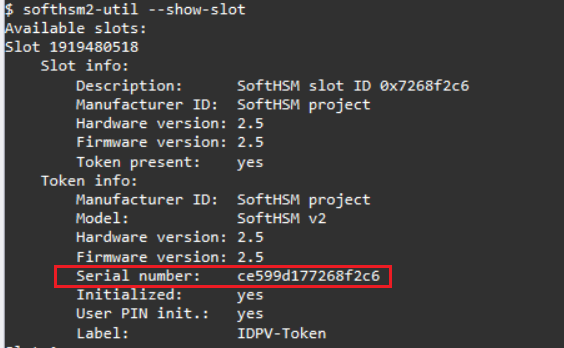

4. After the token is initialized, run the following command to display the token serial number:


   softhsm2-util --show-slot


5. Copy the serial number and update it in the TokenSerial parameter within the appsettings.yml file.

6. Restart the container to apply the changes.

KeySecure

To use IDPrime Virtual (IDPV) server with KeySecure, access on the KeySecure device is required. To access KeySecure, you require the device IP Address and a user account with access privileges.

KeySecure must be configured in non-FIPS mode as IDPV product does not generate, and export keys when KeySecure is configured in FIPS mode. KeySecure is supported only with evaluation version.

Perform the following steps to configure KeySecure:

1. Create a /var/thales/hsm/ directory.

2. Download and extract the delivery package and copy IngrianNAE.properties file from config folder to the /var/thales/hsm/.

3. Create a /var/thales/config directory, and copy the following files downloaded from the delivery package provided with this solution:

   • appsettings.yml
   • policy-configuration.json
   • idp-configuration.json
   • log4net.config
   • servercertificate.pfx
   • IngrianNAE.properties

4. Edit the IngrianNAE.properties file, and set the below parameters:

   Parameter	Description	Example
   NAE_IP	KeySecure Device IP Type: Mandatory	10.164.41.78
   NAE_Port	KeySecure Device Port Type: Mandatory	Default port is 9000
   Protocol	KeySecure Device communication Protocol Type: Mandatory	TCP
   Log_Level	This can be high, medium or low based on the severity Type: Mandatory	MEDIUM
   Log_File	Path where the log file will be created Type: Mandatory	/publish/logs/PAConnector.log

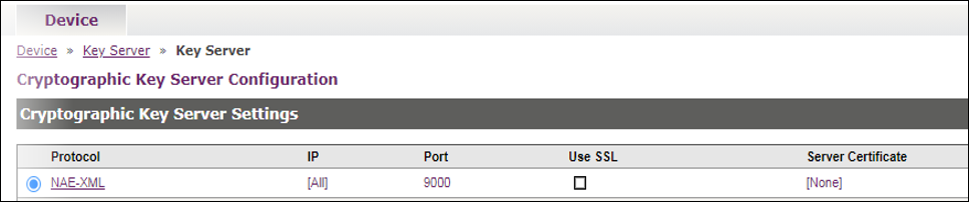

5. Perform the step on KeySecure device: Current IDPV Server works with KeySecure using NAE protocol only. The below screenshot shows a default configuration for KeySecure.



   Use SSL option is recommended for extended security.

Creating a Local User

1. Log on to the Management Console as an administrator with Users and Groups access control.

2. Go to Security > Local Authentication > Local Users & Groups.

3. Click Add.

4. Enter a user name in the Username field and password in the Password field.

   For example, idprime is taken as a username and temp123# as a password in this document.

5. Select the User Administration Permission and Change Password Permission check boxes.

6. Click Save.

Creating a Local Group

1. Navigate to the Local Groups section on the same page.

2. Click Add.

3. Enter a group name in the Group field.

   For example, idpv is taken as group name in this document.

4. Click Save.

5. Once group is created, select Group and click Properties.

   The Local Group Properties page is displayed.

6. Click Add in User List section and type the username "idprime" as created in Creating a Local User.

Data Protection on Demand (DPOD)

Ensure SafeNet Data Protection on Demand (DPoD) is set up correctly before it’s configured. For more information, refer to DPoD User Guide.

Currently, IDPV supports DPoD (Clone mode and Export mode) in Non-FIPS mode only. However, SWS supports DPoD (Clone and Export mode) in both FIPS and Non-FIPS mode.

Perform the following steps to configure DPoD:

1. Download and extract the DPoD client package.

2. Initialize the partition and set SO and CO (Crypto User) pin as given in the Thales DPoD Guide provided with the package.

3. Copy following files from the DPOD package to /var/thales/hsm/ directory. This directory is mapped with IDPV container.

   • server-certificate.pem
   • partition-certificate.pem
   • partition-ca-certificate.pem
   • Chrystoki.conf

   Make sure that the Chrystoki.conf file has read permission for all users. Run the following command to give permission:
   chmod a+r /var/thales/hsm/Chrystoki.conf


4. In the configuration, select DPoD as the HSMProvider DPoD.

   • If you select the HSM provider as Luna, Luna6, DPOD (with export feature) and configure Export ( -k ) as true for the tenant during Tenant creation, the user or subscriber keys will be stored in the database in encrypted format.

   • If you select the crypto provider as KeySecure, the user or subscriber keys are stored in KeySecure. Unlike Luna, where you can export the user keys to a database (in encrypted format) as KeySecure does not support the export functionality.

   • The SafeNet IDPrime Virtual client do not support DPoD in FIPS mode due to a known limitation of DPoD.


   • This release supports KeySecure 450v Software Version 8.4.2 with P11 connector version 8.8.0 and ProtectApp connector version 8.12.


In case of Docker deployments, specific credentials are stored in the form of plain text in the appsettings.yml file. Therefore, access to the system is important and must be monitored.
