Google EKM Performance Summary

We have tested ten environments to capture performance metrics for the CipherTrust Cloud Key Manager (CCKM) Google External Key Manager (EKM) integration. The below results demonstrate the effects of deployment choices on throughput for EKM endpoint wrap operations. This can help you plan your CipherTrust Manager deployment to meet your performance needs for Google EKM.

There is a Google requirement that wrap and unwrap requests must be completed within 150 ms, so results are presented to show the throughput possible before meeting that threshold.

Tested Environments

All environments used an open source k6.io tool as the REST client, run from a Debian virtual machine. The Virtual Machine was hosted on Google Cloud Platform in us central 1a zone with 8 vCPUs of 64 GB memory, and 50 GB memory disk.

The following CipherTrust Manager deployments were tested:

• Google Cloud Platform deployments:

  • Single CipherTrust Manager with 4 CPUs and 16 GB RAM.

  • Single CipherTrust Manager with 8 CPUs and 64 GB RAM.

  • Two clustered CipherTrust Manager nodes with a load balancer, each with 4 CPUs and 16 GB RAM.

  • Two clustered CipherTrust Manager nodes with a load balancer, each with 8 CPUs and 64 GB RAM.

• AWS Cloud deployments:

  • Single CipherTrust Manager with 4 CPUs and 16 GB RAM.

  • Single CipherTrust Manager with 8 CPUs and 64 GB RAM.

• Azure Cloud deployments:

  • Single CipherTrust Manager with 4 CPUs and 16 GB RAM.

  • Single CipherTrust Manager with 8 CPUs and 64 GB RAM.

• Single on-premises physical appliance, model CipherTrust Manager k470. See hardware specifications for memory and CPU values.

• Single Virtual CipherTrust Manager k170v deployed in ESXi private cloud, with 4 CPUs, 16 GB RAM, and 50 GB HDD.

CipherTrust Managers were deployed as geographically close to the k6.io client as possible, to avoid potential network latencies which can occur when crossing geographic regions.In your EKM deployment, we similarly recommend deploying the Virtual CipherTrust Manager instance geographically close to one of the Google Cloud KMS regions where you intend to set up the Google Cloud KMS Key Ring.

Network Requirements

The following ports were opened to ensure CipherTrust Manager/CCKM communication:

Type	Protocol	Port Range
SSH	TCP	22
HTTPS	TCP	443
PostgeSQL(for cluster)	TCP	5432

Test Process

The test consisted of starting a given number of virtual users to perform wrap operations on the EKM endpoint. Each user simulated a separate thread.

Total test duration was 40 seconds for each reading. The test was divided into the following increments:

• Ramp-up time was 5 seconds. Virtual users were started.

• Test duration was 30 seconds for each reading. Virtual users make wrap requests during that time.

• Ramp-down time was 5 seconds. Virtual users were stopped until there were zero active virtual users.

Repeating the Test in Your Environment

We have published the scripts used with k6.io on Github, for you to repeat the tests in your own environments as desired.

Google Cloud Deployment Results

For each environment, we chart operations per second against response time (within 90% of the operations). The Google threshold of 150 ms is shown.

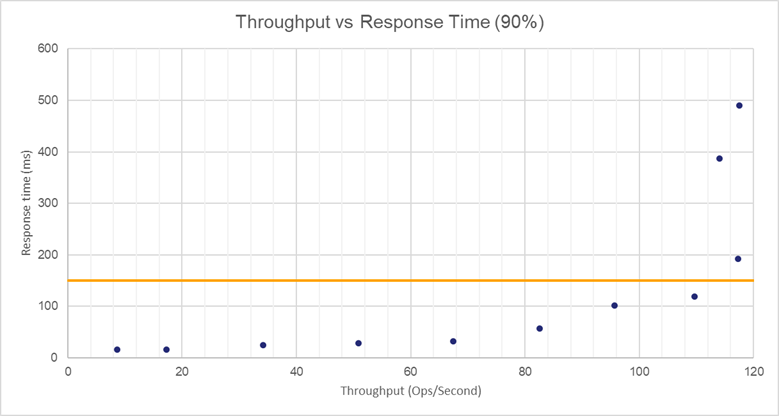

GCP Single Node Low Memory

This setup includes a single node with 4 CPUs and 16 GB memory.

Operations/Second	Time Taken
8.67	16.07
17.25	16.68
34.175	24.44
50.9	28.92
67.425	32.45
82.6	56.68
95.675	102.1
109.7	119.3
114	387.13
117.275	192.4
117.475	489.81

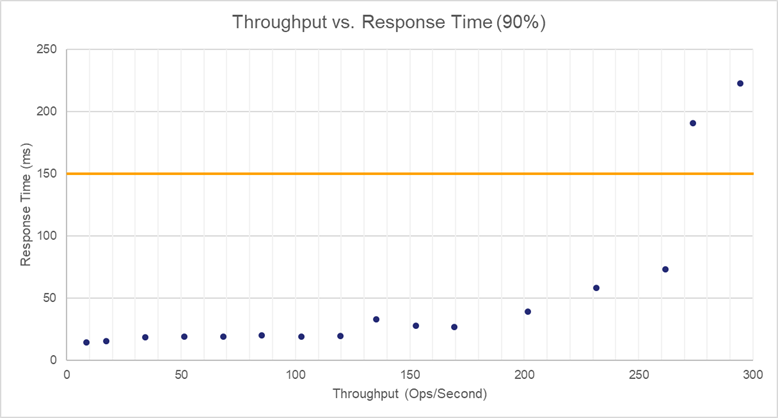

GCP Single Node High Memory

This setup includes a single node with 8 CPUs and 64 GB memory.

Operations/Second	Time Taken
8.7	14.8
17.25	15.83
34.25	18.52
51.3	19.36
68.375	19.12
85.35	20.37
102.5	19.35
119.55	19.88
135.35	33.33
152.6	27.93
169.4	26.76
201.675	39.31
231.4	58.11
261.725	73.39
273.725	190.38
294.325	222.58

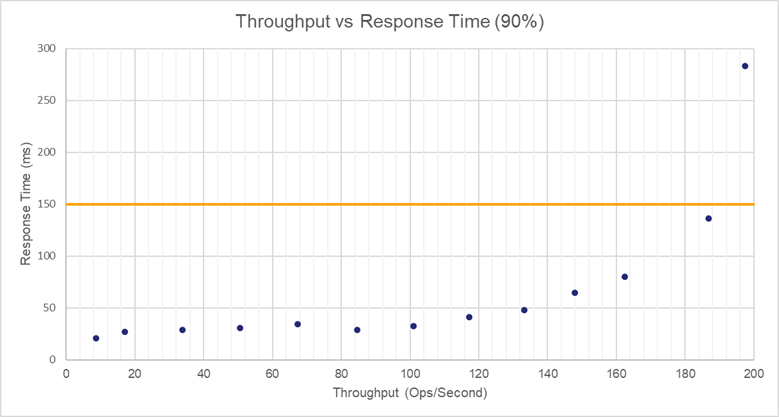

GCP Two Node Cluster Low Memory

This setup includes two clustered CipherTrust Manager nodes with a load balancer, each with 4 CPUs and 16 GB RAM.

Operations/Second	Time Taken
8.625	20.79
17	27.1
33.75	28.71
50.625	30.88
67.25	34.21
84.575	28.63
101.075	32.49
117.25	41.36
133.175	47.76
147.975	64.7
162.425	79.91
186.825	136.48
197.5	283.47

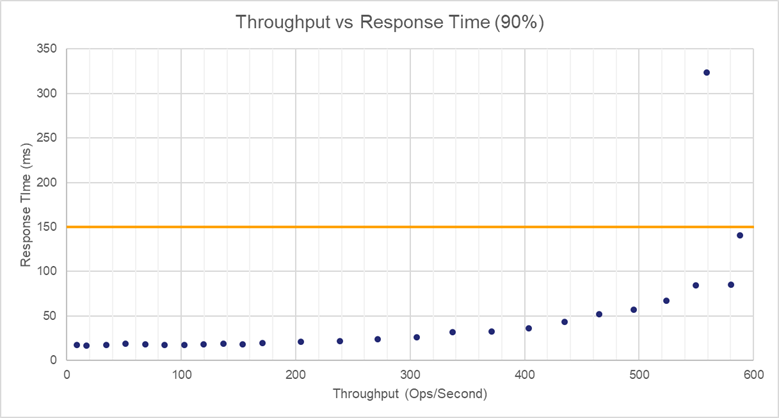

GCP Two Node Cluster High Memory

This setup includes two clustered CipherTrust Manager nodes with a load balancer, each with 8 CPUs and 64 GB RAM.

Operations/Second	Time Taken
8.675	17.32
17.25	16.73
34.25	17.38
51.35	18.74
68.5	18.05
85.6	17.62
102.65	17.62
119.7	18.16
136.575	19.03
153.825	18.31
170.775	19.57
204.75	21.01
238.525	21.77
271.775	24.16
305.45	25.95
337.25	31.64
371	32.41
403.525	35.85
435.175	43.06
464.925	52.03
495.55	57.3
524.05	66.95
549.825	84.29
558.95	323.87
580.25	85.2
587.95	140.89

Google Cloud Environment Comparisons

The Google Cloud environments can be compared on the basis of adding memory, adding CPU, and adding an additional node.

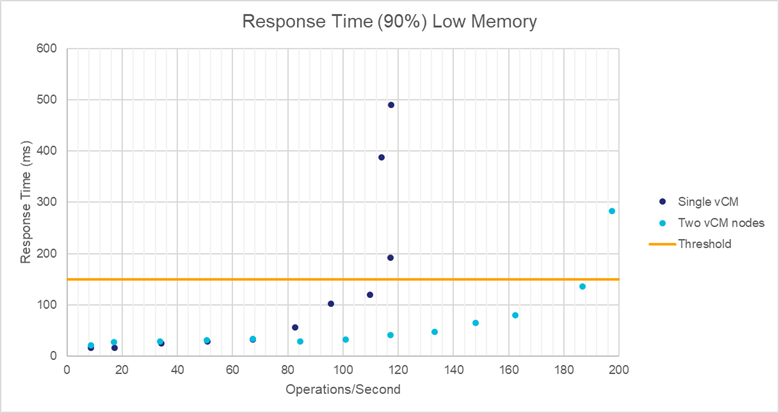

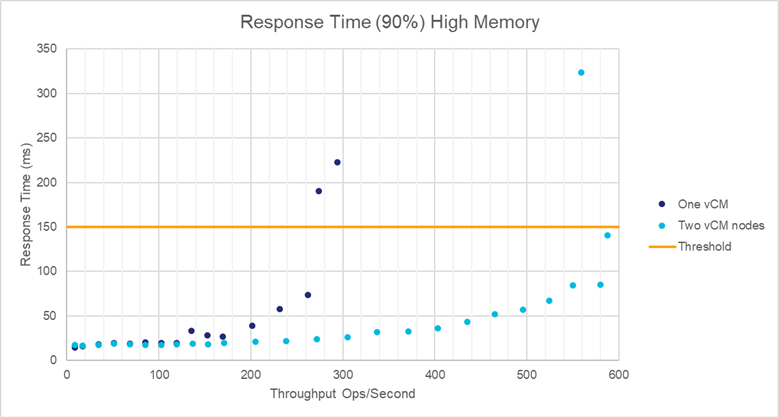

Cluster Comparisons

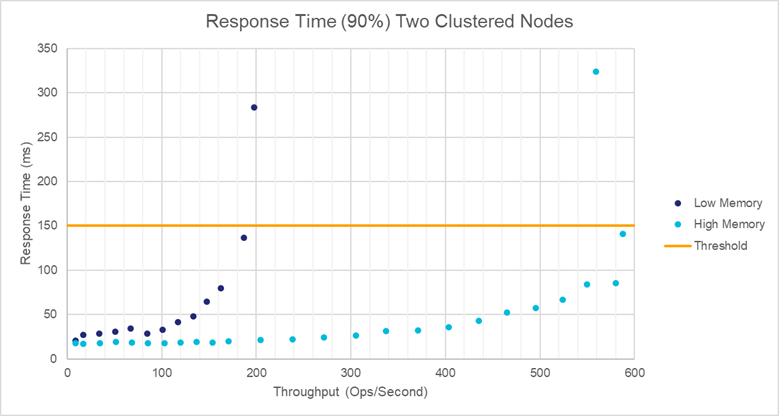

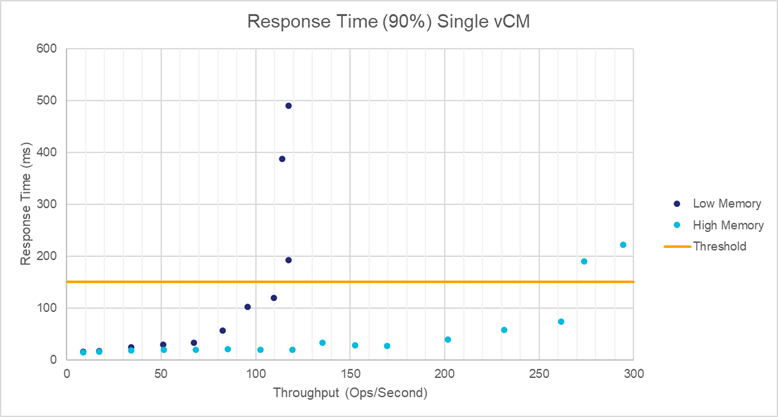

Memory Comparisons

AWS Cloud Deployment Results

For each environment, we chart operations per second against response time (within 90% of the operations). The Google threshold of 150 ms is shown.

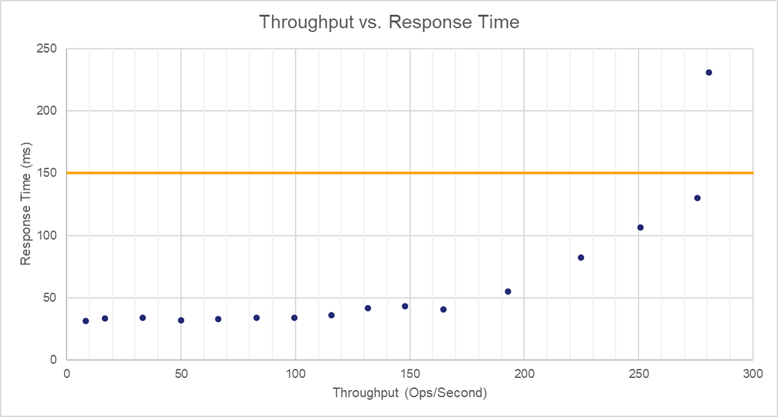

AWS Cloud Low Memory

This setup includes a single node with 4 CPUs and 16 GB memory.

Operations/Second	Time Taken
8.4	31.19
16.725	33.27
33.25	34.08
49.875	32
66.35	33.04
82.9	33.84
99.5	33.74
115.65	35.99
131.725	41.56
148.025	43.13
164.575	40.75
192.95	55.14
224.675	82.26
250.775	106.39
275.7	130.2
280.85	231.04

AWS Cloud High Memory

This setup includes a single node with 8 CPUs and 64 GB memory.

Operations/Second	Time Taken
8.425	28.51
33.25	30.23
50.075	29.84
66.55	30.59
83.425	30.14
99.975	29.69
116.35	30.4
133.275	30.09
149.825	30.07
166.25	31.54
199.325	33.12
229.95	36.57
265.35	34.5
293.85	45.65
330.775	38.24
361.775	46.67
384.225	55.3
419.75	65
446.175	73.86
483.85	74.81
507.95	104.39
528.775	119.47
559	122.65
574.125	156.26
594.85	168.8

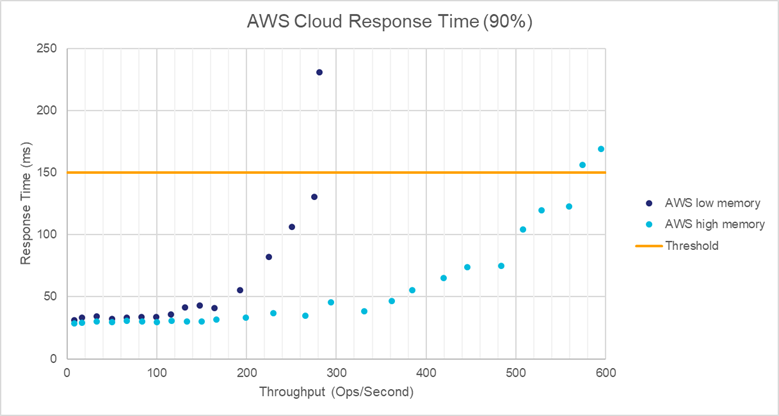

AWS Comparison

The effect of adding memory and CPUs cores can be compared on this cloud platform.

Azure Cloud Deployment Results

For each environment, we chart operations per second against response time (within 90% of the operations). The Google threshold of 150 ms is shown.

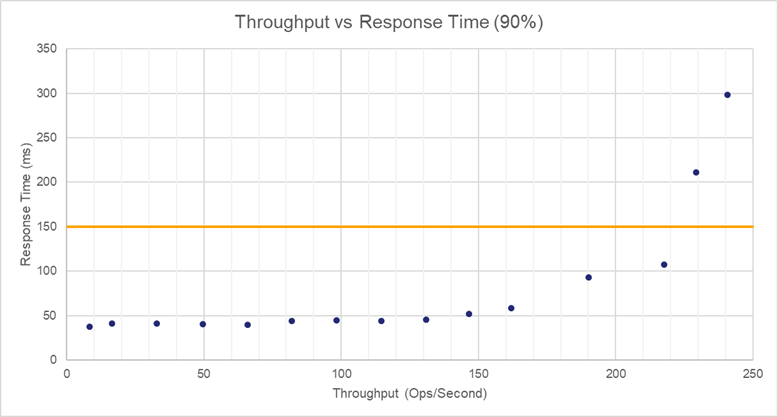

Azure Cloud Low Memory

This setup includes a single node with 4 CPUs and 16 GB memory.

Operations/Second	Time Taken
8.35	37.29
16.5	41.04
32.9	41.07
49.5	40.24
65.825	39.53
82.075	44.18
98.325	44.93
114.675	44.12
130.875	45.36
146.475	51.87
162.025	58.47
190.075	93.01
217.7	107.27
229.325	211.43
240.6	298.59

Azure Cloud High Memory

This setup includes a single node with 8 CPUs and 64 GB memory.

Operations/Second	Time Taken
8.4	31.19
16.75	32.33
33.2	32.48
49.975	31.68
66.6	30.97
83.275	30.65
99.975	30.56
116.35	33.25
132.825	33.57
148.85	37.3
165.925	35.75
197.875	40.38
229.675	50.99
260.325	60.44
296.175	43.47
325.375	57.63
359.575	57.94
388.95	55.12
416.65	77
441.3	90.91
466.425	110.47
493.475	123.4
520.125	130.77
544.575	136.45
559.7	179.1
571.8	216.89
493.775	687.56

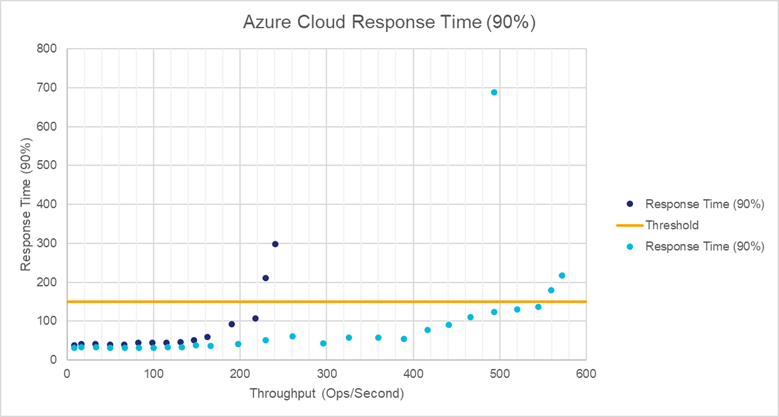

Azure Cloud Comparison

The effect of adding memory and CPUs cores can be compared on this cloud platform.

On-Premises Deployment Results

For each environment, we chart operations per second against response time (within 90% of the operations). The Google threshold of 150 ms is shown.

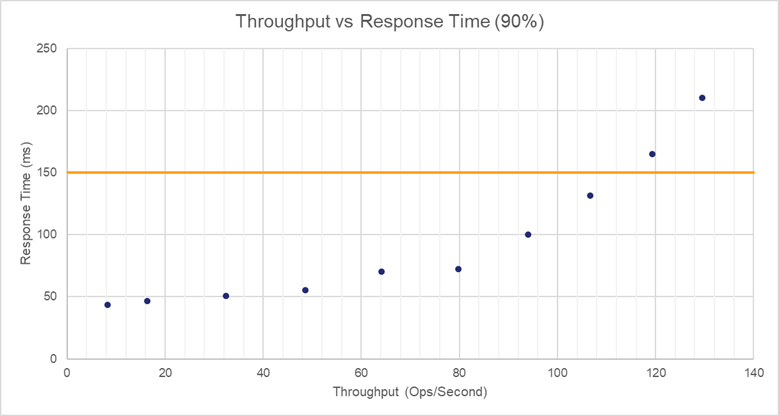

Physical Appliance

This setup includes a single on-premises physical appliance, model CipherTrust Manager k470. See hardware specifications for memory and CPU values.

Operations/Second	Time Taken
8.25	43.38
16.35	46.37
32.425	50.88
48.55	55.4
64.15	70.26
79.725	72.13
93.975	99.97
106.725	131.61
119.325	164.84
129.5	210.14

Virtual CipherTrust Manager on Private ESXi Server

Single Virtual CipherTrust Manager k170v deployed in ESXi private cloud, with 4 CPUs, 16 GB RAM, and 50 GB HDD.

Operations/Second	Time Taken
8.4	32.01
16.725	35.15
33.25	35.02
49.875	32.72
66.475	33.56
83.1	33.22
99.575	34.74
116.05	35.94
132.15	40.32
148.45	42.83
163.55	58.43
194.15	70.75
223.35	91.78
249.875	114.85
272.775	163.1
296.45	194.45
330.525	161.97
336.975	243.3
349.175	301.4
356.2	359.85
357.55	449.2

Conclusion

Adding a second load balanced node scales performance approximately linearly. A larger performance increase was observed from adding CPU and RAM in each cloud environment.
