Guarding a Device with CipherTrust Manager

After you register a client with a CipherTrust Manager, you can create as many standard GuardPoints on the client as you need. These GuardPoints can protect an entire device or individual directories.

For guarding using LDT on a local drive, or on a CIFS/Share drive, refer to CTE-Live Data Transformation with CipherTrust Manager guide.

In order to guard a device or directory, you need to use the CipherTrust Manager Console to:

1. Access the CipherTrust Manager domain in which the client is registered.

2. Identify or create an encryption key that CTE will use to encrypt the data on the device or directory.

3. Identify or create a policy for the device or directory that specifies the access controls and the encryption keys to use for the device or directory.

4. Assign a GuardPoint to the device or directory.

The following example creates a simple policy and uses it to guard a directory on a registered client. For all of the following procedures, you must be logged into the CipherTrust Manager Console as a CipherTrust Manager Administrator, and you must be in the domain with which the client is registered.

For details about any of these procedures or the options for domains, encryption keys, policies, and GuardPoints, see the CipherTrust Manager documentation.

Access the CipherTrust Manager Domain

1. In a web browser, navigate to the URL of the CipherTrust Manager Console you want to use and log in with CipherTrust Manager Administrator credentials.

2. If the client you want to protect is registered to the default domain (root), proceed to Create an Encryption Key. If you need to change to a different domain, do the following:

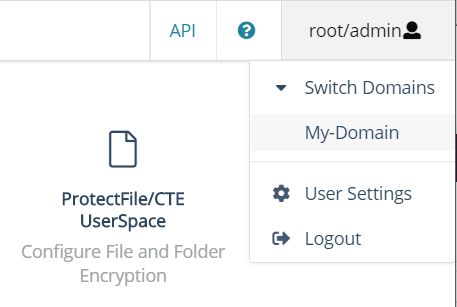

   1. In the top menu bar, click the user name root/admin on the right-hand side.

   2. Select Switch Domains, then select the domain in which the client is registered.

   3. The logged in user now shows the new domain name/user name.



Create an Encryption Key

The following procedure is based on CipherTrust Manager version 2.2. If you are using a different version, see the CipherTrust Manager documentation for the version that you are using.

1. From the Products page in the CipherTrust Manager Console, click Keys in the left hand pane.

   To navigate to the Products page from anywhere in the CipherTrust Manager Console, click the App Switcher icon in the top left corner.

2. Above the Key table, click Create a New Key.

3. In the Key Name field, add a name for the key. This name must be unique. For example, Simple-Key.

4. In the Key Usage section, make sure Encrypt and Decrypt are selected.

5. Click Create. CipherTrust Manager displays the properties for the new key.

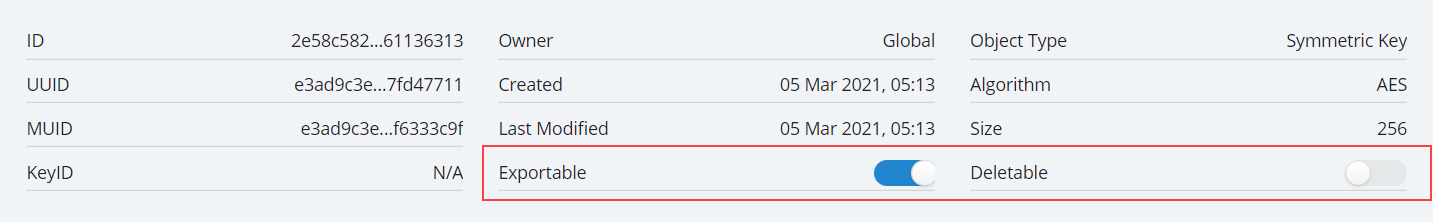

6. In the general options area, enable the Exportable option.

   You can also enable the Deletable option in this section if you want a CipherTrust Manager Administrator to be able to delete the key.



7. In the Key Access section, do the following:

   1. In the Search Groups box, type "cte".

      If no groups are displayed, make sure the Added Only option is disabled.

   2. Click the All check box for both the CTE Admins and CTE Clients groups.



   3. When you are done, click Update.

8. Click the CTE tab and set the following properties:

   • CTE Versioned: Specify whether the key is versioned. By default, the key is set as versioned.

     For a standard policy, you should clear this check box. If you do not, the key will not appear in the keys list when you add the key rule to the standard policy.

   • Persistent on Client: Specify whether the key is stored in persistent memory on the client.

     When the check box is selected, the key is downloaded and stored (in an encrypted form) in persistent memory on the client.

     When the check box is left clear, the key is downloaded to non-persistent memory on the client. Every time the key is needed, the client retrieves it from the CipherTrust Manager. This is the default setting.

   • Encryption Mode: Encryption mode of the key. The options are:

     • CBC

     • CBC CS1

     • XTS

     Encryption using the XTS and CBC CS1 keys is known as enhanced encryption.

   When you are done, click Update.

Create a Standard Policy

1. In the Applications page of the CipherTrust Manager Console, select the Transparent Encryption application.

2. In the sidebar on the Clients page, click Policies.

3. Click Create Policy. CipherTrust Manager displays the Create Policy Wizard.

4. On the General Info page, set the following options:

   Field	Description
   Name	A unique name for the policy. Make sure you use a name that is descriptive and easy to remember so that you can find it quickly when you want to associate it with a GuardPoint. This example uses "Simple-Policy".
   Policy Type	The type of policy you want to create. In this example, we will create a Standard policy.
   Description	A user-defined description to help you identify the policy later. For example: Standard policy for new GuardPoints.
   Learn Mode	Learn Mode provides a temporary method for disabling the blocking behavior of CTE/CTE-LDT policies. While useful for quality assurance, troubleshooting, and mitigating deployment risk, Learn Mode is not intended to be enabled permanently for a policy in production. This prevents the policy Deny rules from functioning as designed in the policy rule set. Ensure that the policy is properly configured for use in Learn Mode. Any Security Rule that contains a Deny effect must have Apply Key applied as well. This is to prevent data from being written in mixed states, resulting in the loss of access or data corruption. Apply Key will have no effect when combined with a Deny rule unless the policy is in Learn Mode.
   Data Transformation	If you select Standard as the policy type, also select the the Data Transformation option to tell CTE that you want to change the current encryption key used on the data in the GuardPoint, or that you want to encrypt clear-text data for the first time. This option is only displayed for Standard policies.

   When you are done, click Next.

5. On the Security Rules page, define the security rules that you want to use.

   CipherTrust Manager automatically adds a default security access rule with an action of key_op and the effects Permit and Apply Key. This rule permits key operations on all resources, without denying user or application access to resources. This allows it to perform a rekey operation whenever the encryption key rotates to a new version.

   To add additional security rules, click Create Security Rule and enter the requested information. For details about adding security rules, see the CipherTrust Manager documentation.

   When you are done, click Next.

6. On the Create Key Rule page, click Create Key Rule and enter the following information:

   Field	Description
   Resource Set	If you want to select a resource set for this key rule, click Select and either choose an existing resource set or create a new one. Resource sets let you specify which directories or files will either be encrypted with the key or will be excluded from encryption with this key.
   Current Key Name	Click Select to choose an existing key or create a new one. If the data has not yet been encrypted, select clear_key. Otherwise select the name of the non-versioned key that is currently being used to encrypt the data. In this example, select clear_key.
   Transformation Key Name	Click Select to choose an existing versioned key or to create a new one. CTE uses the versioned key specified in this field to encrypt the data in the GuardPoint. If the data is currently encrypted, CTE decrypts it using the key specified in the Current Key Name field and re-encrypts it using the key specified in this field.

   When you are done, click Next.

7. On the Data Transformation page, click Create Data Transformation Rule and enter the following information:

   Field	Description
   Resource Set	If you want to select a resource set for this key rule, click Select and either choose an existing resource set or create a new one. Resource sets let you specify which directories or files will either be encrypted with the key or will be excluded from encryption with this key.
   Transformation Key Name	Click Select to choose an existing key or to create a new one. CTE uses the key specified in this field to encrypt the data in the GuardPoint. If the data is currently encrypted, CTE decrypts it using the key specified in the Current Key Name field and re-encrypts it using the key specified in this field. For this example, select the key Simple-Key you created in Create an Encryption Key.

   When you are done, click Next.

8. Click Next.

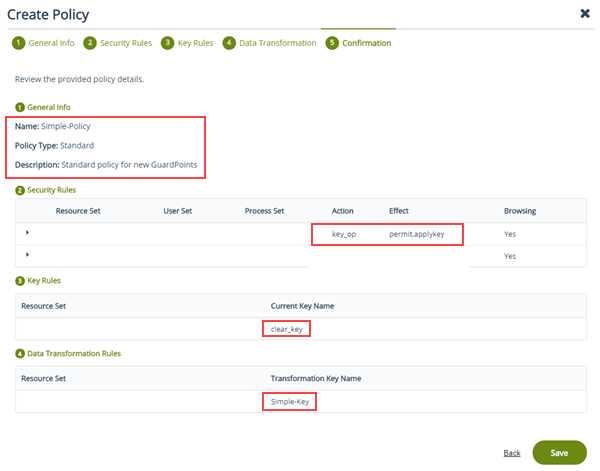

9. On the confirmation page, review the information for the policy and click Save.



Create a GuardPoint

Caveats

• You cannot have a symlink reside inside of a GuardPoint that is pointing to another location in that same GuardPoint

• You cannot have a symlink reside inside of a GuardPoint that points to the root of that same GuardPoint

Prerequisites

• Stop all applications that are accessing the device you want to protect. In this example, we are going to protect the following directories with the same policy and encryption key.

  • C:\HR Files\

  • C:\Accounting Files\

  • C:\Shared Resources\HR\

  • C:\Shared Resources\Accounting\

  If you want to encrypt data without taking the device offline, you must use CipherTrust Transparent Encryption - Live Data Transformation.

Procedure

1. In the Applications page of the CipherTrust Manager Console, select the CTE application.

2. In the Clients table, click on the name of the client you want to protect.

3. Above the GuardPoints table, click Create GuardPoint.

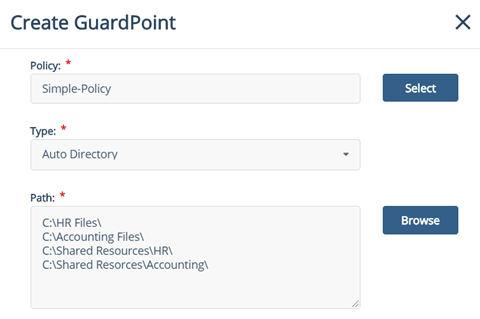

4. In the Create GuardPoint page:

   1. In the Policy field, select the policy you created earlier.

   2. In the Type field, select the type of device. You can guard a directory or a raw/block device. For this example, select Auto Directory.

   3. In the Path field, enter the directories you want to protect with this policy or click Browse to select them from a explorer window.

      If you want to enter multiple paths, put each path on its own line. For example:



   4. Click Create.

   5. If you want to use the same policy and GuardPoint type on another path, click Yes when prompted. Otherwise, click No. For this example, click No.

   The CTE clients pull the GuardPoint configuration information from the CipherTrust Manager.

5. Type the following to transform the data:

    dataxform --rekey --print_stat --preserve_modified_time --gp <pathToGP>


   When the data transformation has finished, applications can resume accessing the now-protected data. (See the CTE Data Transformation Guide for more information.)

Creating Ransomware Protection GuardPoints

Steps to create GuardPoints on individual clients and client groups are similar. GuardPoints can be created on the GuardPoints tab of individual clients and client groups.

To create an RWP GuardPoint:

1. Open the Transparent Encryption application.

2. Select the client or client group on which you want to create a GuardPoint.

   • Click an RWP-enabled client under the Client Name column (Clients > Clients). These are the clients with RWP or CTE RWP as Protection Mode.

   • Click a client group under the Client Group Name column (Clients > Client Groups).

3. On the GuardPoints tab, click Create GuardPoint.

   When creating an RWP GuardPoint, (for volumes, without encryption) you do not need to specify a CTE policy. So, for clients with the RWP protection mode, the Policy field is unavailable.

   On clients with the CTE RWP protection mode, (for GuardPoint, with encryption), you can create RWP GuardPoints as well as other types of GuardPoints with policies. So, the Policy field is available for such clients. Although the field is available, do not select any policy when creating an RWP GuardPoint.

   Refer to Protection Modes for information on CTE protection modes.

4. (For clients with the CTE RWP protection mode) Select Ransomware Protection as the Type of device to protect. This is a mandatory field.

   For clients with the RWP protection mode, Ransomware Protection is the default Type and cannot be modified.

5. Specify the Path (volume or network share) to be protected. This is a mandatory field. Options to specify the GuardPoint paths are:

   • Enter/Browse Path: Select this option, and enter the volume path (for example, C:\, or D:\, or shared volume) by either typing or clicking the Browse button.

     Note

     • Ransomware Protection GuardPoints are applied at the volume level. Even if you specify the path of a folder or a file, the GuardPoint will be applied at the volume level.

     • If you specify a network share, all the network shares to be mounted subsequently will be protected.

     • A CTE client administrator can configure protection of all existing volumes and mount points, and those to be added to the client subsequently. Refer to the CTE Agent for Windows Advanced Configuration Guide for details.

     A maximum of 200 GuardPaths can be specified using the Enter/Browse Path option.

     Browse Method

     1. Click Browse to select the volume by browsing the client file system. This method prevents typographical errors and verifies client availability. This is the recommended method to specify individual paths.

        File system of a client that is not registered with the CipherTrust Manager cannot be browsed.

     2. In the Enter Path field, specify the volume path. Alternatively, in the Select Path field, select the path from the on-screen file system browser, and click Select Path.

     3. Click Add.

     Manual Method

     Alternatively, if you know the volume, manually enter volume in the given text box. Enter one volume per line.

   • Upload CSV: Select this option and click Browse to upload the CSV file containing the list of one or more paths. This is the recommended method to specify a large number of paths in one step.

   If a manually entered path does not yet exist, check that you entered the path correctly. The CipherTrust Manager does not parse manually entered paths for correct syntax.

6. Click Create. A message appears prompting to confirm the reuse of these GuardPoint settings on another path.

   • Click Yes to use the same settings on another path. The Use Settings on Another Path dialog box is displayed. Perform the following steps:

     1. In the Enter Path field, specify the path. Alternatively, in the Select Path field, select the path from the on-screen file system browser, and click Select Path.

     2. Click Add Path. The newly added path appears under the Paths list on the left. Similarly, add as many paths as required.

     3. Click OK.

   • Click No if you do not want to use the same settings on another path.

7. Check the GuardPoint status, type:

   secfsd -status guard


Setting Sensitivity

To get the best results for sensitivity:

1. Initially, set the operation mode to Monitor when you create your Ransomware Protection profile. Monitor mode sets the sensitivity to a lower score.

2. Monitoring mode will generate a list of many false positive results. Add the false positives entries to your process set to exempt them from monitoring.

3. When false positives are no longer reported, set the operation mode to Block, to block the relevant suspicious behaviors.
