Install CDP on a SQL Server node configured with availability group

CDP for MSSQL allows installing CDP on database that is configured for Availability Group feature of SQL Server. This database is a different instance of SQL Server where full installation of CDP is performed.

Prerequisite

Complete installation of same CDP version must be performed on the SQL Server instance. Refer to Quick Start for details.

Steps

Only the program files (DLL, properties file, etc.) are installed on the machine hosting the Availability Group enabled database and creates a login called SafeNetCLRLogin. SafeNetCLRLogin is mapped to an asymmetric key used to sign assembly SafeNetCLR in metadata.

1. Double-click the setup.exe to launch the CipherTrust Database Protection for MS SQL Server InstallShield Wizard and click Next.



2. On the License Agreement screen of the InstallShield Wizard, select the I accept the terms of the license agreement option and click Next.

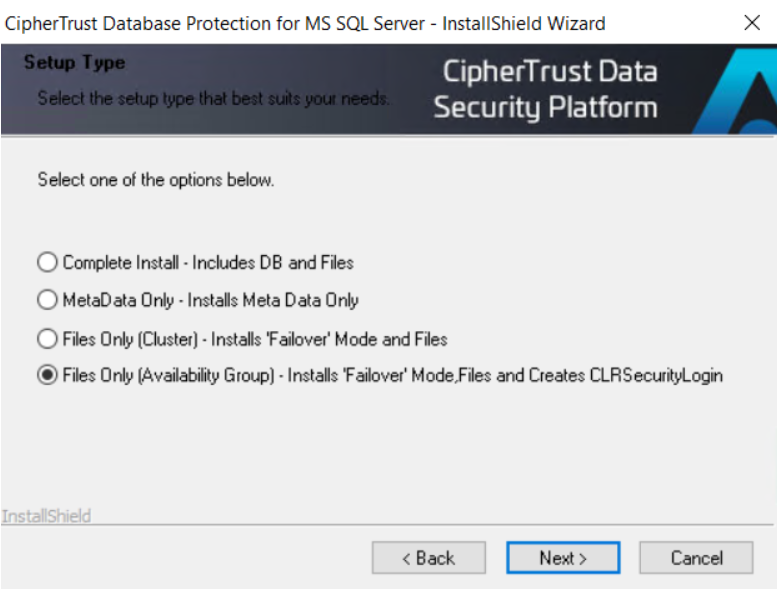

3. On the Setup Type screen of the InstallShield Wizard, select Files Only (Availability Group )- Installs Failover Mode and Creates CLRSecurityLogin and click Next.



4. On the Choose Destination Location screen of the InstallShield Wizard, provide a destination for the setup and files and click Next.

For a list of files the installer loads, see Installed Files.

1. On the Database Connection screen of the InstallShield Wizard, enter the database connection parameters and click Next.



   The following table lists the parameters that are required when creating database connection.

   Parameter	Description
   Server Hostname or IP Address	The hostname or IP address of the machine where SQL Server is installed. The default is local. In case of SQL Cluster setup, the IP address of the virtual server should be specified here.
   Instance Name	The default instance name is MSSQLSERVER. It might be the case that there are multiple instances of the database installed on your local machine.
   SQL Server Authentication or Windows Authentication	Type of authentication to install CDP. When the Windows Authentication option is selected, the logged in user’s Windows authentication is used to connect to the database.
   Database User Name	Specify the database user name when using SQL Server authentication. In case of Windows authentication, the logged in user’s name is displayed. The user name used for the database connection must be a member of the sysadmin fixed server role to permit the creation of extended stored procedures.
   Database Password	The password for the database user specified above. For Windows authentication, it is not editable as the logged in Windows user’s password is used.

2. On the NAE Server Configuration screen of the Installation Wizard, enter the parameters to configure NAE Server and click Next.



   The following table lists the parameters that are required for NAE Server configuration.

   Parameter	Description
   IP address of NAE Server	The IP address of the NAE Server(s) that this client sends requests to. If you have a cluster of NAE Servers that you send requests to, specify the entire cluster here. You should separate IP addresses with a colon. You must specify an IP address and not a hostname.
   NAE Server Port	The port on which your NAE Server is listening to client requests; the default port is 9000.
   Connection Protocol	The protocol on which the NAE Server is establishing client connections. The default is TCP/IP. If you are setting up your CipherTrust Manager for the first time, it is recommended that you first establish connections over TCP/IP, and then gradually move on to SSL.

   If you select Connection Protocol as SSL, following screen appears.



   The following table lists the parameters required for configuring SSL connection.

   Parameter	Description
   Server side authentication only	Select this option if you want only server side authentication to establish SSL connection between the NAE Server and the client. On selecting this option, client side authentication related parameters: Client Certificate File, Private Key File, Private Key Passphrase, and Confirm Passphrase are disabled.
   CA Certificate File	Location of the CA certificate that signed the certificate, which the NAE Server presents during the SSL handshake. This parameter is required for the client to trust the server. Rest of the parameters are required only if the NAE Server is enforcing client certification authentication, which means that the client must provide a certificate trusted by the server to establish a connection with that server.
   Client Certificate File	The location of the client certificate used to establish SSL connections with the NAE Server.
   Private Key File	The private key associated with the certificate.
   Private Key Passphrase	The passphrase associated with the certificate.
   Confirm Passphrase	Re-enter the passphrase.

3. On the Provider Configuration screen of the Installation Wizard, enter the CDP configuration information and click Next.



   The following table lists the parameters required for configuring provider.

   Parameter	Description
   Connection Pool	Determines the number of connections that are reserved for the stored procedures and UDFs to connect to the database. The default value is 10.
   Logging Level	Determines the level of logging that you want for CDP. The default is Log Errors and Warnings.
   Log File Directory	Specifies a name, and possibly a path, for the log file. The default is: C:\Program Files (x86)\CipherTrust\CDP_MSSQLServer\MSSQLSERVER
   Log Rotation Frequency	Specifies whether logs are rotated daily or once they reach a certain size. The default is Daily.
   Maximum Log File Size	Specifies a size at which log files are rotated. This parameter is disregarded if the Log_Rotation is set to anything other than “SIZE.” The default is 100k (KB).

   The installer now has all of the necessary information.

4. On the Ready to Install the Program screen of the Installation Wizard, click Install.



   The installer displays the progress of the installation.

   Note

   When prompted, click Yes to restart the SQL Server service. It might take a few seconds. If you click No, a message appears stating, “SQL Server (<instance_name>) has not been restarted. Please restart it manually at a later time for database changes to take effect.” Click OK to continue.

   If for some reason, the SQL Server service could not be restarted by the installer (for example, if the dependent service, SQL Server Agent, is started), then a message appears stating, “Failed to stop service, Please restart the service manually.” Click OK to continue. You can restart the service after installation for the database changes to take effect.

5. After the files are installed, click Finish to complete the installation.



Installed Files

The following sections describe what gets installed with CDP. In addition to the metadata installed in the database, the following program files are installed in the local file system. The default directory for these files is: C:\Program Files (x86)\CipherTrust\CDP_MSSQLServer\MSSQLSERVER.

Apart from these installed files, the installer does the following during a full installation:

• Creates tables, stored procedures, and user defined functions in the database you specify. The tables and stored procedures start with “ING_....” For example, ING_AUTHORIZED_USER is one of the tables that gets installed.

• Creates one stored procedure (ing_get_metadata_info) in the master database.

• Creates one stored procedure (ing_reload_propertyfile_value) in the metadata.

• Creates an assembly called SafeNetCLR in metadata. This assembly is marked as UNSAFE to gain ‘external access’ required to work with KS/DS.

• Creates a Login SafeNetClrLogin which is mapped to an asymmetric key used to sign assembly SafeNetCLR.

• Makes entries in the Microsoft Windows registry.

• Installs a properties file called CDP_MSSQLServer.properties in the installation directory.

• Installs a utility in the install directory that can be used to issue certificate requests. The files associated with the certificate request utility are openssl.conf and req.exe.

• Trustworthy property of the metadata is kept as FALSE.
