Synchronization Agent

alt_text

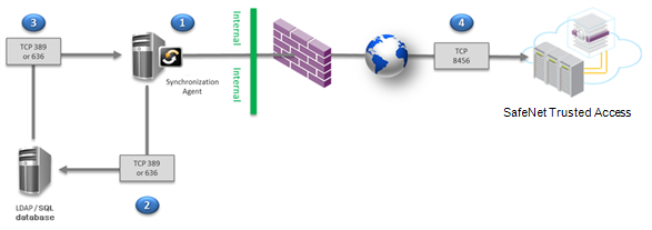

  1. The client organization:

    1. Installs SafeNet Synchronization Agent within their secure network on a server that is separate from their LDAP or SQL directory server.

    2. Imports an encrypted key file into SafeNet Synchronization Agent.

    3. Configures a connection between its LDAP or SQL directory server and the agent.

    4. Configures the agent with a list of the user groups in the LDAP or SQL directory server that are to be synchronized with STA.

  2. The agent queries the LDAP or SQL directory server for all users within the configured groups.

  3. The LDAP or SQL directory server transmits details of the users within the configured groups to the agent. The agent stores these details.

  4. When the synchronization service is started, the agent pushes all user and group information to STA. The agent queries the organization’s LDAP or SQL directory server periodically (by default, every 20 minutes). When a change to the organization’s users or groups is detected, the agent updates STA.

copy link to clipboardSafeNet Synchronization Agent features

Most organizations maintain information about their users and groups in an SQL database or in an LDAP directory such as Active Directory (AD). SafeNet Synchronization Agent auto-populates STA with that information.

Key features of SafeNet Synchronization Agent include the following:

  • Can be used directly with common user repositories

  • Can accommodate custom schemas for most LDAP and SQL directory servers

  • Does not write to the user source

  • Does not require an administrator account to connect to the user source

  • Can synchronize multiple user sources, such as multiple LDAP or SQL directory servers

  • Uses AES encryption between SafeNet Synchronization Agent and STA

  • Supports SSL between SafeNet Synchronization Agent and the LDAP or SQL directory server

  • Supports optional domain password synchronization from AD user sources

copy link to clipboardSafeNet Synchronization Agent environment

Environment Description

Supported Platforms
  • Windows Server 2022
  • Windows Server 2019 - Desktop Experience option
  • Windows Server 2016
  • Windows Server 2012 R2

    NOTE: If you attempt to install SafeNet Synchronization Agent v3.5.3 on Windows Server 2012 R2 without .NET 4.6.2, the installer will prompt you to first install .NET 4.6.2 (which requires Windows updates: KB2919355 and KB2919442). Links for these software components are provided in this table.

  • Windows Server 2012
  • Windows Server 2008 R2 SP1 (64-bit)
Additional Software Components

Network Ports
  • LDAP: TCP Port 389 - TCP Port 636 (optional)
  • STA: TCP Port 8456 (required)
  • SQL: Appropriate TCP port

LDAP Directory Server Access or SQL Access
  • Read-only

Active Directory Server Access (for optional domain password synchronization)
  • Read-only

Supported LDAP or SQL User Groups
  • Single or multiple LDAP or SQL groups

Supported LDAP Directory Servers
  • Active Directory
  • Novell eDirectory 8.x
  • Sun One 5.x

Supported SQL Servers
  • MS SQL
  • MySQL (requires MySQL .NET Connector)
    See Additional Software Components.
  • Oracle
  • PostgreSQL

copy link to clipboardHigh availability recommendations

A high availability configuration with multiple Synchronization Agents ensures there is no single point of failure. Your configuration should include:

  • Multiple Synchronization Agents with identical schema and group configurations

  • Identical content among the LDAP servers that are configured

note

Note

If agent configurations are not synchronized or the contents of the LDAP directory servers differs, the synchronization agents will work against each other, as all agents are active. Active/passive configuration is not available.
