Performing Initial Data Transformation for DPG Compatibility

CipherTrust Batch Data Transformation (BDT) performs the initial, one-time encryption of existing plaintext data to make it compatible with the CipherTrust Data Protection Gateway (DPG). This process uses a BDT policy file to encrypt the data with the same protection policy that DPG will use for ongoing operations.

Steps for Initial Transformation of Data

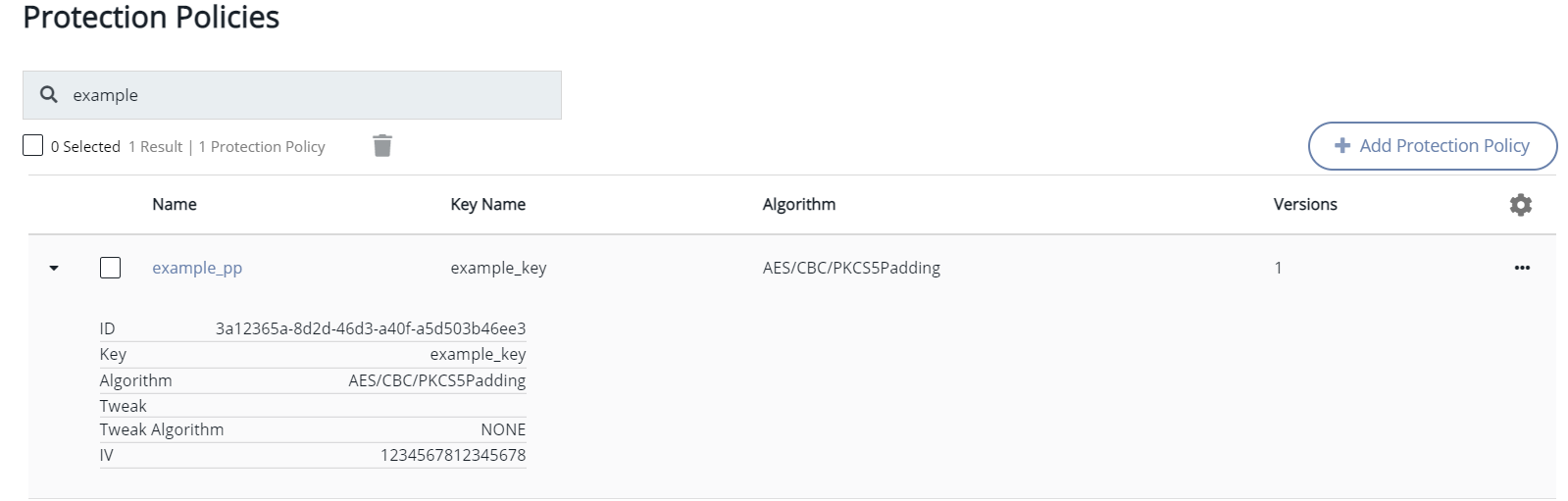

1. Create protection policy on CipherTrust Manager. Refer to the Creating Protection Policy for details.

2. Create a BDT policy file using the same protection policy configurations defined in the previous step. Refer to the table below to map the attribute of BDT policy with the corresponding protection policy fields.

   Protection Policy Fields	BDT Policy Attributes
   Algorithm	@type
   Key Name	key
   IV	iv
   Tweak	tweak
   Tweak Algorithm	tweakAlgo
   Character Set	characterSet
   Version	policyVersion

   Refer to the table below for algorithm name mappings between CipherTrust Manager and BDT policy file.

   Algorithm name on CipherTrust Manager	Algorithm name in BDT Policy
   AES/CBC/PKCS5Padding	AES_CBC_PAD
   FPE/AES	FPE_AES

   Following are the snippets of BDT policy for FPE_AES and AES_CBC_PAD respectively:

   BDT policy configuration for FPE_AES

       "config":[
                   {
                   "@type":"FPE_AES",
                   "key":"key1",
                   "tweak":"010ACD5B99F3C343",
                   "characterSet":"alphanumeric",
                   "policyVersion":1 /* Version of protection policy on ${cm} GUI to be used only for Initial Encryption of DPG. */
                   }
               ]


   BDT policy configuration for AES_CBC_PAD

       "config" : [
                   {
                   "@type" : "AES/CBC/PKCS5Padding",
                   "key" : "example_key",
                   "iv" : "1234567812345678",
                   "policyVersion" : 1 /* Version of protection policy on ${cm} GUI to be used only for Initial Encryption of DPG. */
                   }
               ]


3. Run the transformation using the configured BDT policy. After the transformation is complete, DPG can process data using the existing protection policy created in the previous steps, or you may choose to create a new one.
