Amazon Web Services Deployment

You can deploy a CipherTrust Manager image within Amazon Web Services (AWS).

Minimum Requirements

To deploy a CipherTrust Manager instance, the following minimum requirements apply:

• System volume: 50 GB for evaluation, 100 GB for production

• Memory: 16 GB

• vCPUs: 2

• NICs: 1

Provisioning the AMI

AWS region-specific, and confidential Virtual CipherTrust Manager images (AMI) are obtained by provisioning. Provisioning places a CipherTrust Manager AMI in your target AWS account in the target region(s).

Use the SafeNet Cloud Provisioning System, to customize a k170v AMI for a specific region.

1. Login to the Thales Customer Support Portal.

2. Navigate to the My Provisioning Requests page, through the Tools > Provisioning Requests menu.

3. Click Create Provisioning Request.

4. Select CipherTrust Manager from the Product Name dropdown.

5. Select the desired Product Version from the dropdown.

   Note

   We recommend deploying the most recent version for the latest security fixes and most current features.

6. Select the desired AWS Region from the dropdown.

7. Provide your AWS Account Number.

8. (Optional) If desired, type in the names of Additional Regions in the text field, to deploy AMIs in more than one region.

9. (Optional) If desired, adjust the Priority. The default priority is 3-Medium.

10. Click Submit.

    A Thales client services engineer will receive and work on the request.

    When your provisioning request is completed, you will an email notification with the subject line Cloud Provisioning Request Complete. Alternatively, you can periodically check the provisioning request status directly on the My Provisioning Requests page.

11. Retrieve the AMI ID from the completed provisioning request.

    1. Navigate to the My Provisioning Requests page, through the Tools > Provisioning Requests menu.

    2. Click on the name of the completed provisioning request. The Status column indicates requests that are completed.

12. Proceed to deploy the Virtual CipherTrust Manager image.

Deploying in AWS

This section provides the steps for deploying a Virtual CipherTrust Manager k170v instance in AWS.

Prerequisites

• A provisioned Virtual CipherTrust Manager AMI.

• If using a Windows client use PuTTY or similar utility to SSH to your k170v instance as KeySecure Administrator (ksadmin).

  If needed, use PuTTYgen or similar utility to format the SSH Key Pair.

• If using a Linux client use SSH to login as KeySecure Administrator (ksadmin).

To launch a CipherTrust Manager k170v instance in AWS

1. Sign in to your AWS account at the AWS portal at: https://aws.amazon.com

2. In the Compute group, select EC2 service.

3. On the AWS top bar and to the right, make sure you select the AWS Region you provisioned for your AMI.



4. In the left pane, under the Images, select AMIs and search for the provisioned AMI (e.g. ami-1f6b5b60).

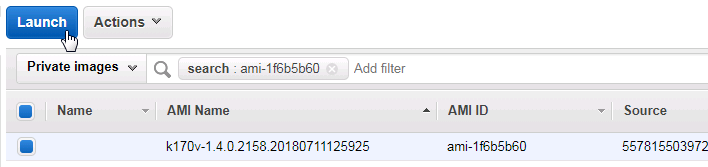

5. Select your image and then click on Launch.

6. In the Choose an Instance Type screen, choose t2.medium or larger and then select Next: Configure Instance Details.

7. In the Configure Instance Details screen,

   1. Create a new Network and Subnet or select one that you have already created.

   2. At the bottom of the screen there is a section Advanced Details.

      Any information that you need configured before the first boot must be entered here in the user data area. See Plan Configuration Settings for Cloud Init.

   3. Select Next: Add Storage.

8. In the Add Storage screen, select the desired Size (GiB).

   • Enter 100 GiB if this is for Production.

   • Enter 30 GiB if this is for lab use.

   Select Next: Add Tags.

9. In the Add Tags screen, select Add Tag

   1. Enter Tag: Name

   2. Value: , e.g "k170v for lab use"

   3. Select Next: Configure Security Group.

10. In the Configure Security Group screen:

    1. Create a new security group or re-use a previously created group.

    2. Refer to Network Security Groups. Consider adding all of the recommended rules.

       Note

       To launch the CipherTrust Manager, you need at a minimum Port 22 inbound/outbound for ksadmin's SSH connection and Port 443 for an HTTPS connection to the GUI.

    3. Select the Review and Launch screen.

11. In the Review Instance Launch screen:

    1. Review your launch configuration settings.

    2. Make any changes by selecting the Edit ... at the right of each section.

    3. After your review, select Launch.

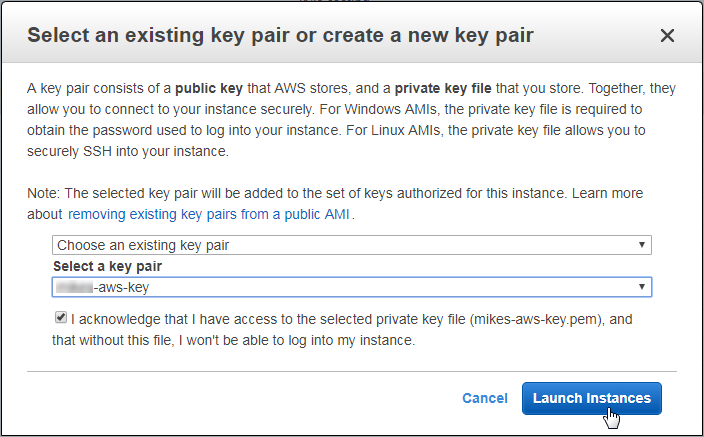

       You are presented with this dialog box to select a key pair.



    4. Select which Key Pair option to use. The key pair should be in Linux (PEM) format, not OpenSSH format. Valid options are:

       • Choose an existing key pair from the drop-down list. If your key pair is not on this list, you can import it here:

         Services > EC2 > Network and Security > Key Pairs

       • Create a new key pair. (This option allows you to download your own key pair.)

    5. After selecting the Key Pair, check off the acknowledge statement at the bottom of the dialog box, confirming that you have access to the selected private key file.

       Warning

       It is important that you have access to the key pair you select, otherwise you will not have permissions to perform administrator operations like performing upgrades, advanced logging or an appliance reset.

12. Select Launch Instances.

    The Launch Status screen appears. You can review the launch process on this screen.

    Note

    It can take a several minutes for your instance to launch.

13. Select View Instances to view the state of your instance as it is being launched. You may need to search for the name of your instance in the Instances table if it is among many others.

    At this point, if you wish to connect as System Administrator (ksadmin) to perform system level duties, duties such as performing network configurations, system upgrades, continue with the next step.

    Note

    Refer to Groups for a more detailed list of ksadmin duties.

    Otherwise, browse to step 18 to connect to the CipherTrust Manager k170v Web Page.

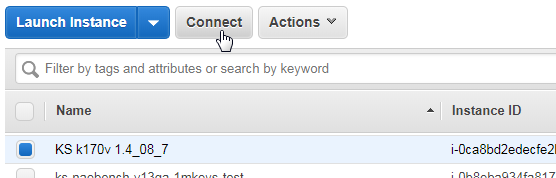

14. Select your instance in the table and then select Connect.

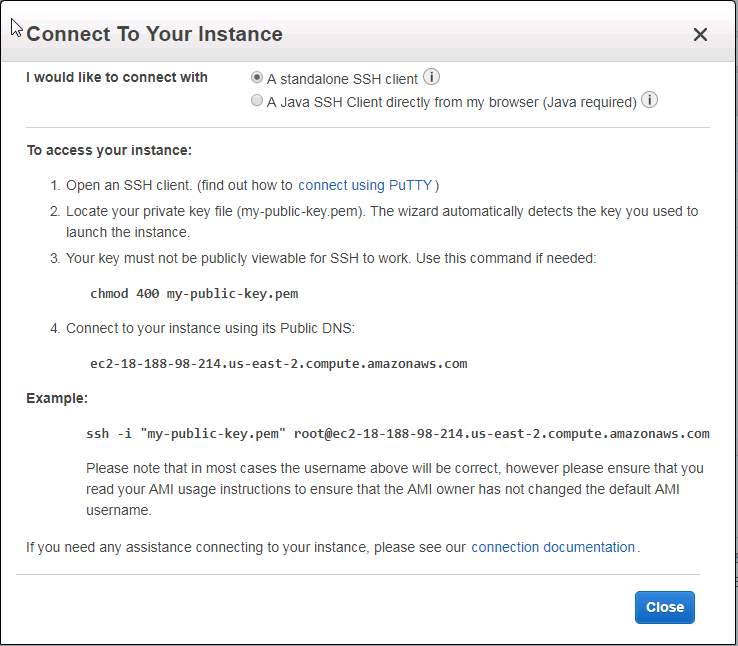

    The Connect To Your Instance dialog box appears:



15. Copy the instance Public DNS string, for example: ec2-54-89-148-184.compute-1.amazonaws.com

16. If using PuTTY, begin a new session.

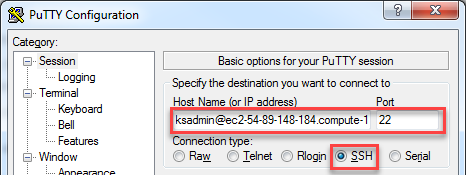

    1. Paste the Public DNS in the Host Name (or IP address) field and preface this string with "ksadmin@".

    2. Set the Connection Type to SSH.



17. In the Category pane:

    1. Select Connection > SSH > Auth.

    2. Select Browse and navigate to the folder with your Private Key.

    3. Select your Public Key file name. The file name and path is automatically places in the Private key file for authentication field.

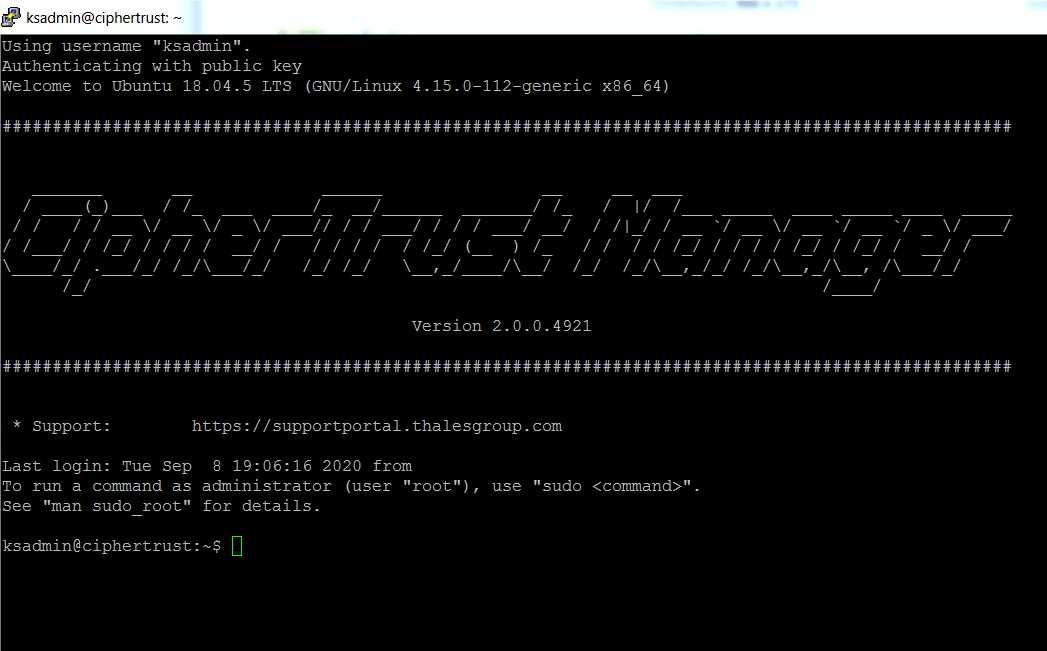

    1. Select Open. The following k170v ksadmin screen appears:



       Note

       If you are unable to connect to your instance using PuTTY, go to: https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/putty.html for further assistance.

18. Connect to the CipherTrust Manager k170v Web Page.

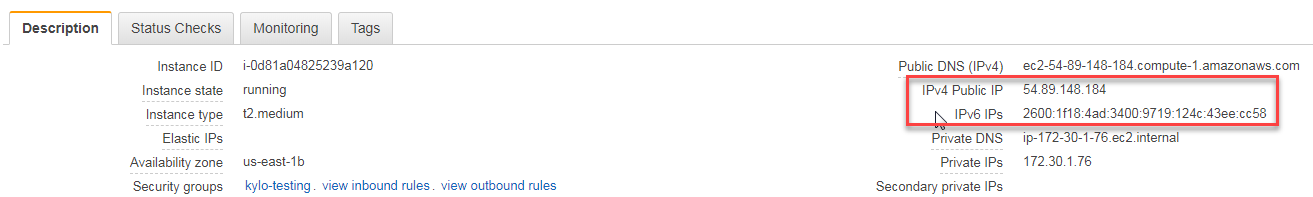

    1. Copy the IPv4 Public IP or IPv6 IP address shown in the Instances > Description tab of your AWS instance.



    2. Browse to HTTPS://. The Log In screen appears.



19. Log in using the initial default credentials: Username = admin, Password = admin

    The following notice is displayed:



    Note

    If the default credentials do not work, you may need to retrieve an autogenerated password, as described in Changing the Initial Password.

20. Enter a new password using this default Password Policy:

    Min length: 8
    Max length: 30
    Min number of upper cases: 1
    Min number of lower cases: 1
    Min number of digits: 1
    Min number of other characters: 1


    A new Login screen appears.

21. Using your new password, log in again. The CipherTrust Manager k170v Web Page appears.



Congratulations! You have successfully deployed your CipherTrust Manager k170v instance.

Enhanced Networking

The CipherTrust Manager k170v AMI ships with Elastic Network Adapter (ENA) enabled. ENA provides high-performance networking on supported EC2 instance types. For more information visit https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/enhanced-networking.html.
