Enabling Java Logger in REST Web Services

Enabling Java logger in REST Web Services includes the following steps:

1. Updating the JAVA_HOME files

2. Configuring CT-V Related Files

3. Recreating the tmrest.war file

Important Notes

• If CT-V is already installed on the Oracle WebLogic Server, remove all the instances of previously installed CT-V.

• For details on the usage of the CT-V REST APIs, refer to CipherTrust Vaulted Tokenization REST APIs.

• Ensure the following jar files are downloaded and copied to the /WEB-INF/lib directory (where the tmrest.war file will be extracted). The /WEB-INF/lib directory already contains cxf related jar files but with different versions. It is recommended to replace those files with the versions listed below.

  • cxf-core-3.0.12.jar

  • cxf-rt-security-3.0.12.jar

  • cxf-rt-frontend-jaxrs-3.0.12.jar

  • cxf-rt-transports-http-3.0.12.jar

  • cxf-rt-rs-service-description-3.0.12.jar

Updating the JAVA_HOME Files

Follow the steps described here to update the JAVA_HOME files:

Follow the steps described here to update the JAVA_HOME files:

1. Copy the following files from the /SafeNetTokenization/CADP_for_JAVA/lib/ext directory to the /JAVA_HOME/jre/lib/ext location. These files are used by the Oracle WebLogic Server:

   • CADP_for_JAVA.properties

   • CADP_for_JAVA-8.17.0.002.jar

   • commons-collections4-4.4.jar

   • commons-lang3-3.14.0.jar

   • failureaccess-1.0.2.jar

   • gson-2.10.1.jar

   • guava-33.1.0-jre.jar

   • log4j-api-2.23.1.jar

   • log4j-core-2.23.1.jar

2. Update the following parameters of the CADP_for_JAVA.properties file:

   • NAE_IP.1: <IP address of the Key Manager>

   • NAE_PORT: <NAE Port>

   • Log_File: <Path of the log file with required permissions>

   • LoggingUtility=JavaLogger

Configuring CT-V Related Files

Follow the steps described here to configure CT-V specific files:

1. Create a folder named myconfig at <wl_home> location. Here <wl_home> is the Oracle WebLogic home directory, for example, C:/Oracle/Middleware/Oracle_Home.

2. Copy the following files from the /SafeNetTokenization/Tokenization/lib/ext directory to the <wl_home>/myconfig location:

   • SafeNetToken.properties

   • SfntDbp.properties

3. Update the following parameters of the SafeNetToken.properties file:

   • HostName: <IP address of the database>

   • Port Number: <Port number of the database server>

   • DatabaseType: <Type of the database to be used; for example, Oracle>

   • DatabaseName: <Database instance>

4. Open the setDomainEnv file located at <wl_home>/user_projects/domains/<Your_domain_name>/bin and update

   "set JAVA_PROPERTIES=-Dwls.home=%WLS_HOME% -Dweblogic.home=%WLS_HOME%" to "set JAVA_PROPERTIES=-Dwls.home=%WLS_HOME% -Dweblogic.home=%WLS_HOME% -Dcom.safenet.SfntDbp_Properties_Conf_Filename=C:/Oracle/Middleware/Oracle_Home/myconfig/SfntDbp.properties -Dcom.safenet.SafeNetToken_Properties_Conf_Filename=C:/Oracle/Middleware/Oracle_Home/myconfig/SafeNetToken.properties"


Recreating the tmrest.war File

Follow the steps described here to recreate the tmrest.war file:

1. Extract the existing tmrest.war file from SafeNetTokenization\Tokenization\restfulService to any user location using the following command:

   jar -xvf tmrest.war

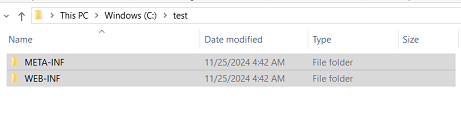

   The following screen displays the extracted location of the tmrest.war file:



   Note

   The JDBC drivers for the supported databases are no longer part of the CT-V package. Download the JDBC drivers compatible with your database and copy them to the ../WEB-INF/lib directory. Refer to the below table for the download links:

   Database	Driver Name	Download Link
   MySQL	mysql-connector-j-x.x.x.jar	MySQL website
   Informix	jdbc-x.x.x.x.jar	Maven repository
   Oracle	ojdbc8-x.x.x.x.x.jar	Maven repository
   SQL Server	mssql-jdbc-x.x.x.jre8.jar	Maven repository

2. Copy the following files from the /SafeNetTokenization/Tokenization/lib/ext directory to the ../WEB-INF/lib folder extracted in the preceding step.

   bson-5.1.0.jar	MultiSite.properties	SilentInstallation.properties
   c3p0-0.10.1.jar	detokenization.properties	TVMInformix.jar
   oraclepki-23.4.0.24.05.jar	TVMMySQL.jar	jtds-1.3.1.jar
   osdt_cert-21.14.0.0.jar	TVMOracle.jar	masking.properties
   osdt_core-21.14.0.0.jar	TVMSQLServer.jar	mchange-commons-java-0.3.1.jar
   SafeNetTokenService-8.13.2.000.jar	unicode.properties	migration.properties
   SafeNetTVM.jar

3. Navigate to the extracted location and create the tmrest.war file using the following command:

   jar –cvf tmrest.war *


4. Deploy the tmrest.war file on the Oracle WebLogic Server.

   Note

   For details on the usage of the CT-V REST APIs, refer to CipherTrust Vaulted Tokenization REST APIs.

Log Level Mapping with Java Logger

Log Rotation Support in Java Logger

Java logger supports Log_Rotation by Size and Daily, whichever occurs first. Consider if Size is set to 1 MB and Daily is set to 24 hours. Now, if the size of the log file exceeds 1 MB before 24 hours, Log_Rotation will be by Size. But if the size of the log file does not exceed 1 MB after 24 hours, Log_Rotation will be by Daily.
