Creating LDT GuardPoints

Steps to create GuardPoints on individual clients and client groups are similar. GuardPoints can be created on the GuardPoints tab of individual clients and client groups.

Creating LDT GuardPoints

To create an LDT GuardPoint on a client:

1. Open the Transparent Encryption application.

2. Select the client or client group on which you want to create a GuardPoint.

   • Click a client under the Client Name column (Clients > Clients).

   • Click a client group under the Client Group Name column (Clients > Client Groups).

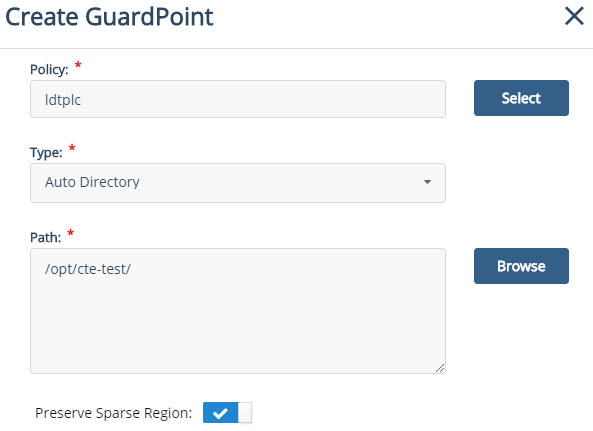

3. On the GuardPoints tab, click Create GuardPoint.

4. Select a Policy. This is a mandatory field.

   1. Click Select next to the Policy field.

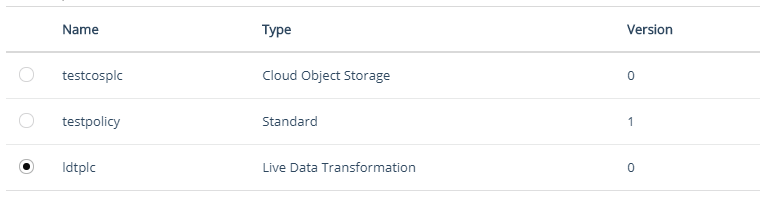

   2. Select a Live Data Transformation policy. If no policy exists, create one, as described in Creating Policies.



   3. Click Select.

5. Select the Type of device to protect. This is a mandatory field. Depending on the platform, the options for an LDT policy are:

   Type	Windows	Linux	Description
   Auto Directory	Yes	Yes	Select for file system directories.
   Manual Directory	No	Yes	Select for file system directories to be guarded manually.

   Note

   Manual Directory is guarded and unguarded (for example, mounted and unmounted) by running the secfsd -guard and secfsd -unguard commands. Do not run the mount and umount commands to swap GuardPoint nodes in a cluster configuration.

6. Specify the Path to be protected. This is a mandatory field.

   • Click Browse to select a path by browsing the client file system. This method prevents typographical errors and verifies client availability. This is the recommended method to specify the path.

   • Alternatively, if you know the path, manually enter full paths of one or more directories. Enter one path per line.

     Note

     • If a manually entered path does not exist yet, be sure to enter the path correctly. The CipherTrust Manager does not parse manually entered paths for correct syntax.
     • See Considerations Before Creating GuardPoints for what to be aware of before creating a GuardPoint.
     • If multiple paths are specified, they will all be protected by the same policy.



7. Configure the Preserve Sparse Region toggle. The toggle is turned on by default.

   Caution

   If you turn off the Preserve Sparse Region toggle, you are prompted to confirm the action. This is an irreversible action.

8. (Optional, Windows only) Select Secure Start to enable the Secure Start feature. By default, the check box is clear.

   If you plan not to enable the Secure Start now, you can do that later, as described in Enabling Secure Start for GuardPoints.

9. Click Create. A message appears prompting to confirm the reuse of these GuardPoint settings on another path.

   • Click Yes to use the same settings on another path. The Use Settings on Another Path dialog box is displayed. Perform the following steps:

     1. Specify a new Path.

     2. Click Add Path.

     3. Click OK.

   • Click No if you do not want to use the same settings on another path.

Depending on the number of paths you add to a GuardPoint, a status information message may appear. Refer to GuardPoint Status Information for details.

The newly created GuardPoint appears on the GuardPoints tab. The status remains Unknown until the client sends the response after processing the GuardPoint request. Click the Refresh GuardPoints icon () to view the updated status.

Status of a GuardPoint can be checked at any time on the GuardPoints tab. Refer to Viewing GuardPoint Status for details.

An LDT GuardPoint is applied automatically according to the QoS settings configured in the linked profile. Refer to Creating a Profile and Setting Quality of Service Configuration.
