Luna Network HSM 7 Required Items

This section provides a list of the components you should have received with your Luna Network HSM 7 order. The specific items you received depend on whether you ordered a password-authenticated or a multifactor quorum-authenticated Luna Network HSM 7, and whether your order included a backup device or other options as described below.

Basic Luna Network HSM 7 order items

The standard items that you should have received as your basic order for a Luna Network HSM 7 are:

Qty Item

1

Luna Network HSM 7 Appliance

Your order should include one password-authenticated or multifactor quorum-authenticated Luna Network HSM 7. The different HSM models appear physically identical.

1

Adapter Cable: RJ45 to USB with a standard eight-pin, eight connector (8P8C) modular connector

Used to open a terminal connection to the HSM during initial configuration.

1

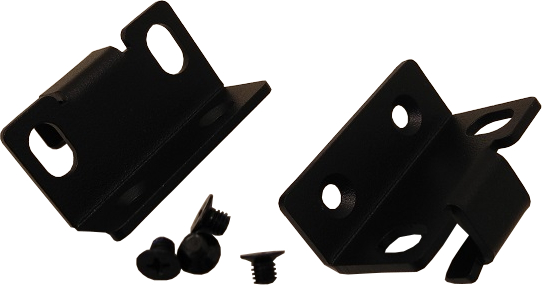

Front Ear Bracket Set

Set includes:

>(2) front ear brackets

>(4) bracket screws

1

Friction Rail Mounting Bracket Set

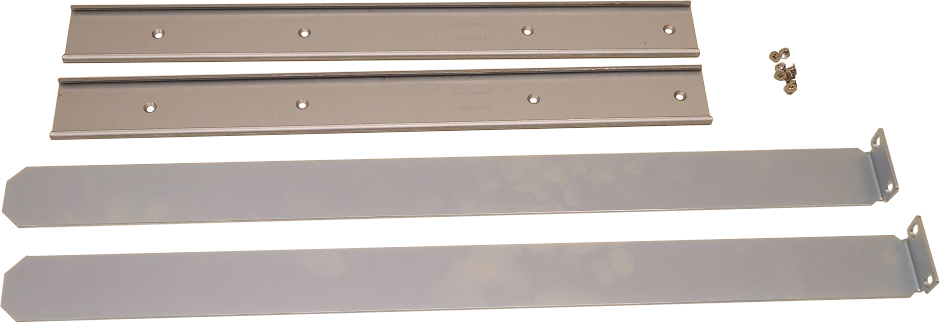

The standard mounting bracket set is designed for use in standard 483mm (19")-wide racks with depth of 620-902mm (24.5”-35.5”). See Using the Supplied Mounting Brackets for installation instructions. Set includes:

>(2) side rails

>(8) side rail screws

>(2) sliding rear brackets (fit into the rails for rear support adjustable positioning)

CAUTION!   The included mounting hardware is meant for static positioning of the appliance. The long tab that slides into the bracket, applied to each side of the appliance, is adjustable for fitting the appliance into racks of depth - it must not be used to extend the appliance out of the rack.

Optional sliding rails with rolling bearings are available for situations where rolling excursion of the appliance, while attached to the rack, is required for maintenance. See Optional Items.

1

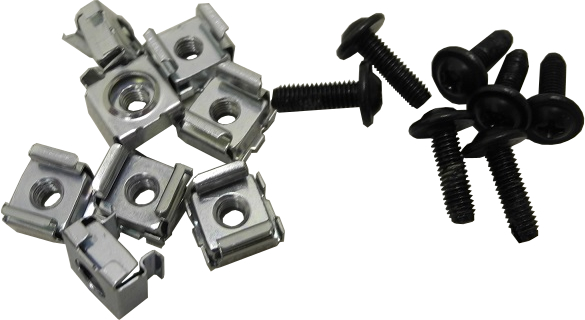

Friction Rail Rack Mounting Screws/Cage Nuts

Set includes:

>(8) M5 cage nuts

>(8) M5x14 rack screws

If you did not receive this set, you can request one from Thales (part number: 216-000035-001) or obtain your own suitable screws/nuts.

Other Required Items

The following required items are not shipped with the standard Luna Network HSM 7 order.

Qty Item

2

Power Supply Cord

You must provide one for each power supply, with connectors appropriate to your region of operation, usually sold separately. Thales no longer includes power cords with HSM appliances. Many customers reship our products to labs and data centers all over the world, and the correct format power cord is readily and economically sourced at the destination.

Multifactor Quorum-Authenticated Luna Network HSM 7 order items

If you ordered a multifactor quorum-authenticated Luna Network HSM 7, you should have received some combination of the following items in addition to the items in the basic order.

Note that you can use PED keys that you already own and use with other HSMs -- PED keys can be used with multiple HSMs if that is appropriate in your context. You should purchase the number of PEDs you need for your own convenient operation, and for backup/standby units as your security policies might require.

Qty Item
1+

Standard or Remote-Capable Luna PED

Your order should include at least one Luna PEDdevice.

If you intend to combine remote operation and backup, you might prefer to have a second Luna PED. It is possible to use a single Luna PED for both connections, and to simply change between local and remote mode as needed.

Note that you can use PED keys that you already own and use with other HSMs if appropriate. You should purchase the number you need for your own convenient operation, and for backup/standby units as your security policies might require.

1

Luna PED cable

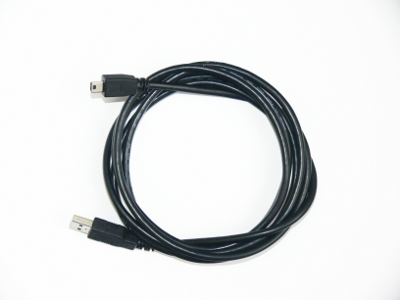

The PED device connects to your HSM using a Type A to Mini B USB cable.

Other Required Multifactor Quorum-Authentication Items

The following required items may be shipped with your Luna PED, or ordered separately.

Qty Item
1

Set of PED keys and Labels

Your order may include a set of PED keys and peel-and-stick labels.

Optional Items

You may have also ordered one or more of these optional items:

Qty Item
1

Secure Locking Bezel

For maximum physical security, this faceplate bezel can restrict access to the Luna Network HSM 7's front-facing inputs. Includes set of three (3) keys for each lock (locks are keyed differently). This item is included with the 10 Gbps Optical Ethernet model, and can be ordered separately for other models.

1

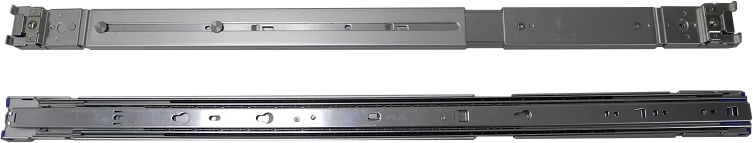

Sliding Rail Mounting Bracket Set



The sliding rail system is designed for use in standard 483mm (19")-wide racks with depth of 620-902mm (24.5”-35.5”). The sliding rail mounts allow for easy removal and access to the rear face of the HSM. See Using the Optional Sliding Rail System for installation instructions. The set includes:

>(2) sliding rail mounts with removable side rails

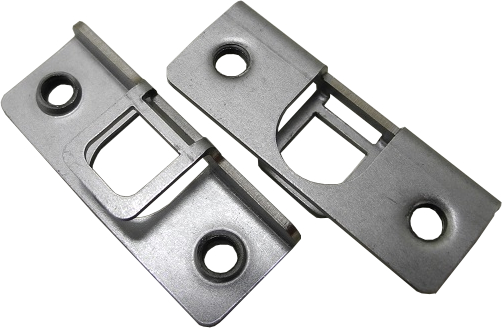

>(2) transformer brackets

>(6) rail screws

1

Sliding Rail Rack Mounting Screws

Set includes:

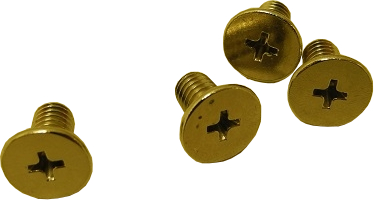

>(8) M5x8 flat-headed screws

If you did not receive this set, you can request one from Thales (part number: 216-000034-001) or obtain your own suitable screws. If you do not use the screws included in this kit, ensure that the screw heads are flat enough so as not to interfere with the locking bezel.

1

Luna Backup HSM 7

You can back up your selected Luna Network HSM 7 partition contents (root keys, certificates, other items) to a Luna Backup HSM 7. The Luna Backup HSM 7 is suitable for off-site storage and for backing up multiple HSM partitions. It can back up contents of password-authenticated or of multifactor quorum-authenticated HSMs.

Refer to Luna Backup HSM 7 v1 or Luna Backup HSM 7 v2.

2

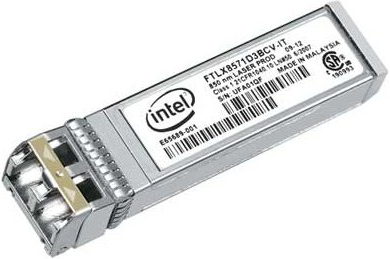

SFP 10 Gbps Optical Ethernet multimode transceiver modules



If you ordered the 10 Gbps Optical Ethernet option, two of the RJ45 ports on the appliance are replaced by SFP+ connectors (protected by dust covers during shipping). The SFP 10G Optical multimode transceiver modules are packed separately, within the appliance packaging, and must be inserted in the appliance before use.
