The following topics describe how to install and connect a Luna Backup HSM 7:
>Luna Backup HSM 7 Required Items
>Luna Backup HSM 7 Hardware Functions
>Installing the Luna Backup HSM 7 Hardware
The Luna Backup HSM 7 complies with the following:
Luna Backup HSM 7 Required Items
This section provides a list of the components you should have received with your Luna Backup HSM 7 order.
| Qty | Item |
|---|---|
| 1 |
Luna Backup HSM 7 v1 or v2
|
| 1 |
USB 3.0 Cable: Type A to Type C
|
| 1 |

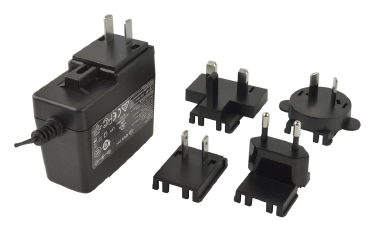

5V Power Supply with replaceable plug modules for international use.
|
| 1 |

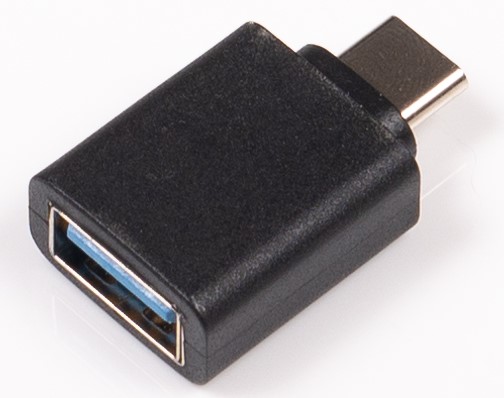

USB-A to USB-C adapter (included with v2 only)
Used to connect PED keys to the Luna Backup HSM 7 v2. |
Luna Backup HSM 7 Hardware Functions
The Luna Backup HSM 7 hardware is illustrated below, with important features labeled.
| 1 | 5V power supply connector. Required only if the USB port connected to (2) does not supply adequate power to the Luna Backup HSM 7. |
| 2 | USB-C connector. Used for USB power and connecting to the client computer |
| 3 | USB-C connector (v2 only). Used for connecting PED keys to authenticate roles on the HSM. Requires the included USB-A to USB-C adapter. |
| 4 | LED touchscreen. Displays information about the Luna Backup HSM 7 and is used to input role-specific information like PINs. |
The Luna Backup HSM 7 does not contain an internal battery, and maintains the integrity of its stored key material without being connected to power.
Installing the Luna Backup HSM 7 Hardware
The backup HSM is a USB device. To install the backup HSM, connect it to a USB port on a Luna HSM Client workstation
NOTE On most Luna HSM Client computers, the USB port provides adequate power, and connecting the provided power supply is not recommended. Wait and confirm that the HSM boots properly. If the HSM fails to boot up:
1. Disconnect the HSM from the USB port.
2. Connect the HSM to power using the provided power supply. Wait for it to boot completely.
3. Reconnect the HSM to the USB port on the client.
If the HSM is connected to the USB port before the power supply, you may encounter an issue where the HSM occasionally loses contact with the client, and must be power cycled.
NOTE If you are installing Luna HSM Client on Windows, the driver may not be installed unless the Luna device is connected to the computer first; refer to Backup/USB/PCIe Drivers Not Installed on Windows 10 or Windows Server 2022 Unless Device is Connected.
