Physical Features
The SafeNet Luna Network HSM is 1U high and fits into standard 19-inch equipment racks.
Front Panel
The front panel is illustrated below, with the secure locking bezel removed:
Item | Name | Description |
---|---|---|
A | Front ear brackets | Connect to the front of the appliance chassis with the provided screws, allowing it to be mounted in a standard 19-inch equipment rack. The extending tabs act as posts for the locking bezel. |
B | Mounts for locking bezel | The secure locking bezel connects to the appliance faceplate here. |
C | Front-panel display | Displays basic configuration and status information for the appliance. See also Front-panel LCD Display |
D | USB 3.0 ports | The appliance has a total of four (4) USB 3.0 ports (two on the front panel and two on the back), for connecting to such devices as card readers and backup HSMs. |
E | Start/stop switch | Powers the appliance on or off. See also Power-on, Power-off, or Reboot the Appliance. |
F | Fan status LEDs | The appliance has three (3) cooling fans. If these lights are illuminated, the fans are working correctly. |
G | Ventilation fan filter cover | Removable cover allows cleaning of air filter. See also Power Supply and Fan Maintenance. |
H | Fan bay securing screw |
Torx screw secures the fan bay. CAUTION! Opening to swap fan modules triggers a tamper event on the appliance. See also Power Supply and Fan Maintenance. |
Rear Panel

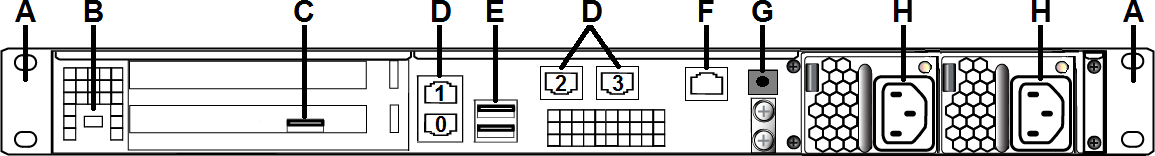

The rear panel is illustrated below:
Item | Name | Description |
---|---|---|
A | Sliding rail brackets | Connect to the sliding rails mounted on the sides of the appliance chassis, allowing it to be mounted in a standard 19-inch appliance rack. |
B | Kensington lock connector | Allows the appliance to be secured to a desk or equipment rack using a Kensington lock. |
C | HSM card USB port | When authenticating with a PED, the PED must be connected directly to the HSM card. The other USB ports on the appliance will not work for PED connection. |
D | LAN ports |
The appliance has a total of four (4) 1Gbit LAN ports that can be bonded in active-backup mode. They are labeled on the illustration above as follows: >Bond0: eth0 and eth1 >Bond1: eth2 and eth3 |
E | USB 3.0 ports | The appliance has a total of four (4) USB 3.0 ports (two on the front panel and two on the back), for connecting to such devices as card readers and backup HSMs. |
F | RJ45 serial port |
Connect a terminal to this port using the included RJ45 to USB cable (see SafeNet Luna Network HSM Required Items). See also Installing the SafeNet Luna Network HSM Hardware. |
G | Decommission button | This button should only be pressed as part of decommissioning and zeroizing the appliance. See also Decommissioning the HSM Appliance. |
H | Power supplies | Connect the appliance to power. For proper redundancy and best reliability, the power cables should connect to two completely independent power sources. See also Power Supply and Fan Maintenance. |
