SafeNet Luna Network HSM Required Items

This section provides a list of the components you should have received with your SafeNet Luna Network HSM order. The specific items you received depend on whether you ordered a password-authenticated or a PED-authenticated SafeNet Luna Network HSM, and whether your order included a backup device or other options as described below.

Basic SafeNet Luna Network HSM order items

The standard items that you should have received as your basic order for a SafeNet Luna Network HSM are:

Qty Item

1

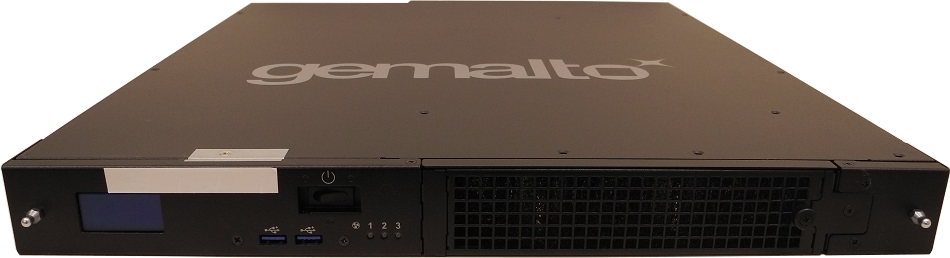

SafeNet Luna Network HSM Appliance

Your order should include one password-authenticated or PED-authenticated SafeNet Luna Network HSM. The different HSM models appear physically identical.

2

Power Supply Cord

One for each power supply, with connectors appropriate to your region of operation.

1

Adapter Cable: RJ45 to USB with a standard eight-pin, eight connector (8P8C) modular connector

Used to open a terminal connection to the HSM during initial configuration.

1

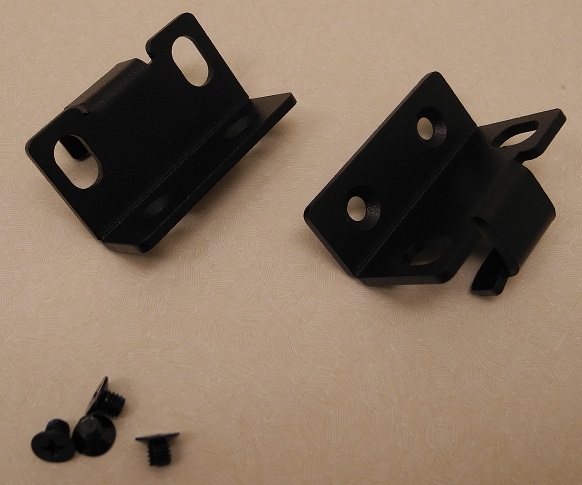

Front Ear Bracket Set

Set includes:

>(2) front ear brackets

>(4) bracket screws

1

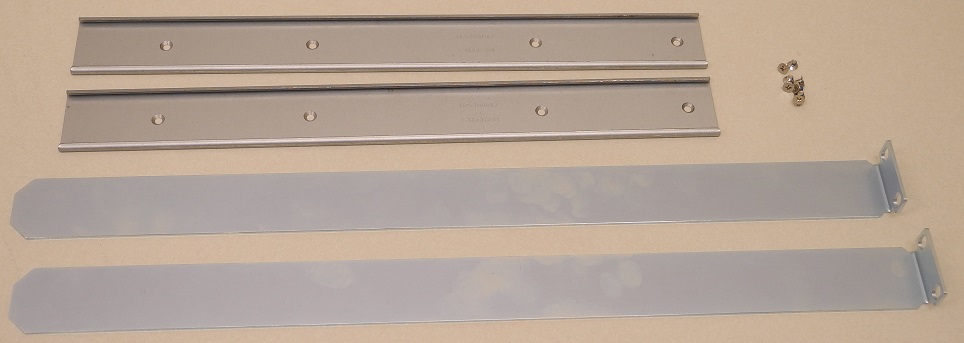

Friction Rail Mounting Bracket Set

See Using the Supplied Mounting Brackets for installation instructions. Set includes:

>(2) side rails

>(8) side rail screws

>(2) sliding rear brackets (fit into the rails for rear support adjustable positioning)

1

Friction Rail Rack Mounting Screws/Cage Nuts

Set includes:

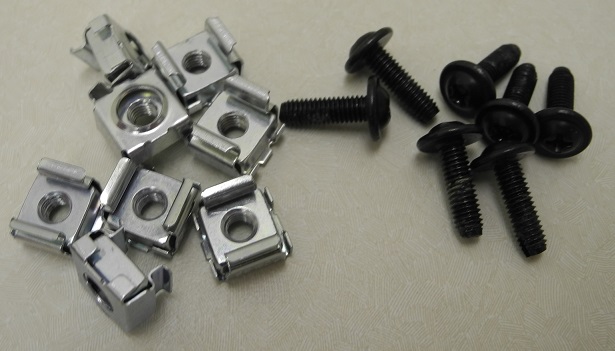

>(8) M5 cage nuts

>(8) M5x14 rack screws

If you did not receive this set, you can request one from Thales (part number: 216-000035-001) or obtain your own suitable screws/nuts.

1

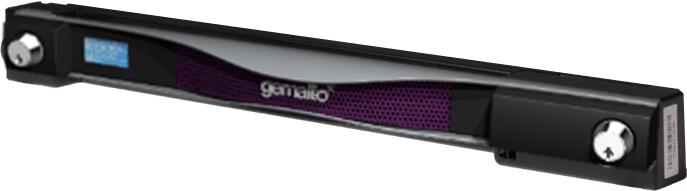

Secure Locking Bezel

For maximum physical security, this faceplate bezel can restrict access to the SafeNet Luna Network HSM's front-facing inputs. Certain security standards require the use of these physical access measures. Includes set of three (3) keys for each lock (locks are keyed differently). The keys cannot be removed from the bezel while they are in the horizontal (unlocked) position.

PED-Authenticated SafeNet Luna Network HSM order items

If you ordered a PED-authenticated SafeNet Luna Network HSM, you should have received some combination of the following items in addition to the items in the basic order.

Note that you can use PED keys that you already own and use with other HSMs -- PED keys can be used with multiple HSMs if that is appropriate in your context. You should purchase the number of PEDs you need for your own convenient operation, and for backup/standby units as your security policies might require.

Qty Item
1+

Standard or Remote-Capable Luna PED

Your order should include at least one PED device.

If you intend to back up your SafeNet Luna Network HSM to a SafeNet Luna Backup HSM, then you require a Luna PED to connect to that Backup HSM.

If you intend to combine remote operation and backup, you might prefer to have a second PED. It is possible to use a single Luna PED for both connections, and to simply change between local and remote mode as needed.

Note that you can use PED keys that you already own and use with other HSMs if appropriate. You should purchase the number you need for your own convenient operation, and for backup/standby units as your security policies might require.

1

Luna PED cable

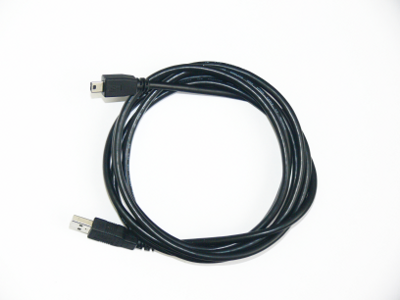

The PED device connects to your HSM using a Type A to Mini B USB cable .

1

Luna PED Power Supply Kit

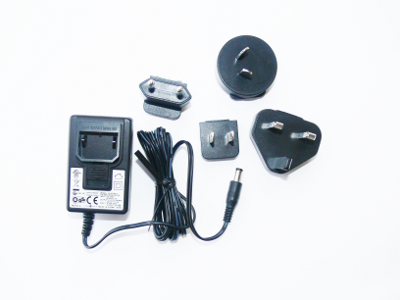

If you ordered a Luna PED, your order should include a Luna PED power supply kit with the appropriate connection for your region. The power supply is auto-sensing and includes replaceable mains plug modules for international use.

1

Set of PED Keys and Labels

Your order should include a set of iKey PED keys and peel-and-stick labels.

Optional Items

You may have also ordered one or more of these optional items:

Qty Item
1

Sliding Rail Mounting Bracket Set

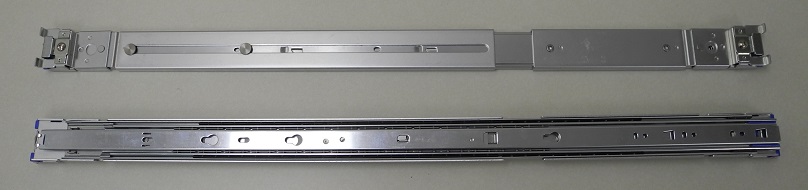

The SafeNet Luna Network HSM will fit into any standard 19-inch server rack. The optional sliding rail mounts allow for easy removal and access to the rear face of the HSM. See Using the Optional Sliding Rail System for installation instructions. The set includes:

>(2) sliding rail mounts with removable side rails

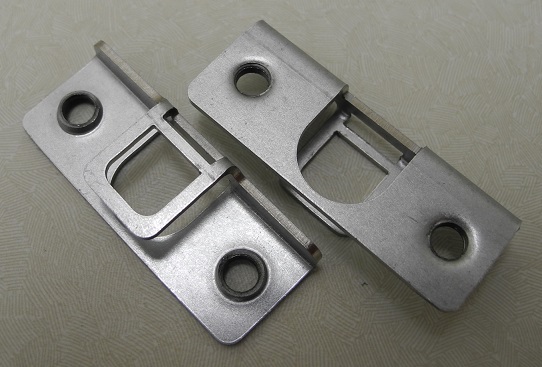

>(2) transformer brackets

>(6) rail screws

1

Sliding Rail Rack Mounting Screws

Set includes:

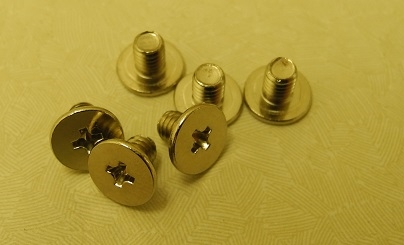

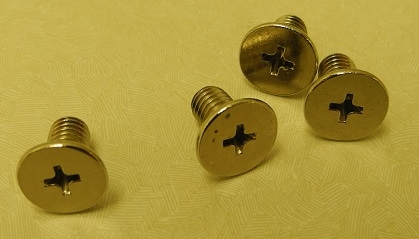

>(8) M5x8 flat-headed screws

If you did not receive this set, you can request one from Thales (part number: 216-000034-001) or obtain your own suitable screws. If you do not use the screws included in this kit, ensure that the screw heads are flat enough so as not to interfere with the locking bezel.

1

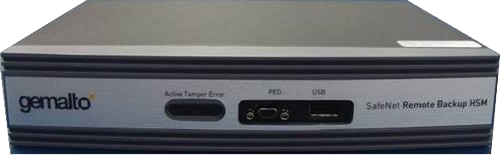

SafeNet Luna Backup HSM

You can back up your selected SafeNet Luna Network HSM partition contents (root keys, certificates, other items) to a SafeNet Luna Backup HSM. The SafeNet Luna Backup HSM is suitable for off-site storage and for backing up multiple HSM partitions. It can back up contents of password-authenticated or of PED-authenticated HSMs. It must be initialized as one type or the other before the backup operation starts.

The SafeNet Luna Backup HSM can be connected directly to an HSM, or it can be connected to a separate computer to back up remotely-located HSMs in conjunction with a Remote PED.

The authentication method for a Backup HSM must match the authentication method (password or PED) for any HSM with which it is used.

The SafeNet Luna Backup HSM ships with an external power supply.
