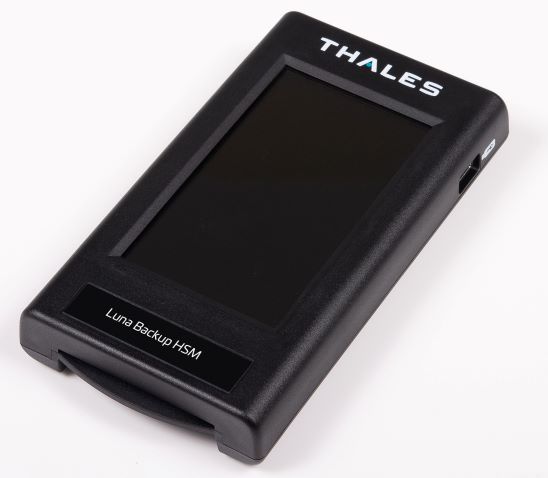

The Luna Backup HSM 7 is a full-featured, hand-held, USB-attached backup HSM that includes an informational full-color display. The Luna Backup HSM 7 connects easily to a client workstation using the included USB 3.0 Type C cable, and includes a universal 5V external power supply, which may be required to power the device in some instances.
The refreshed v2 model includes a USB-C port, which, combined with a USB-A to USB-C adapter, allows you to insert PED keys directly into the HSM, greatly simplifying the multifactor quorum authentication procedure and, depending on your configuration, eliminating the need for a Luna PED in backup/restore operations.
The Luna Backup HSM 7 is available in the following models.
| B700 | 32 MB storage, up to 100 partitions of the same authentication type |
| B750 | 128 MB storage, up to 100 partitions of the same authentication type |
| B790 | 256 MB storage, up to 100 partitions of the same authentication type |
For setup, management, and backup/restore procedures, refer to the following sections:
>Luna Backup HSM 7 Hardware Installation
>Managing the Luna Backup HSM 7
>Configuring a Remote Backup Server
Refer to the following procedures depending on your authentication method, Luna Backup HSM 7 hardware, and Luna HSM Client versions:
Multifactor Quorum Authentication
>Luna Backup HSM 7 Using Direct Multifactor Quorum Authentication (requires Luna Backup HSM 7 v2 and Luna HSM Client 10.4.0 or newer)
>Luna Backup HSM 7 Using Remote Multifactor Quorum Authentication (requires Luna HSM Client 10.1.0 or newer)
Password Authentication
>Luna Backup HSM 7 Using Password Authentication (requires Luna HSM Client 10.1.0 or newer)
