Luna PED Received Items

This chapter describes the items you received with your Luna PED device. For instructions on setting up the PED, see PED Authentication.

Required Items

The following items are included with your PED. All are required for a successful installation.

Qty Item
1

Luna PED (with firmware 2.7.1 or newer)

1

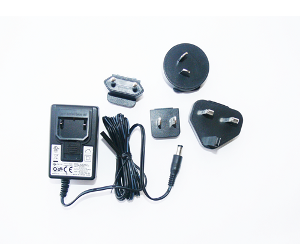

PED Power Supply kit with replaceable mains plug modules for international use (employed when the PED is operated in Remote PED mode)

NOTE: If your PED has firmware 2.8.0 or newer, it contains refreshed internal hardware and is powered by USB connection. Refreshed PEDs are not shipped with the external power supply, as they do not need it.

1

Cable, USB 2.0, Type A to Mini B connectors (for Remote PED operation).

1

Cable, Data, 9-pin, Micro-D to Micro-D connectors (for local PED operation prior to HSM firmware versions 7.x.).

1

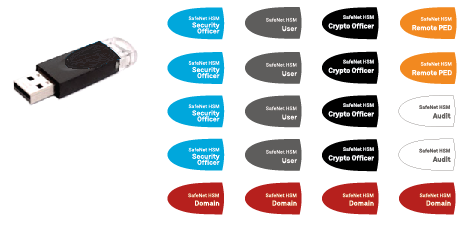

Ten-pack of iKey 1000 PED keys, and sheets of peel-and-stick labels
