Known and Resolved Issues

Problem: "cmu importkey" fails to import encrypted key

Workaround: The steps to follow to import the EC key in encrypted form from ec.pfx :

>openssl pkcs12 -in ec.pfx -nocerts -nodes -out Temp.key

Enter Import Password:

>openssl pkcs8 -in Temp.key -topk8 -nocrypt -out PKCS8.key

>cmu importkey -in PKCS8.key -PKCS8 -keyalg ECDSA
[LUNA-22378 and LUNA-22392]

Problem: PED-auth HSM - partition init with cloning and off board storage disabled still asking for cloning domain

Workaround: Insert the red key, follow the screen prompts to complete the task but the red Cloning Domain key will not be used in future.

Problem: LunaClient fails to re-init partition with partition policy template on FW7.7

Workaround: Use Client 10.3.0 onward.

Problem: Needed to remove DSA Key length 1024, which is weak and could present a security issue
Workaround: Be aware that, while this is fixed in release 7.7.0, if you reimage then DSA 1024 comes back.

Problem: Memory leak issue in luna client 10.1 with suse linux.

Workaround: FIXED in Release 7.7.0

Problem: User Interface issue: After factory reset of Luna Backup HSM (G5) "-iped " prompt is missing from LunaCM "hsm init" command.

Workaround: Restart LunaCM; the "-iped" parameter reappears.

Problem: First login after audit login lock timeout expires fails. Subsequent login passes.

Workaround: Just try again after lockout clears

Problem: When creating a self-signed certificate with cmu selfsigncertificate, additional characters are added to the specified serial number.

Workaround: None. Use cmu getattribute to note the actual serial number assigned to the certificate.

Problem: When running cmu verifyhsm, the interactive mode does not prompt for a challenge string, and fails with "Parameters missing".

Workaround: Always specify a challenge string: cmu verifyhsm -challenge "<string>"

Problem: Importing a DSA public key to a partition using cmu import fails with "Certificate invalid" error.

Workaround: None.

Problem: On Linux clients, when running cmu selfsigncertificate with no arguments specified, cmu fails to prompt the user for the relevant object handles/OUIDs, even if multiple valid keypairs exist on the partition.

Workaround: Always specify the object handles/OUIDs of the desired keypair using -publichandle and -privatehandle or -publicouid and -privateouid.

Problem: Using Luna HSM Client 10.2.0, some of the new mechanisms available in Luna firmware 7.4.2 appear in LunaCM and ckdemo as "Unknown Mechanism Type". They are listed correctly in multitoken.

Workaround: In the Luna API, you can always call mechanisms by name or by vendor code. The unknown mechanisms are listed by vendor code below:

Problem: CKDEMO option (39) Get OUID reports object OUIDs with extra zeroes appended.

Workaround: Use option (24) Get Attribute to view the correct OUID.

Problem: In LunaProvider, some operations prohibited in FIPS mode (insufficient key size, for example) fail with an unhelpful NULL error.

Workaround: Consult documentation for permitted FIPS mode operations.

Problem: When setting up a DPoD Luna Cloud HSM service on Windows, running the setenv script by right-clicking and selecting "Run as Administrator" causes the operation to fail with the error:

The argument `setenv.ps1` to the -File parameter does not exist. Provide
the path to an existing `.ps1` file as an argument to the -File parameter

Workaround: Run the setenv script in an already-open Administrator command prompt. On Windows Server, the command prompt is always opened with Administrator privileges.

Problem: If the client fails to resolve the DPoD Luna Cloud HSM service's DNS hostname, other client slots fail to load in LunaCM.

Workaround: Ensure that your DNS network is stable before deploying a Luna Cloud HSM in an HA group. Ideally, configure multiple DNS nameservers for failover.

Resolved: Fixed in Luna HSM Client 10.2.0.

Problem: The output for lunacm:> hsm showinfo displays the Luna Backup HSM (G7) part number as "Not Available".

Workaround: None.

Resolved: Fixed in Luna Backup HSM (G7) firmware 7.7.1.

Problem: Occasionally, after uninstalling the client software, client binaries remain in the installation directory.

Workaround: These can be safely deleted. To keep your configuration when updating to a new client version, do not delete the following files/directories:

>/cert

>/PedClient_service

>/softtoken

>crystoki.ini/Chrystoki.conf

Problem: If an application running against an HA group fails over to the Luna Cloud HSM member and the DNS hostname does not resolve, a segmentation fault can occur.

Workaround: Ensure that your DNS network is stable before deploying the Luna Cloud HSM service in an HA group. Ideally, configure multiple DNS nameservers for failover.

Resolved: Fixed in Luna HSM Client 10.2.0.

Problem: On Solaris, attempting to perform operations on an HSM in Secure Transport Mode returns an unhelpful error (CKR_UNKNOWN) instead of the correct CKR_CMD_NOT_ALLOWED_HSM_IN_TRANSPORT.

Workaround: Refer to the documentation for instructions on recovering the HSM from STM.

Problem: Luna Backup HSM (G7) does not appear as a slot in LunaCM if ShowAdminTokens = no in the Luna HSM Client configuration file (Chrystoki.conf/crystoki.ini).

Workaround: Edit the configuration file to set ShowAdminTokens = yes.

Resolved: Fixed in Luna HSM Client 10.3.0.

Problem: When a Luna Cloud HSM service is a member of an HA group, some events (such as the Luna Cloud HSM service member being dropped and its connection then re-established) are not recorded in the HA log file.

Workaround: None.

Problem: Occasionally, changing the active slot in LunaCM results in objects not being correctly displayed by lunacm:>partition contents, even though the Crypto Officer remains logged in on that slot.

The 'Crypto Officer' is currently logged in. Looking for objects
accessible to the 'Crypto Officer'.
No objects viewable to 'Crypto Officer' are currently stored in the partition.

Workaround: Log in as Crypto Officer again and retry lunacm:>partition contents.

Problem: On Linux, selecting only the PEDserver component during client installation installs all available client components.

Workaround: Uninstall the undesired components.

Problem: If you installed the Windows client downloaded from the DPoD portal, LunaCM returns a missing DLL error (MSVCP140.dll).

Workaround: Use the Luna HSM Client 10.1 installer, which includes all prerequisite files. Otherwise, refer to the DPoD Luna Cloud HSM service documentation (Services > Luna Cloud HSM Services > Luna Cloud HSM service supported client platforms) for prerequisites to install manually.

Problem: When using a Luna Cloud HSM service with an Entrust integration on Windows, the entsh session times out after 4 minutes (this does not occur on Linux).

Workaround: Log in to the Entrust session again and rerun the command.

Problem: Code comment mistakenly appears in the output for some vtl commands:

Note: Aux cert printing function deprecated in OpenSSL 1.1.0 - reimplement

Workaround: Message can be safely ignored.

Problem: When using an HA group made up of Luna partitions and a Luna Cloud HSM service in FIPS mode, if the Luna partition is unavailable, ms2luna fails to migrate keys from the Microsoft CA to the HA slot.

Workaround: Ensure that all HA group members are available before you run ms2luna.

Problem: When using an HA group made up of Luna partitions and a Luna Cloud HSM service in FIPS mode, if the Luna partition is unavailable, 3DES keygen fails with CKR_MECHANISM_INVALID error.

Workaround: Ensure that all HA group members are available before initiating 3DES keygen.

Problem: With appliance software 7.4.0 installed, RSA sign/verify operations show decreased performance when less than 20 threads are used.

Workaround: Update to 7.7.0 - issue is resolved.

Problem: If you perform cmu getpkc on a Luna Cloud HSM service to confirm a public key, the operation can sometimes fail.

Workaround: To confirm your key pair's origins and security in an HSM, run CKDemo's Display Object (27) function. If the CKA_NEVER_EXTRACTABLE attribute is present, this confirms that the private key was created in the HSM and never extracted.

Problem: When using a one-time password to initialize the Luna Backup HSM (G7)'s RPV (orange PED key), including the -pwd option before -ip or -hostname causes the command to fail.

Workaround: Specify the -ip or hostname before the -pwd option in the command:

lunacm:>ped connect -ip <IP_address> -pwd

Resolved: Fixed in Luna HSM Client 10.2.0.

Problem:Running slot list after disconnecting and reconnecting the G7-based Backup HSM may cause LunaCM to exit. For example:

1.Connect the G7-based Backup HSM and let it complete the boot sequence.

2.Disconnect it after it has completed the boot sequence and run slot list. The backup HSM is not listed.

3.Reconnect the backup HSM and let it complete the boot sequence.

4.Run slot list. LunaCM exits.

Workaround: Do not disconnect the G7-based Backup HSM during a LunaCM session, unless you are finished using it.

Resolved: Fixed in Luna HSM Client 10.2.0.

Problem: Application cannot change CKA_EXTRACTABLE default value via JSP.

Workaround: None.

Resolved: Fixed in Luna HSM Client 10.1.0.

Problem: Minimal Luna HSM Client tar file has an additional character that could affect customer scripts.

Workaround: Change filename from LunaClient-Minimal-v7.4.0-226.x86_64.tar to LunaClient-Minimal-7.4.0-226.x86_64.tar before running scripts.

Resolved: Fixed in Luna HSM Client 10.1.0.

Problem: Command output of vtl examineCert and vtl fingerprint are reversed.

Workaround: None. Use each command to view the other's output.

Resolved: Fixed in Luna HSM Client 10.1.0.

Problem: When simultaneously running a combination of FM and non-FM applications with the HSM, an error: Unable to communicate with HSM can occasionally occur under very high operation loads.

Workaround: Restart the HSM to clear the error (lunacm:>hsm restart).

Problem: When backing up objects to a G7-based Backup HSM from user partitions hosted on HSMs running older firmware, differences in the size of the metadata associated with the objects may cause the backup partition to become full before all of the objects are backed up, resulting in the following error message before all of the objects have been backed up:

<CKR_CONTAINER_OBJECT_STORAGE_FULL>

Workaround: If you receive this message when backing up a user partition to a G7-based Backup HSM, use the LunaCM partition resize command to resize the backup partition so that it has enough space to accommodate the remaining objects, then use the partition archive backup command with the -append option to add the skipped objects to the backup.

Resolved: Fixed in Luna HSM Client 10.3.0.

Problem: When creating an RSA key using CKDEMO, the user is mistakenly prompted for the Derive attribute (RSA key derivation is not allowed).

Workaround: None. The value entered is dropped and can be safely ignored.

Resolved: Fixed in Luna HSM Client 10.1.0.

Problem: Partition utilization metrics reports a different serial number (hardware SN) for the admin partition than other LunaCM commands.

Workaround: This information can be safely ignored.

Workaround: You can ignore the prompt. The PED session is disconnected properly by pressing the Enter key on the PED, without entering the password.

(The above is now a note in the main documentation.)

Problem: When a Remote PED connection times out, lunacm:>role login fails with a confusing error (CKR_FUNCTION_FAILED).

Workaround: Run lunacm:>ped disconnect before ped connect.

Problem: When partition policy 29: Perform RSA signing without confirmation is set to 0 (OFF), all RSA sign operations fail with an error (CKR_DATE_LEN_RANGE).

Workaround: If you use RSA signing, do not turn off partition policy 29.

Problem: When audit logs fill up the HSM memory, HSM functions continue when they should be halted until audit logging is properly configured. Affects FM log entries only.

Workaround: Configure audit logging on the HSM as described in documentation to prevent HSM memory from filling up.

Problem: FM Capability license can be applied on non-FM-ready hardware.

Workaround: Ensure your hardware is FM-ready before applying an FM license to the HSM.

Fixed in firmware 7.7.0

Problem: Encrypt operations using DES3_CBC_PAD and specifying a NULL buffer fail (CKR_BUFFER_TOO_SMALL).

Workaround: Manually specify a buffer size for these operations.

Problem: Java DERIVE and EXTRACT flag settings for keys injected into the HSM were forced to "true" in the JNI, which overrode any values passed by applications via Java.

Resolved: Fixed in Luna HSM firmware 7.3.0 and Luna HSM Client 7.3.0.

Problem: When the HSM is in a tampered state, the ctfm utility produces a confusing error (CKM_INVALID_ENTRY_TYPE).

Workaround: Check for and clear any tamper state before using ctfm.

Problem: Private BIP32 Key Injection (combination of private key encryption and unwrapping operations) was not implemented in Luna 7.3.

Resolved: The call has been included; requires Luna HSM firmware 7.4.0 and Luna HSM Client 7.4.0.

Problem: On a 64-bit client operating system, running multitoken with different BIP32 modes against an STC HA virtual slot causes multitoken to fail with an error (CKR_TOKEN_NOT_PRESENT).

Workaround: Do not use BIP32 modes with STC HA groups; use NTLS instead.

Problem: Reset timestamp displayed when reporting metrics via LunaSH or REST can vary, each time the commands are used, by approximately 6s.

Workaround: Reset the timers. This causes the value to be written to a file, so that the reported reset time remains constant until the next reset.

Problem: FM sample applications built on a Windows platform do not automatically locate the Cryptoki library.

Workaround: Move or copy the sample .exe to the main Lunaclient directory where the library is located.

Problem: When running a combination of high-traffic FM and standard Luna applications, a rare SMFS failure can occur. Standard Luna processes are unaffected.

Workaround: Erase the SMFS using the fmrecover utility, and restart the FM application if necessary.

Problem: When using CKdemo to perform a multipart sign/verify operation with a key that has exceeded its specified usage count, an expected error is returned (CKR_KEY_NOT_ACTIVE). The next sign/verify operation with an active key fails with an unexpected error (CKR_OPERATION_ACTIVE).

Workaround: Restart CKdemo and attempt the operation again.

Problem: When running commands in some Luna utilities on Windows 10, password characters are duplicated.

Workaround: Contact Thales Customer Support.

Resolved: Fixed in Luna HSM Client 7.4.0.

Problem: The wrapcomptest sample application hangs if it is used to query a non-FM slot or an invalid slot number.

Workaround: Interrupt the hanging application with CTRL+C. Use the correct slot for the FM partition.

Problem: When you delete a key from a Luna Cloud HSM service, CKlog displays an incorrect object handle.

Resolved: Fixed in Luna HSM Client 10.1.0.

Problem: After a firmware update, duplicate entries are produced in the audit logs. These duplicate entries cause log verification to fail with an error (CKR_LOG_BAD_RECORD_HMAC).

Workaround: There is no way to avoid the duplicate entries. However, the other entries in the log file can be verified without error. When verifying the logs, specify a range that excludes the duplicate entries:

lunash:>audit log verify -file <log_file> -start <first_entry> -end <last_entry>

lunacm:>audit verify file <log_file> start <first_entry> end <last_entry>

Resolved: Fixed in Luna HSM firmware 7.4.0.

Problem: When running cmu commands on Windows 10, password characters are duplicated.

Resolved: Fixed in Luna HSM Client 7.3.0.

Problem: When installing PCIe HSM drivers from Luna HSM Client software on a host machine with a fresh, non-upgraded version of Windows 10, Windows reports an error with the driver signatures.

Workaround: Disable Windows 10 driver signature enforcement before installing Luna HSM Client.

Resolved: Fixed in Luna HSM Client 10.1.

Problem: In LunaCM, when switching the active slot between partitions on different HSMs, ped connect and ped get sometimes report an active Remote PED connection, even though the connection is broken. Authentication commands fail.

Workaround: Use ped disconnect on the active slot before switching to a different slot and running ped connect.

Resolved: Fixed in Luna HSM Client 7.4.0.

Problem: If HSM is busy with a lengthy FM operation, other applications cannot be initialized until that operation is complete, resulting in an application startup delay. This can cause performance variations between PCIe HSMs installed in the same server.

Workaround: None.

Problem: If the PCIe HSM battery dies or is removed when the adapter is disconnected from power, the adapter's RTC is reset to 1969-12-31.

Workaround: After replacing the battery and clearing the tamper event, initialize and log in as the Auditor to reset the RTC.

Problem: LunaCM incorrectly allows the user to add FM-enabled partitions to the same HA group as non-FM partitions.

Workaround: HA groups with a combination of FM and non-FM members are not supported.

Problem: CA_DeriveKeyAndWrap does not handle AES_KW, AES_KWP, or AES_CTR mechanisms.

Workaround: None.

Problem: When resetting the HSM to factory conditions with audit logging enabled and an existing audit log file, new events are not logged after the Auditor role is re-initialized.

Workaround: None.

Resolved: Fixed in Luna HSM Client 7.4.0.

Problem: On Linux clients, when a non-root user attempts to uninstall the Luna HSM Client software, the process fails and the client software remains installed, but "Uninstall of the Luna HSM Client 7.3.0-165 completed" is displayed in the command output.

Workaround: Ignore this message and log in as the root user to uninstall the Luna HSM Client software.

Resolved: Fixed in Luna HSM Client 7.4.0.

Problem: After performing a factory reset, the Audit configuration is reset, and the subsequent HSM zeroization event is not logged.

Workaround: None.

Problem: When installing Backup HSM and Luna PED drivers from Luna HSM Client software on a host machine with a fresh, non-upgraded version of Windows 10, Windows reports an error with the driver signatures.

Workaround: Disable Windows 10 driver signature enforcement before installing the Luna HSM Client.

Resolved: Fixed in Luna HSM Client 7.3.0.

Problem: When uninstalling the client software and reinstalling in a new file location, ipv6 certificates are not copied from the original location, and NTLS connections are lost.

Workaround: Manually copy the certificates from the old client install location to the new one.

Problem: On Linux, client software cannot be installed to a directory that includes a space character. If such an install path is specified, the path is cut off at the space (for example, specifying "/luna client/" creates install directory /luna).

Workaround: Do not specify an install directory that includes spaces.

Problem: When using CKdemo to query an application partition, the Crypto Officer password is entered in visible plaintext.

Workaround: None.

Resolved: Fixed in Luna HSM Client 7.3.0.

Problem: On Luna HSM *700 and *750 models, asymmetric digest-and-sign or digest-and-verify mechanisms produce the wrong result when the data length exceeds 64 kB.

Resolved: Fixed in Luna HSM firmware 7.2.0 and 7.0.3.

Problem: Cannot migrate keys using ms2Luna.exe for CSP.

Workaround: Copy a version of ms2Luna.exe from an older client package (6.2 or older).

Resolved: Fixed in Luna HSM Client 7.3.0.

Problem: If you uninstall Luna HSM Client and reinstall it in a custom directory, HA logging stops working.

Workaround: Open crystoki.conf/crystoki.ini and edit haLogPath = to match the new client path.

Problem: If you uninstall Luna HSM Client and reinstall it in a custom directory, RBS stops working.

Workaround: Copy the two certificate files serverkey.pem and server.pem from the original rbs directory to the new rbs directory.

Problem: When LunaCM is launched in Luna Minimal Client, an unexpected error is displayed (Error: Failed to initialize remote PED support).

Workaround: Edit Chrystoki.conf/crystoki.ini and remove Toolsdir from the Misc section.

Resolved: Fixed in Luna HSM Client 7.3.0.

Problem:vtl cklog enable/disable command not working if LibUNIX and LibUNIX64 are in different folders.

Workaround: Enable cklog manually by editing Chrystoki.conf/Chystoki.ini. Refer to the SDK Reference for details.

Problem: CMU Export Public Key - Incorrect formatting of exported key. A public key, exported with command cmu export -handle <handle#> -outputfile <filename> -key has incorrect header and footer text.

Workaround: Edit the exported public key file, replacing
----- BEGIN CERTIFICATE ----- and ----- END CERTIFICATE -----
with
----- BEGIN PUBLIC KEY ----- and ----- END PUBLIC KEY ----- respectively.

Resolved: Fixed in Luna HSM Client 7.3.0.

Problem: Unable to change CKA_EXTRACTABLE key attribute via Java (LunaProvider/JSP).

Workaround: Download and apply the Luna HSM 7.1 Java Patch from the Thales Customer Support Portal. Follow the README instructions to ensure that your Java application sets the appropriate key attributes.

Resolved: Fixed in Luna HSM Client 7.2.0.

Problem: One-step NTLS can fail after installing, uninstalling, and reinstalling the Luna HSM Client on Windows.

Workaround: Use the multi-step NTLS setup procedure to create a connection to the Luna PCIe HSM appliance.

Problem: Connecting a Luna Backup HSM (G7) to a USB 3.0 (SuperSpeed) port may result in error messages being displayed by the host operating system. This behavior occurs in both Windows and Linux.

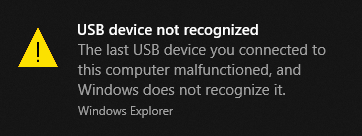

For example, in Windows, the following notification may be displayed:

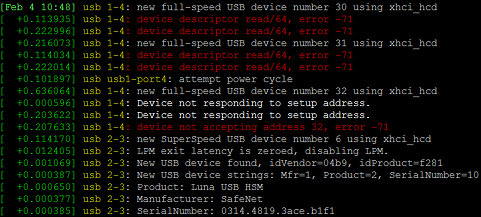

In Linux, messages similar to the following may be displayed (visible with dmesg or in /var/log/messages):

Workaround: You can ignore these messages, as they have no effect on the normal operation of the Luna PCIe HSM.

Resolved: Resolved in Luna Backup HSM (G7) with firmware 7.7.x installed from the factory. Backup HSMs upgraded to firmware 7.7.x still display the messages.

Problem: The default maximum length for HA log files is incorrectly set to 40000 bytes, and misreported in LunaCM as 262144 bytes (the intended minimum). This can lead to many small HA log files being rotated frequently.

Workaround: Manually set the HA log maximum file size using lunacm:>hagroup halog -maxlength <bytes> the first time you configure HA logging.

Problem: Extraneous entry for partitionpolicytemplatepath is present in the MISC section of the Chrystoki.conf.

Workaround: Ignore. This entry is not used by Luna 7 policy templates.

Problem: Value for HSM policy 46 (Disable Decommission) cannot be changed. Attempting to change it returns an error (CKR_CONFIG_FAILS_DEPENDENCIES).

Workaround: None.

Resolved: Fixed in Luna HSM firmware 7.2.0.

Problem: Incorrect options displayed in LunaCM when running hsm init on Luna PCIe HSM slot.

Workaround: Ignore. The options to "Initialize a Backup Device with PED-Auth" and "Initialize a Backup Device with PWD-Auth" should appear only for a slot corresponding to a Luna Backup HSM that is in un-initialized state.

Resolved: Fixed in Luna HSM Client 7.2.0.

Problem: Implementations of SSL/TLS 1.1 or earlier receive CKR_DATA_INVALID error when attempting to sign data with CKA_RSA_PKCS.

Workaround: None.

Resolved: Fixed in Luna HSM firmware 7.0.2.

Problem: The deprecated LunaCM command hsm reset can still be run on a PCIe HA slot, causing LunaCM to crash.

Workaround: If you encounter this crash, restart LunaCM. Use hsm restart instead.

Problem: "CKR_DATA_INVALID" on wrap/unwrap with multitoken on AIX and Solaris clients.

Workaround: None.

Problem: When you initialize an STC partition by applying a partition policy template, a confusing error (CKR_TOKEN_NOT_PRESENT) is returned.

Workaround: None.

Problem: When you use an older client, and query partition-level capabilities and policies, the HSM returns incorrect policy numbers

Workaround: Use the documentation to get the correct policy numbers.

Resolved: Fixed in Luna HSM firmware 7.2.0.

Problem: LunaCM occasionally freezes in Windows 2016 when a new slot is created or deleted.

Workaround: End the LunaCM instance with Task Manager and restart LunaCM.

Problem: In LunaCM, hsm information monitor incorrectly reports HSM utilization.

Workaround: None.

Resolved: Fixed in Luna HSM firmware 7.2.0.

Problem: Multipart AES_KW operations on non-block-sized-data returns incorrect error code CKR_DEVICE_ERROR.

Workaround: None.

Resolved: Fixed in Luna HSM Client 7.2.0 onward.

Problem: On Windows, one-step NTLS (lunacm:> clientconfig deploy) is very slow and takes almost four minutes to complete the NTLS connection setup.

Workaround: None.

Resolved: One-step NTLS performance has been improved in Luna HSM Client 7.2.0.

Problem: When attempting to restrict SSH access to an individual ethernet device (eth#) that is configured within a port bond (bond0 or bond1), a confusing error is returned.

Usage: /bin/grep [OPTION]... PATTERN [FILE]...
Try '/bin/grep --help' for more information.
Warning: SSH is already restricted to the specified ip address / ethernet
card. No changes made.

Workaround: This operation is expected to fail. With port bonding configured, restrict SSH to one of the port bonds instead.

Problem: Unable to add new member to HA group after removing primary member.

Workaround: Manually delete the serial number of the deleted Network HSM's partition from the "VirtualToken00Members" field in the Chrystoki.conf/Crystoki.ini file and then add the new partition to the existing HA group. It is added successfully, and the old entry from the LunaCM HA list is also removed.

Problem: When partition policy 39: Allow start/end date attributes is enabled, all start dates must be later than January 01, 1970.

Workaround: Ensure that start date attribute is later than January 01, 1970.

Fixed: Fixed in Luna HSM firmware 7.2.0.

Problem: C_DeriveKey does not reject templates that contain CKA_VALUE, and uses the CKA_VALUE that is provided in the external template.

Workaround: None.

Resolved: Fixed in Luna HSM firmware 7.0.2 and 7.1.0.

Problem: The HSM reports 3072-bit as the maximum allowed key size for the RSA 186-3 mechanisms (CKM_RSA_FIPS_186_3_AUX_PRIME_KEY_PAIR_GEN and CKM_RSA_FIPS_186_3_PRIME_KEY_PAIR_GEN), when it should report 4096-bit.

C_GetMechanismInfo will report 3072 as the maximum size for these mechanisms. If your application uses C_GetMechanismInfo to query the maximum key size, it may prevent 4096 operations from working.

Workaround: Ignore the reported limit. 4096-length keys will generate successfully.

Resolved: Fixed in Luna HSM firmware 7.0.2.

Problem: On Linux, the Luna HSM Client software fails to install to a directory with spaces in its name.

Workaround: Remove spaces from the directory name before installing the Client.

Resolved: Fixed in Luna HSM Client 7.1.0.

Problem: CMU may crash or report a memory allocation error when using a non-FIPS signing mechanism in FIPS mode.

Workaround: Specify a FIPS-approved signing mechanism such as sha256withRSA.

Problem: On Linux, non-root users cannot initialize the STC token or create an STC client identity.

Workaround: Start LunaCM as root with sudo ./lunacm.

Resolved: Fixed in Luna HSM Client 7.1.0.

Problem: On Linux, non-root users cannot configure the RBS server.

Workaround: As root, run the following commands:

1.chown -R root:hsmusers /usr/safenet/lunaclient/rbs/

2.chmod g+w -R usr/safenet/lunaclient/rbs/

Resolved: Fixed in Luna HSM Client 7.1.0.

Problem: On Linux, non-root users receive error (CKR_DATA_INVALID) when creating an HA group.

Workaround: Before installing the Luna HSM Client software, adjust the ownership of the Chrystoki.conf rpmsave with the command chown root:hsmusers /etc/Chrystoki.conf

Resolved: Fixed in Luna HSM Client 7.1.0.

Problem: In LunaCM, clientconfig deleteserver deregisters the HSM server on the Client, but does not delete the HSM server certificate file from the <LunaClient_dir>/cert/server directory. Attempts to re-register the same server with a regenerated certificate fail.

Workaround: Manually delete the certificate from the cert/server directory.

Resolved: Fixed in Luna HSM Client 7.1.0.

Problem: LunaCM hangs on exit on Windows 2016.

Workaround: End the LunaCM instance using the Task Manager.

Problem: On Windows, a system crash can occur when you disconnect a Luna Backup HSM from the computer while the PedClient service is running.

Resolved: Fixed in Luna HSM Client 7.1.0.

Problem: When the cklog library is configured, an error.txt file containing extraneous messages may be created.

Workaround: None.

Problem: Cannot back up curve25519 key types to the Luna Backup HSM.

Workaround: Use cloning or HA to back up your curve25519 key types to another Luna 7.0 HSM.

Problem: When trying to run the HALogin.java script, a CKR_UNKNOWN error is returned.

Workaround: None. Do not use the HALogin.java sample.

Problem: When running the MiscCSRCertificateDemo.java sample, a null pointer exception occurs.

Workaround: None.

Problem: The hagroup list command returns an error.

Workaround: Run the hagroup list command again. The second attempt should be successful.

Problem: On the Backup HSM, the hsm init command with the -iped option fails after hsm factoryreset.

Workaround: Run the hsm init command again. The second attempt should be successful.

Resolved: Fixed in Luna Backup HSM (G5) firmware 6.27.0.

Problem: During key wrapping/unwrapping, calling with a NULL data pointer to get the data length causes the key to be used twice, incrementing the key usage count both times.

Workaround: Specify a buffer size larger than the keys you intend to wrap/unwrap.

Problem: Remote backup through TCP/IP via the LunaCM command partition archive backup -slot remote -hostname <hostname> -port <portnum> is not recognized.

Workaround: Use RBS to backup partitions remotely.

Problem: If you zeroize an HSM hosting an HA group member partition, all running cryptographic operations against the HA group fail.

Workaround: Remove any member partition from the HA group before zeroizing the host HSM.

Problem: When using CKdemo with HA groups, an Attribute type invalid error is returned.

Workaround: If you plan to use HA Groups, change your CKdemo settings to use legacy role logins. To do this, select Role Support from the 98) Options in the OTHERS menu.
