Front Locking Bezel

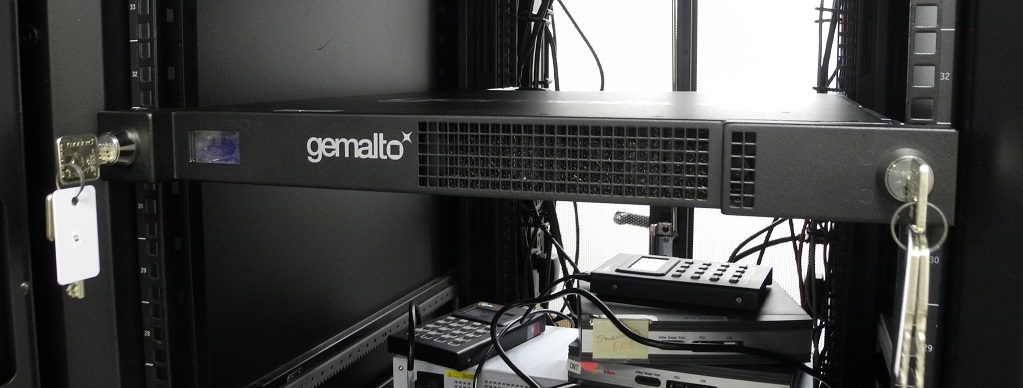

Your order may have included an optional front locking bezel (pictured below). The locking bezel fits over the HSM's faceplate for maximum physical access security. Certain security standards require the use of these physical access measures.

The locking bezel comes with three (3) keys for each lock. The locks are keyed differently so that keys can be issued to different security personnel and kept in secure, separate locations.

NOTE   The keys cannot be removed from the bezel when they are in the (horizontal) unlocked position.

To lock the bezel:

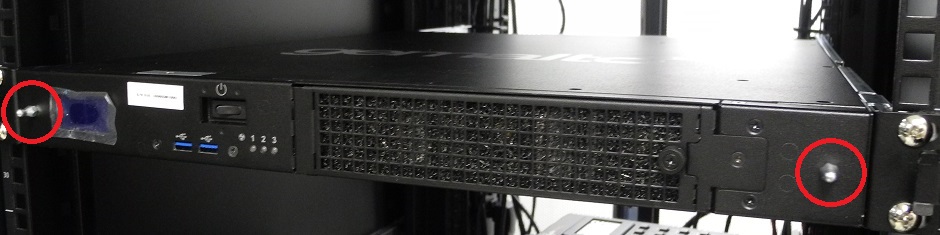

1.The locks fit over the posts highlighted below. Fit the bezel over the posts with both keys in the horizontal position.

2.Turn the keys to the vertical position to lock the bezel.

Remove the keys and store them in a secure location.

NOTE   Leaving the keys in the bezel may interfere with closing the rack door and compromise security.

Replacement Keys

To obtain replacement keys, contact Technical Support (see Support Contacts). Please have the lock serial numbers ready. You can find these numbers on the bezel beneath each lock.
