SafeNet Luna Network HSM Required Items
This section provides a list of the components you should have received with your SafeNet Luna Network HSM order. The specific items you received depend on whether you ordered a password-authenticated or a PED-authenticated SafeNet Luna Network HSM, and whether your order included a backup device or other options as described below.
Basic SafeNet Luna Network HSM order items
The standard items that you should have received as your basic order for a SafeNet Luna Network HSM are:
Qty | Item |
---|---|
1 |
SafeNet Luna Network HSM Appliance
Your order should include one password-authenticated or PED-authenticated SafeNet Luna Network HSM. The different HSM models appear physically identical. |
2 |
Power Supply Cord
One for each power supply, with connectors appropriate to your region of operation. |
1 |
Adapter Cable: RJ45 to USB with a standard eight-pin, eight connector (8P8C) modular connector
Used to open a terminal connection to the HSM during initial configuration. |
1 |
Front Ear Bracket Set
Set includes: >(2) front ear brackets >(4) bracket screws |
1 |

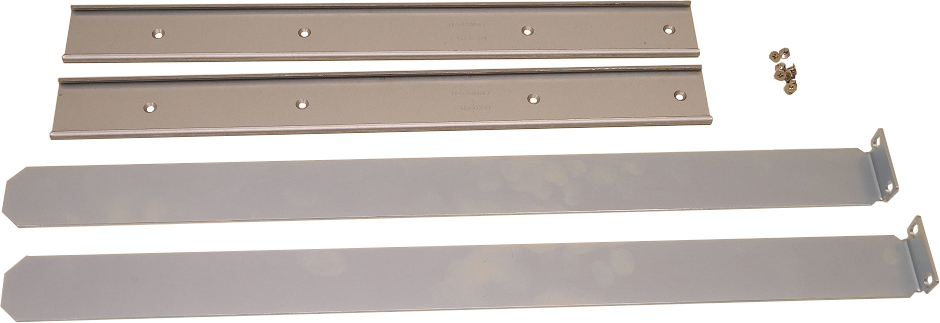

Friction Rail Mounting Bracket Set
See Using the Supplied Mounting Brackets for installation instructions. Set includes: >(2) side rails >(8) side rail screws >(2) sliding rear brackets (fit into the rails for rear support adjustable positioning) CAUTION! The included mounting hardware is meant for static positioning of the appliance. The long tab that slides into the bracket, applied to each side of the appliance, is adjustable for fitting the appliance into racks of varying depth - it must not be used to extend the appliance out of the rack. Optional gliding rails with rolling bearings are available for situations where rolling excursion of the appliance, while attached to the rack, is required for maintenance. See Optional Items. |
1 |

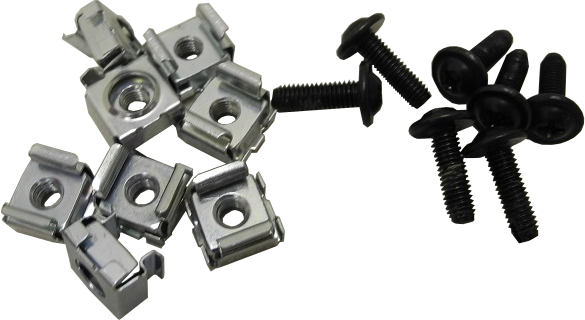

Friction Rail Rack Mounting Screws/Cage Nuts
Set includes: >(8) M5 cage nuts >(8) M5x14 rack screws If you did not receive this set, you can request one from Thales Group (part number: 216-000035-001) or obtain your own suitable screws/nuts. |
1 |
Secure Locking Bezel
For maximum physical security, this faceplate bezel can restrict access to the SafeNet Luna Network HSM's front-facing inputs. Includes set of three (3) keys for each lock (locks are keyed differently). |
PED-Authenticated SafeNet Luna Network HSM order items
If you ordered a PED-authenticated SafeNet Luna Network HSM, you should have received some combination of the following items in addition to the items in the basic order.
Note that you can use PED keys that you already own and use with other HSMs -- PED keys can be used with multiple HSMs if that is appropriate in your context. You should purchase the number of PEDs you need for your own convenient operation, and for backup/standby units as your security policies might require.
Qty | Item |
---|---|
1+ |
Standard or Remote-Capable Luna PED
Your order should include at least one PED device. If you intend to back up your SafeNet Luna Network HSM to a SafeNet Luna Backup HSM, then you require a Luna PED to connect to that Backup HSM. If you intend to combine remote operation and backup, you might prefer to have a second PED. It is possible to use a single Luna PED for both connections, and to simply change between local and remote mode as needed. Note that you can use PED keys that you already own and use with other HSMs if appropriate. You should purchase the number you need for your own convenient operation, and for backup/standby units as your security policies might require. |
1 |

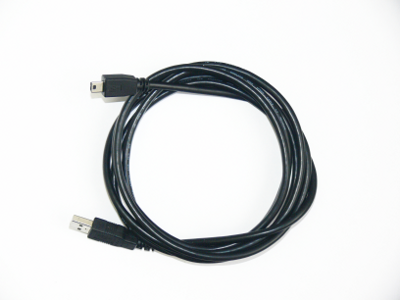

Luna PED cable
The PED device connects to your HSM using a Type A to Mini B USB cable . |
1 |

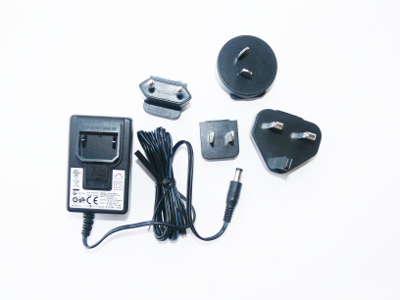

Luna PED Power Supply Kit
If you ordered a Luna PED, your order should include a Luna PED power supply kit with the appropriate connection for your region. The power supply is auto-sensing and includes replaceable mains plug modules for international use. |
1 |
Set of PED Keys and Labels
Your order should include a set of iKey PED keys and peel-and-stick labels. |
Optional Items
You may have also ordered one or more of these optional items:
Qty | Item |
---|---|
1 |

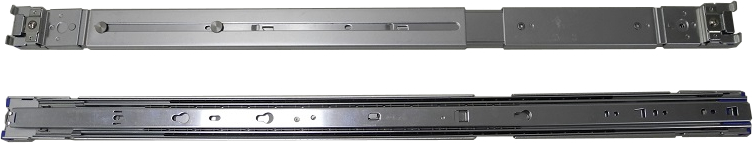

Sliding Rail Mounting Bracket Set

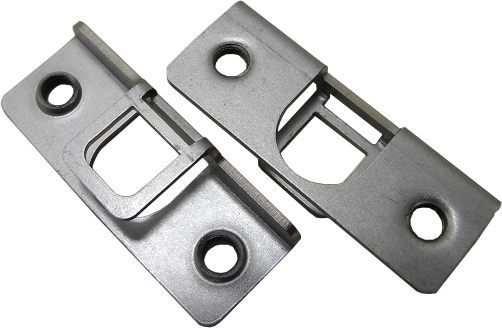

The SafeNet Luna Network HSM will fit into any standard 19-inch server rack. The optional sliding rail mounts allow for easy removal and access to the rear face of the HSM. See Using the Optional Sliding Rail System for installation instructions. The set includes: >(2) sliding rail mounts with removable side rails >(2) transformer brackets >(6) rail screws |
1 |

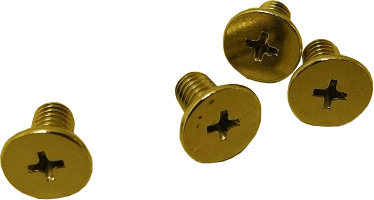

Sliding Rail Rack Mounting Screws
Set includes: >(8) M5x8 flat-headed screws If you did not receive this set, you can request one from Thales Group (part number: 216-000034-001) or obtain your own suitable screws. If you do not use the screws included in this kit, ensure that the screw heads are flat enough so as not to interfere with the locking bezel. |
1 |

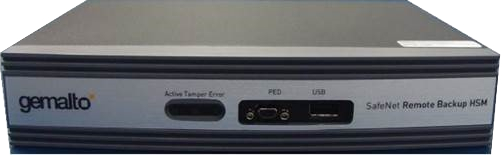

SafeNet Luna Backup HSM
You can back up your selected SafeNet Luna Network HSM partition contents (root keys, certificates, other items) to a SafeNet Luna Backup HSM. The SafeNet Luna Backup HSM is suitable for off-site storage and for backing up multiple HSM partitions. It can back up contents of password-authenticated or of PED-authenticated HSMs. It must be initialized as one type or the other before the backup operation starts. The SafeNet Luna Backup HSM can be connected directly to an HSM, or it can be connected to a separate computer to back up remotely-located HSMs in conjunction with a Remote PED. The authentication method for a Backup HSM must match the authentication method (password or PED) for any HSM with which it is used. The SafeNet Luna Backup HSM ships with an external power supply. |
2 |

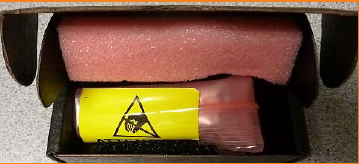

SFP 10 Gbps Optical Ethernet transceiver modules
If you ordered the 10 Gbps Optical Ethernet option, two of the RJ45 ports on the appliance are replaced by SFP+ connectors (protected by dust covers during shipping). The SFP 10G Optical transceiver modules are packed separately, within the appliance packaging, and must be inserted in the appliance before use. |
