Verifying Your Integration

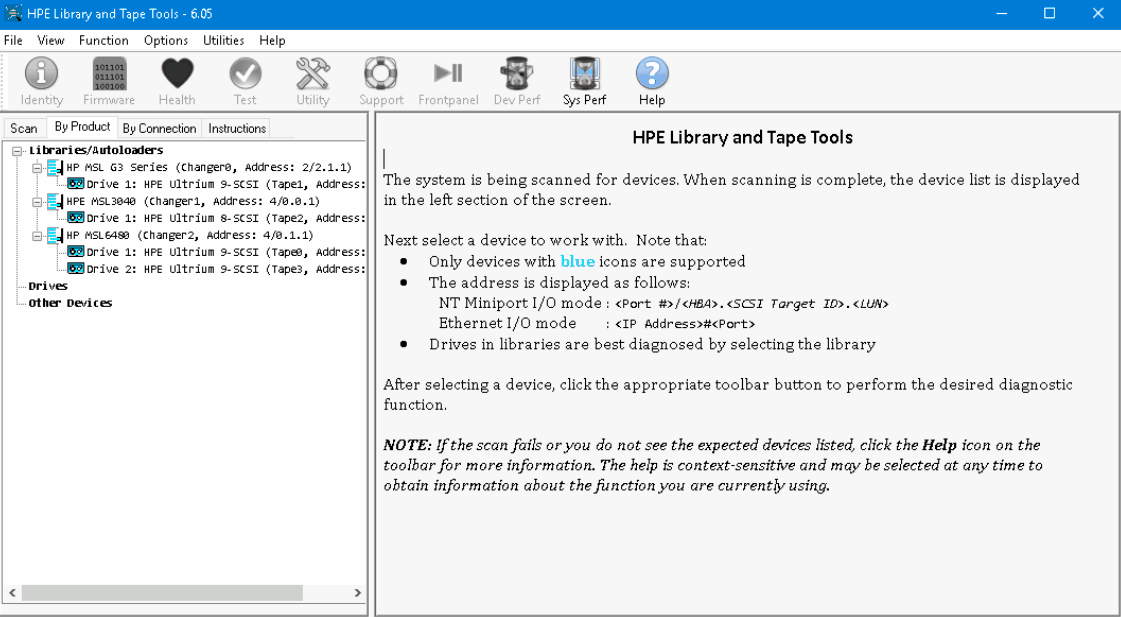

For the visual representation of the steps to verify the integration, refer to the GIF displayed below.

Perform the following steps to verify the integration of HPE StoreEver with the CipherTrust Manager:

1. Launch HPE Library and Tape Tools and select the following options to perform the Hardware Scan:

   • Scan Mode: Select Hardware Scan

   • I/O Mode: Select Miniport

   • Select Check for Backup Application and Services check box and click Continue

2. Select the required libraries and then select Dev Perf option available at the menu bar.

3. Select the drives and then click Options to set the parameters.

4. Use the parameters for the Drive Performance Test.

5. Click OK, and click Start to begin the test.
