BYOK for Microsoft Azure

Microsoft Azure provides various services such as computing, networking, and storage over cloud. Azure allows users to bring their own keys to be used for the services. The imported keys are referred as tenant keys. The tenant keys are stored in the Azure Key Vault. For more information on Microsoft Azure, refer to the relevant documents available over the Internet.

Prerequisites

To use BYOK for Microsoft ensure that:

1. CADP for Java is installed and configured. Refer to Quick start for detailed installation instructions and Configuration Parameters for configuration details.

2. A javac compiler exits in the path.

3. Any of the supported Java version is installed on your machine. Refer to General system architecture for details.

4. A Key Vault must be created before importing the certificate.

The high-level steps involved in using BYOK for Microsoft Azure with CADP for Java are:

• Generating a RSA key or an EC key on Key Manager.

• Generating the PKCS#12 certificate with .pfx extension using the SelfSignedCertificateUtility.

• Importing the certificate (containing both public and private keys) to the Azure Key Vault.

Create RSA/EC Key

Refer to Create a key for detailed instructions.

Generate PKCS#12 Certificate

1. Update the details.properties file with the certificate attributes. This file is available on github. If the attributes are not set, the certificate is created using the default values in the details.properties file. The following table explains the attributes.

   Input Parameter	Description
   Validity	Validity of the certificate in days. Default value is 365.
   KeyUsage	Defines the usage of the certificate being generated. Valid values are: — digitalSignature — nonRepudiation — keyEncipherment — dataEncipherment — keyAgreement — keyCertSign — cRLSign — encipherOnly — decipherOnly Default values are keyEncipherment and digitalSignature.
   Algorithm	Algorithm that will be used to sign the certificate being generated. Valid values are: — SHA1WithRSA — SHA256WithRSA — SHA384WithRSA — SHA512WithRSA — SHA1WithECDSA — SHA224WithECDSA — SHA256WithECDSA — SHA384WithECDSA — SHA512WithECDSA Default value is SHA1WithRSA.
   CommonName	Common name for the certificate. Default value is TestUser.
   CountryName	Country code used for the certificate. Default value is IN.
   Destination	Directory, including the certificate file name, where the certificate is to be generated. If this attribute is not specified, the certificate is created with the name SignedCertificate.pfx and is stored in the current working directory.
   CertPassword	Password for the certificate. The default value is changeit. It is an optional attribute. Note: While running the SelfSignedCertificateUtility command, if the certPassword attribute’s value is specified in the command line interface, it overrides the value specified in the details.properties file.
   Email	E-mail ID of the certificate. It is an optional attribute.
   Location	Location of certificate. It is an optional attribute.
   OrganizationName	Name of the organization of the certificate. It is an optional attribute.
   OrganizationUnitName	Name of the unit of the certificate. It is an optional attribute.
   StateName	Name of the state of the certificate. It is an optional attribute.

2. Execute SelfSignedCertificateUtility. This sample is available on github.

   Usage

   java SelfSignedCertificateUtility [-user ksUserName] [-password ksPassword] -key rsaOrECCKeyName -file details.properties [-certPass certPassword]

   Copy

   The following table describes the input parameters:

   Parameter	Description
   user	Name of the user on Key Manager. It is an optional parameter.
   password	Password of the user name on Key Manager. The following special characters * ‘ “ and
   key	Name of the RSA or EC key created on Key Manager.
   file	The details.properties file containing the certificate attributes.
   certPass	Password for the certificate to be generated. It is an optional parameter. This value of this parameter overrides the value set in the details.properties file

Example

For example, successful execution of the following command generates the self-signed certificate named SignedCertificate.pfx.

java SelfSignedCertificateUtility -user kmuser -password kmpassword -key KMKey -file details.properties

Import a PKCS#12 Certificate

To import PKCS#12 Certificate in .pfx format to Microsoft Azure, follow these steps:

1. Log on to the Microsoft Azure account.

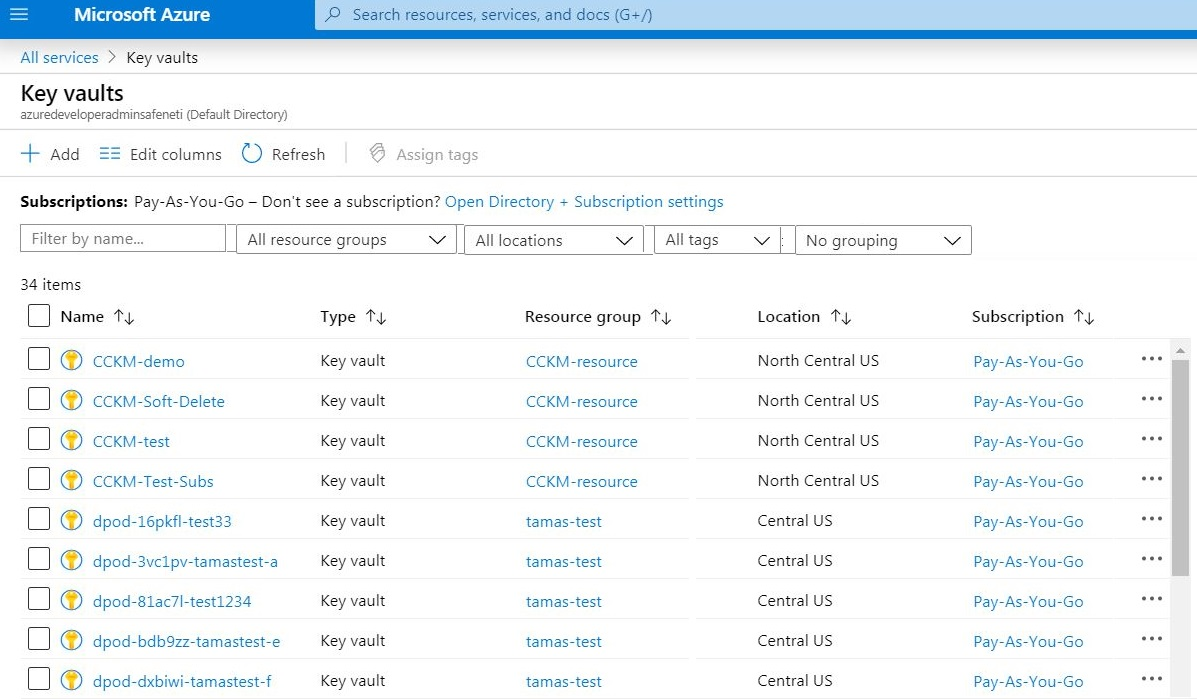

2. Click All services, in the search box, enter Key vault. A page with list of existing key vaults is displayed. If the key vault doesn’t exist, create a key vault.

3. Under the Name column, click the key vault name link and then from the SETTINGS list, click Keys. The existing keys in the key vault are listed.

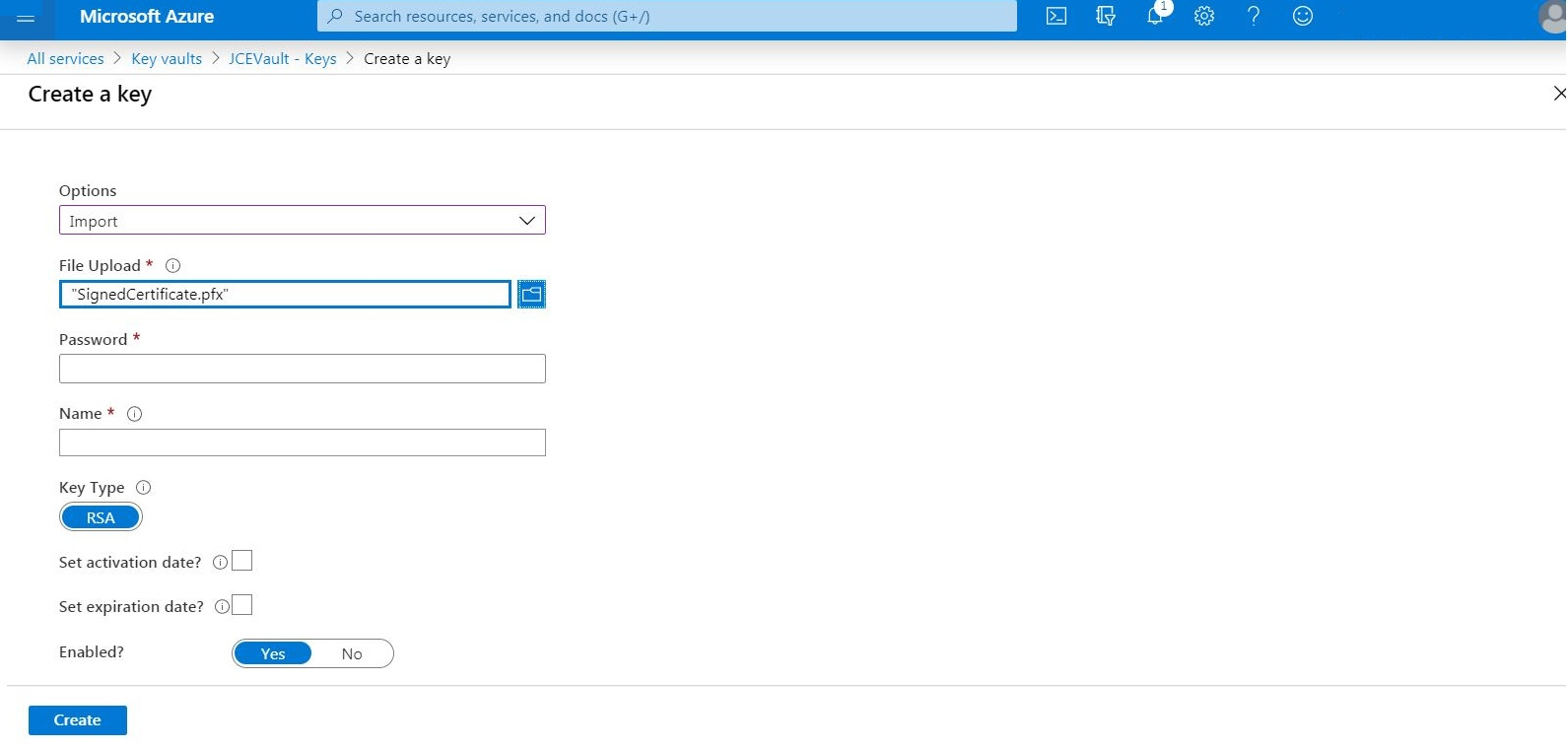

4. Click +Generate/Import. The Create a key page is displayed to upload the PKCS#12 certificate.



5. Enter the certificate details as described in the following table:

   Input Parameter	Description
   Options	Select the Upload option.
   File Upload	Browse and select the certificate to be uploaded. It is a mandatory field.
   Password	Provide the password for the certificate as specified during the certificate generation. It is a mandatory field. Note: The password is specified in the details.properties file or while using SelfSignedCertificateUtility to generate the certificate.
   Name	Specify a name for the certificate to be uploaded. The certificate will be listed in the key vault with this name. It is a mandatory field.
   Set activation/expiration date	Select the options as required, and set the activation/expiration date. It is an optional field.
   Enabled	Yes option is selected by default. Select No, if required.

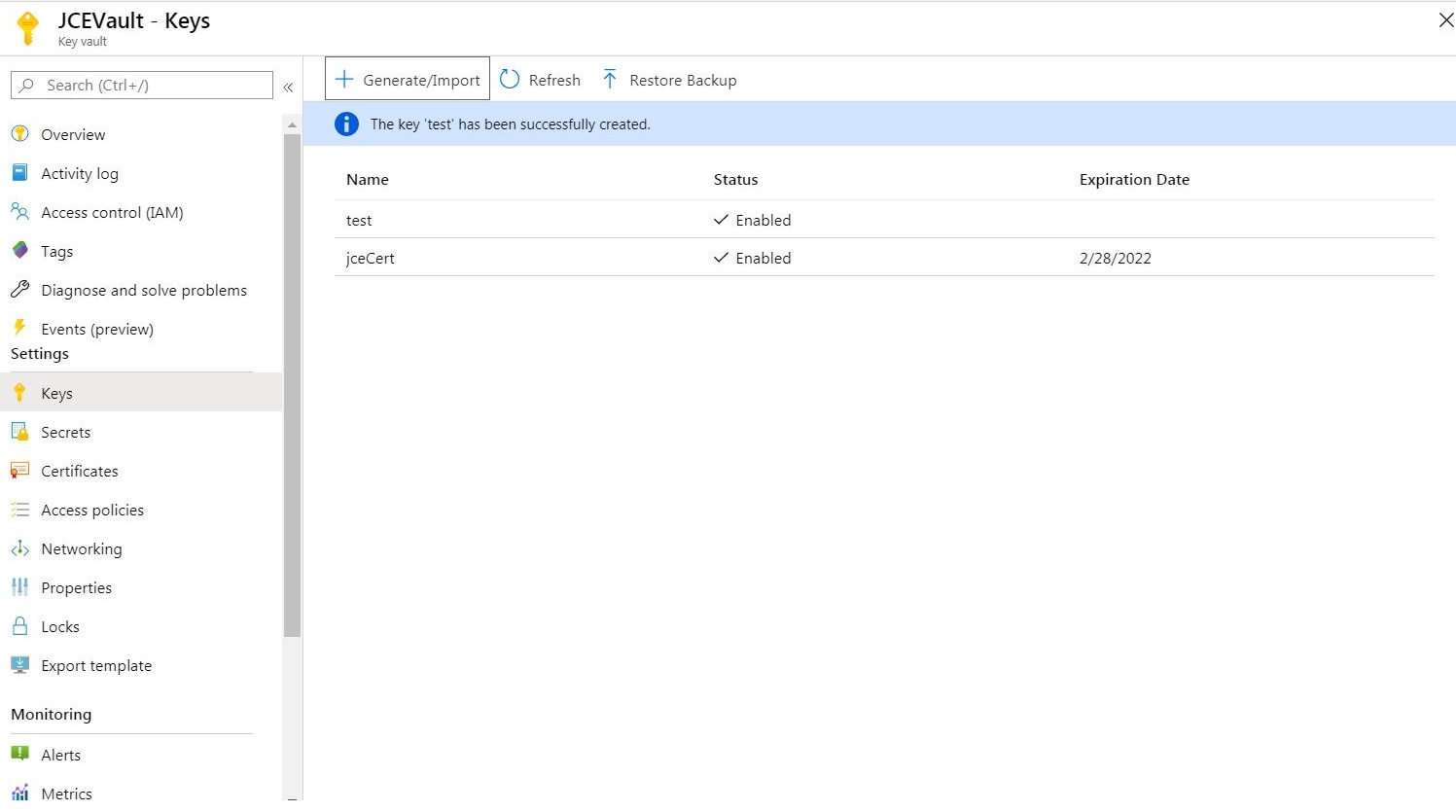

6. Click Create. The certificate is uploaded and listed in the key vault.



   The screen also displays a message about the successful creation of the certificate-key.
