Performance of CipherTrust Manager Cluster

This document provides performance statistics for various operations on a CipherTrust Manager cluster when subjected to different connector loads. Understanding these metrics can help customers anticipate resource consumption on their CipherTrust Manager cluster under similar workloads.

Understanding the Performance Statistics Tables

The following sections present performance statistics using several common table formats. Here's a brief overview of what each table type generally represents:

  • Request Statistics: This table typically details the number of requests made for specific operations, the number of failures, average, minimum, and maximum response times (often in milliseconds), the average size of the data transferred (in bytes), the number of requests per second (RPS), and failures per second. An aggregated summary across all operations in that section is usually included.

  • Response Time Statistics: This table provides a more granular view of system responsiveness by showing percentile data (for example, 50th, 60th, 70th, 80th, 90th, 95th, 99th, and 100th percentile) for the response times of the operations detailed in the "Request Statistics" table. An aggregated summary is also typically included.

  • Failures Statistics: When present, this table lists the specific errors encountered during the tests (for example, HTTP error codes and messages) and the number of times each error occurred. It provides context for any non-zero values in the "# Fails" column of the "Request Statistics" table.

  • Exceptions Statistics: This table, when included, lists any software exceptions that occurred during the tests. It typically shows the count of each exception, the error message, a detailed traceback (the sequence of calls that led to the error), and the node(s) where the exception occurred. This information is crucial for diagnosing underlying software issues.

The following connector and operation types are covered.

KMIP Clients

Symmetric/Asymmetric Key Creation

The following tables present performance statistics for KMIP clients performing symmetric (AES) and asymmetric (RSA) key creation, as well as key retrieval operations on a CipherTrust Manager cluster.

Request Statistics

MethodName# Requests# FailsAverage (ms)Min (ms)Max (ms)Average size (bytes)RPSFailures/s
POSTCreate AES Key11230818209417606.10.0
POSTCreate RSA Key11470820180421806.30.0
GETGet Key by ID53330554933057186629.10.0
GETGet Key by another Node307405981003037114216.80.0
Aggregated106770623934218126158.30.0

Response Time Statistics

MethodName50%ile (ms)60%ile (ms)70%ile (ms)80%ile (ms)90%ile (ms)95%ile (ms)99%ile (ms)100%ile (ms)
POSTCreate AES Key5706307008801600270039004200
POSTCreate RSA Key5706207208801600260039004200
GETGet Key by ID3704104605401500190022003100
GETGet Key by another Node3904304805601800200022003000
Aggregated4104605206901600200029004200

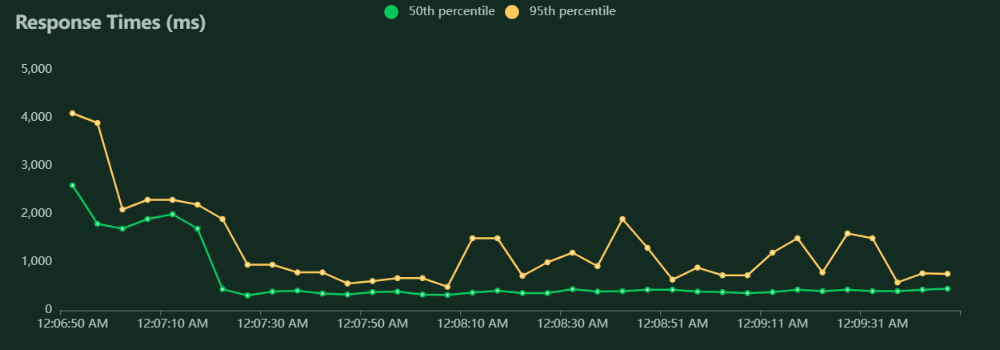

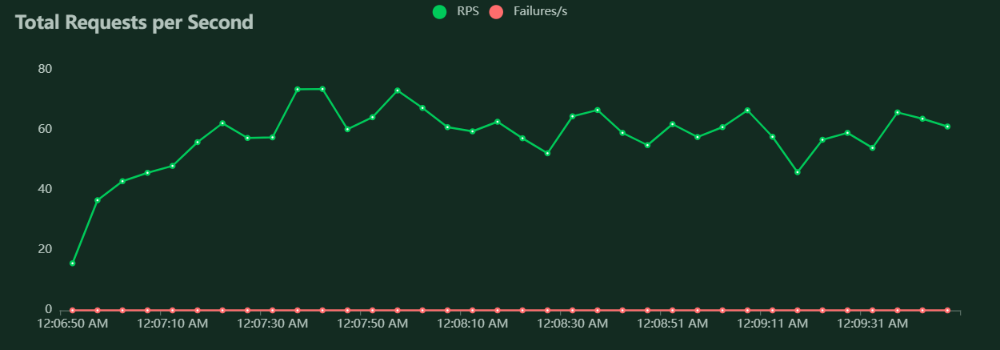

Charts

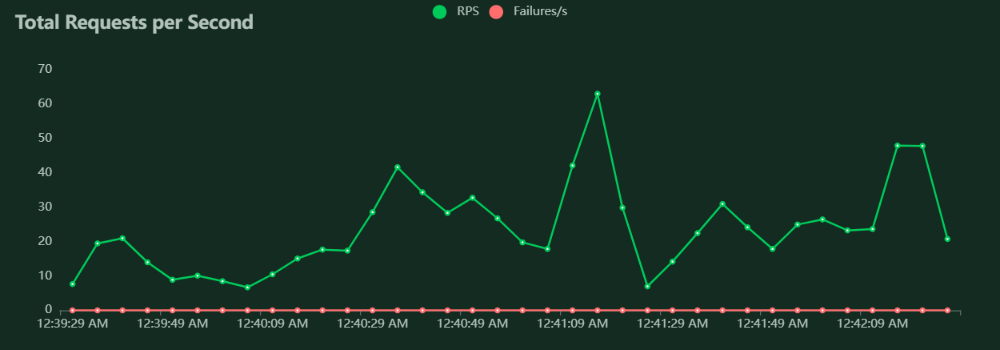

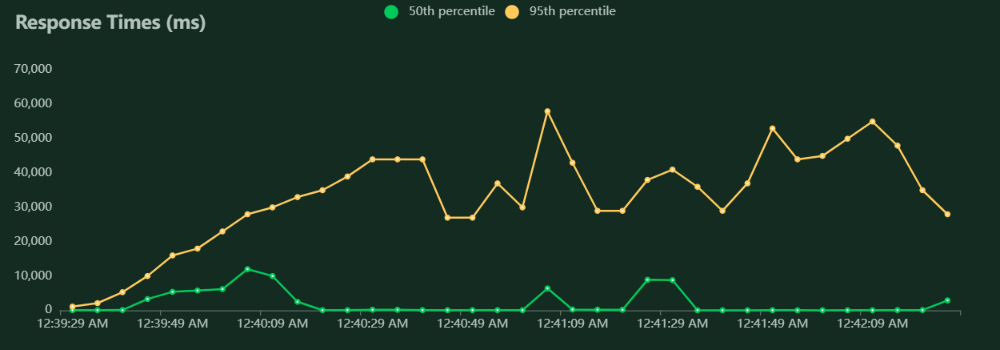

REST Clients

Symmetric/Asymmetric Key Creation

The following tables present performance statistics for REST API clients performing symmetric (AES) and asymmetric (RSA) key creation, as well as key retrieval operations on a CipherTrust Manager cluster.

Request Statistics

MethodName# Requests# FailsAverage (ms)Min (ms)Max (ms)Average size (bytes)RPSFailures/s
POSTCreate AES Key51509492577749810902.90.0
POSTCreate RSA Key4870164095326799026422.70.0
GETGet Key by ID2153093607123749138712.00.0
GETGet Key by another Node1211068862326426.70.0
Aggregated4366075857123749184024.30.0

Response Time Statistics

MethodName50%ile (ms)60%ile (ms)70%ile (ms)80%ile (ms)90%ile (ms)95%ile (ms)99%ile (ms)100%ile (ms)
POSTCreate AES Key54007900110001400024000370005800077000
POSTCreate RSA Key1300016000190002600033000430005700068000
GETGet Key by ID97240880018000340004600074000124000
GETGet Key by another Node344662100170230470620
Aggregated120530670014000260003900064000124000

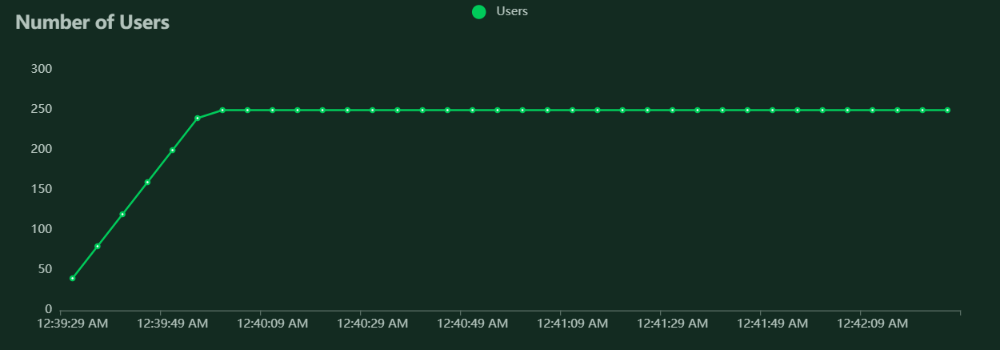

Charts

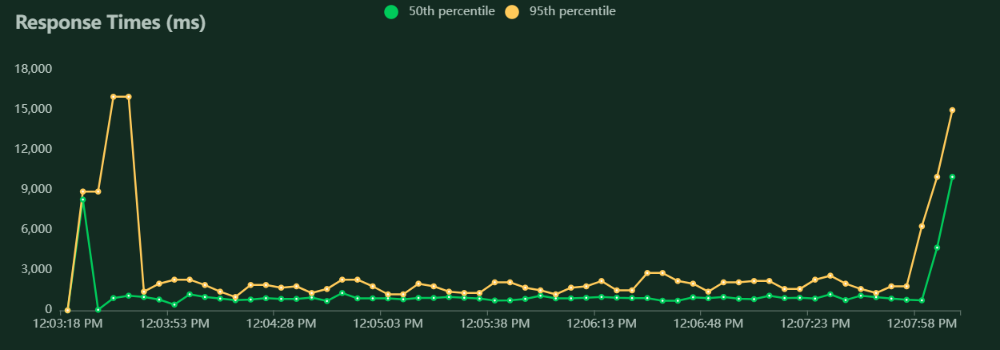

Azure CRUD Key Operations

The following tables present performance statistics for CCKM (Cloud Key Manager) operations involving Azure, specifically focusing on Create, Read (Get), Update, and Delete (CRUD) operations for keys, including soft and hard deletes, and backup deletion.

Request Statistics

MethodName# Requests# FailsAverage (ms)Min (ms)Max (ms)Average size (bytes)RPSFailures/s
POSTCreate Key1080288811061631823000.40.0
POSTDelete Backup9804382821168150.30.0
GETGet Key108029135023290.40.0
POSTHard Delete Key113141056696997220970.40.0
POSTSoft Delete Key10001022675634822830.30.0
PATCHUpdate Key101012937861766222660.30.0
Aggregated628141131131766219042.10.0

Response Time Statistics

MethodName50%ile (ms)60%ile (ms)70%ile (ms)80%ile (ms)90%ile (ms)95%ile (ms)99%ile (ms)100%ile (ms)
POSTCreate Key1800190020002300830089001600016000
POSTDelete Backup34041048058072076012001200
GETGet Key2840424445485151
POSTHard Delete Key9209901000110012001400280010000
POSTSoft Delete Key930990110012001300140063006300
PATCHUpdate Key110012001200130014001500200018000
Aggregated900100012001400180021001000018000

Failures Statistics

MethodNameErrorOccurrences
POSTHard Delete Key409 Client Error: Conflict for url: Hard Delete Key14

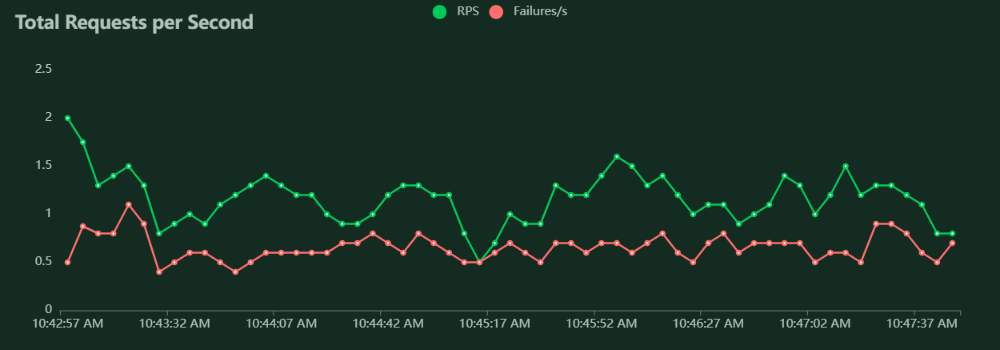

Charts

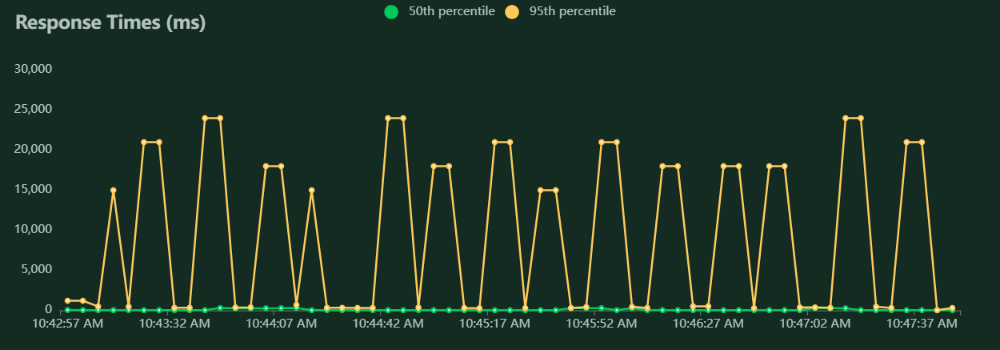

Azure Key Rotation Sync/Refresh

The following tables present performance statistics for CCKM operations related to Azure key management, focusing on key rotation, synchronization, and refresh actions.

Request Statistics

MethodName# Requests# FailsAverage (ms)Min (ms)Max (ms)Average size (bytes)RPSFailures/s
GETRotate Key160156278590.10.0
POSTRotate Key21319714846240561570.70.7
POSTSync Key118034626113235430.40.0
Aggregated34719710296240563211.20.7

Response Time Statistics

MethodName50%ile (ms)60%ile (ms)70%ile (ms)80%ile (ms)90%ile (ms)95%ile (ms)99%ile (ms)100%ile (ms)
GETRotate Key1819202022272727
POSTRotate Key1920202125180002400024000
POSTSync Key30031031036047056012001300
Aggregated212627030041012002100024000

Failures Statistics

MethodNameErrorOccurrences
POSTRotate Key409 Client Error: Conflict for url: Rotate Key197

Exceptions Statistics

CountMessageTracebackNodes
1list index out of rangeFile "/usr/local/lib/python3.8/dist-packages/locust/user/task.py", line 340, in run self.execute_next_task() File "/usr/local/lib/python3.8/dist-packages/locust/user/task.py", line 373, in execute_next_task self.execute_task(self._task_queue.pop(0)) File "/usr/local/lib/python3.8/dist-packages/locust/user/task.py", line 487, in execute_task task(self.user).run() File "/usr/local/lib/python3.8/dist-packages/locust/user/task.py", line 325, in run self.on_start() File "/root/cte_client_dir/vaqa/Engine/lib/../../testcases/kylo/rest/performance/cckm/azure/locust/azure_key_rotate_sync_perf.py", line 123, in on_start self.vault_id = self.vault_id_list[self.vault_index]local

Charts

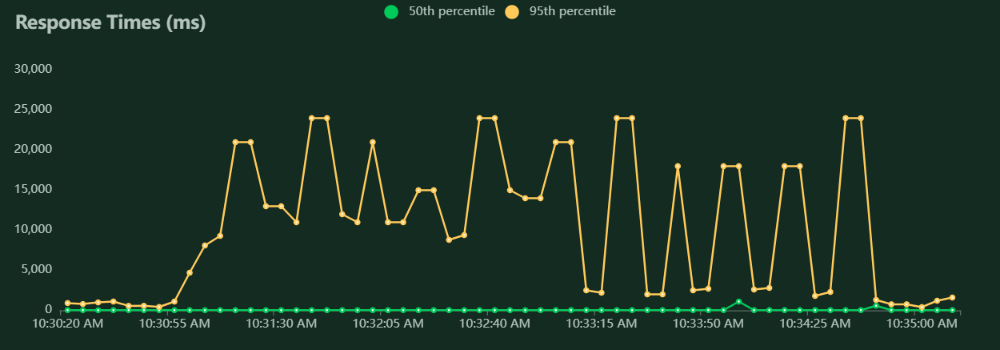

AWS Key Rotation Sync/Refresh

The following tables present performance statistics for CCKM operations related to AWS key management, focusing on key rotation, synchronization, and refresh actions.

Request Statistics

MethodName# Requests# FailsAverage (ms)Min (ms)Max (ms)Average size (bytes)RPSFailures/s
GETRotate Key160207288480.10.0
POSTRotate Key3673519137240991591.21.2
POSTSync Key147962668265148703220.50.3
Aggregated53044713737240992251.81.5

Response Time Statistics

MethodName50%ile (ms)60%ile (ms)70%ile (ms)80%ile (ms)90%ile (ms)95%ile (ms)99%ile (ms)100%ile (ms)
GETRotate Key2223242528282828
POSTRotate Key20212224271802400024000
POSTSync Key120015001800250011000120001400015000
Aggregated22252807602200110002400024000

Failures Statistics

MethodNameErrorOccurrences
POSTRotate Key409 Client Error: Conflict for url: Rotate Key351
POSTSync Key409 Client Error: Conflict for url: Sync Key96

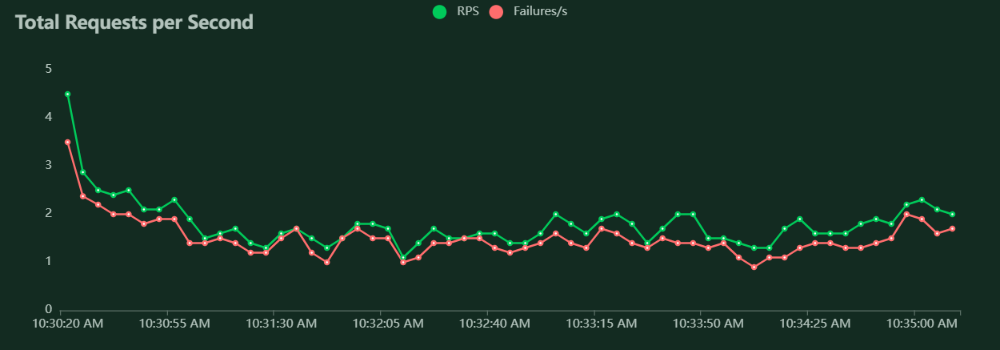

Charts

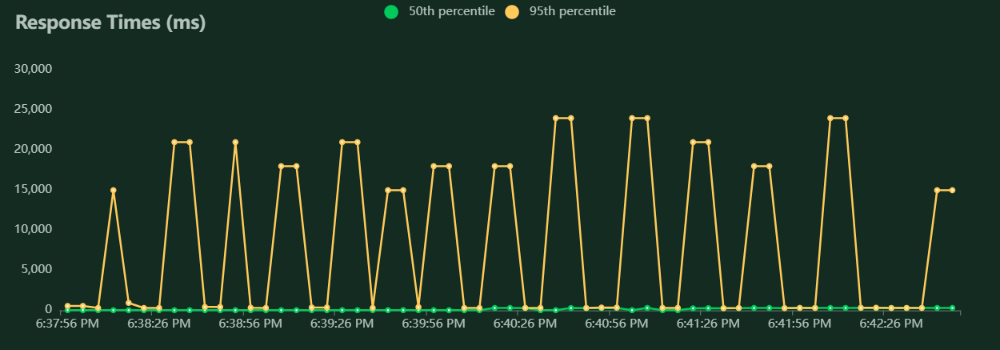

GCP Key Rotation Sync/Refresh

The following tables present performance statistics for CCKM operations related to Google Cloud Platform (GCP) key management, focusing on key rotation, synchronization, and refresh actions.

Request Statistics

MethodName# Requests# FailsAverage (ms)Min (ms)Max (ms)Average size (bytes)RPSFailures/s
GETRotate Key140177218460.00.0
POSTRotate Key19918513937240541570.70.6
POSTSync Key787732725411832490.30.3
Aggregated29126210417240542151.00.9

Response Time Statistics

MethodName50%ile (ms)60%ile (ms)70%ile (ms)80%ile (ms)90%ile (ms)95%ile (ms)99%ile (ms)100%ile (ms)
GETRotate Key1919202020222222
POSTRotate Key2020202134180002400024000
POSTSync Key30030031031040045012001200
Aggregated202226030031012002400024000

Failures Statistics

MethodNameErrorOccurrences
POSTRotate Key409 Client Error: Conflict for url: Rotate Key185
POSTSync Key409 Client Error: Conflict for url: Sync Key77

Exceptions Statistics

CountMessageTracebackNodes
4list index out of rangeFile "/usr/local/lib/python3.8/dist-packages/locust/user/task.py", line 340, in run self.execute_next_task() File "/usr/local/lib/python3.8/dist-packages/locust/user/task.py", line 373, in execute_next_task self.execute_task(self._task_queue.pop(0)) File "/usr/local/lib/python3.8/dist-packages/locust/user/task.py", line 487, in execute_task task(self.user).run() File "/usr/local/lib/python3.8/dist-packages/locust/user/task.py", line 325, in run self.on_start() File "/root/cte_client_dir/vaqa/Engine/lib/../../testcases/kylo/rest/performance/cckm/gcp/locust/gcp_keys_rotate_sync_perf.py", line 132, in on_start self.key_ring_id = self.key_rings[self.key_ring_index]local

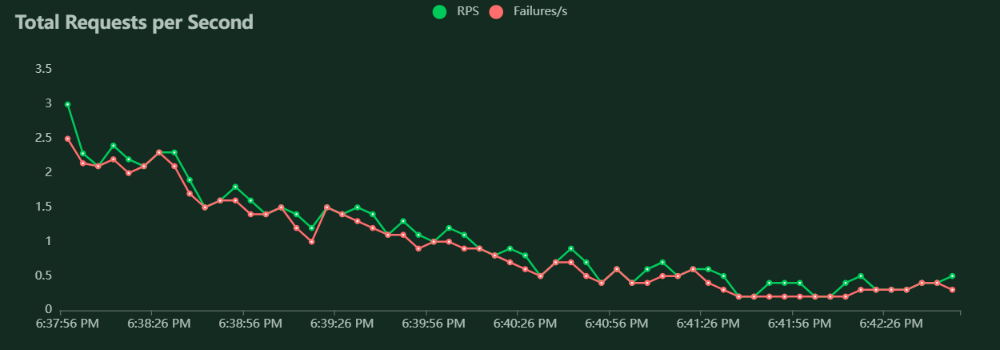

Charts

Oracle Key Rotation Sync/Refresh

The following tables present performance statistics for CCKM operations related to Oracle Cloud Infrastructure (OCI) key management, focusing on key rotation, synchronization, and refresh actions.

Request Statistics

MethodName# Requests# FailsAverage (ms)Min (ms)Max (ms)Average size (bytes)RPSFailures/s
GETRotate Key160155228490.10.0
POSTRotate Key21219614626240641570.70.7
POSTSync Key26626287364122442490.90.9
Aggregated49445810985240642291.61.5

Response Time Statistics

MethodName50%ile (ms)60%ile (ms)70%ile (ms)80%ile (ms)90%ile (ms)95%ile (ms)99%ile (ms)100%ile (ms)
GETRotate Key1819202021232323
POSTRotate Key1920212131180002400024000
POSTSync Key8308508809301100120020002200
Aggregated710790830880100014002400024000

Failures Statistics

MethodNameErrorOccurrences
POSTRotate Key409 Client Error: Conflict for url: Rotate Key196
POSTSync Key409 Client Error: Conflict for url: Sync Key262

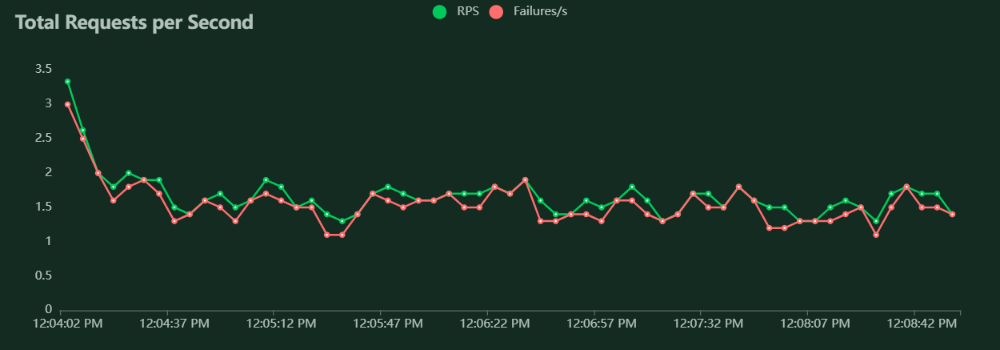

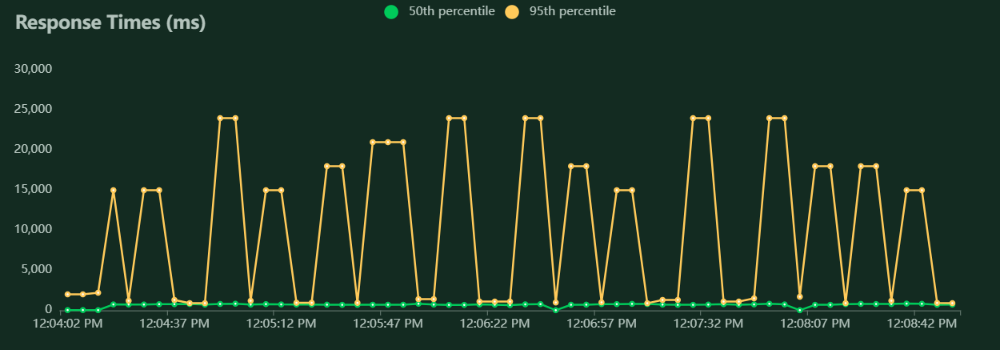

Charts

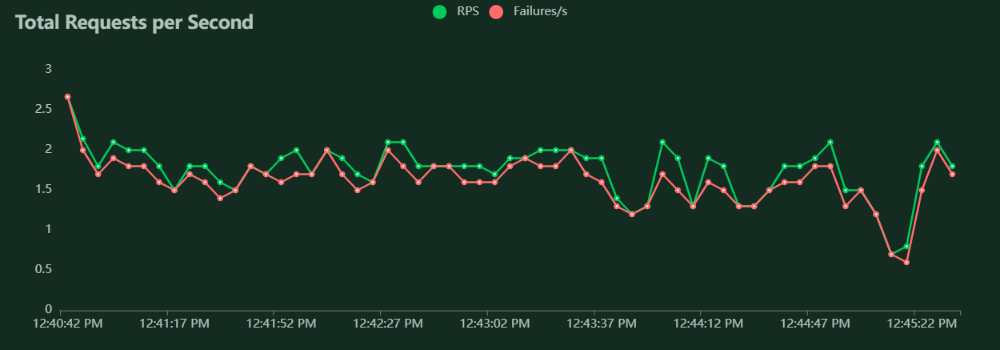

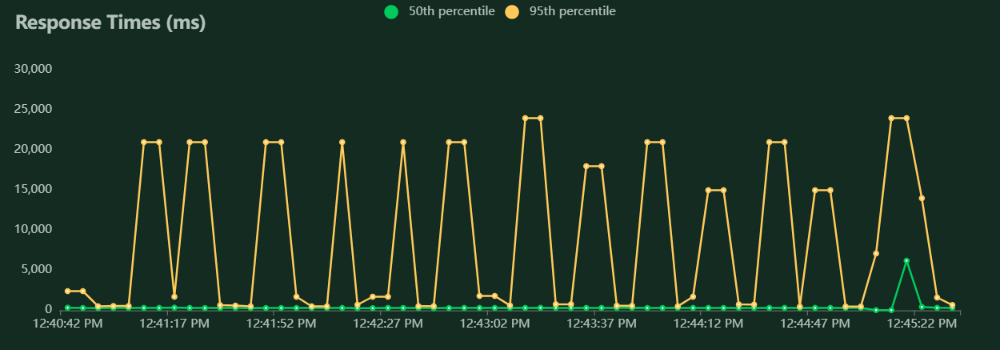

SAP Key Rotation Sync/Refresh

The following tables present performance statistics for CCKM operations related to SAP key management, focusing on key rotation, synchronization, and refresh actions.

Request Statistics

MethodName# Requests# FailsAverage (ms)Min (ms)Max (ms)Average size (bytes)RPSFailures/s
GETRotate Key160127258490.10.0
POSTRotate Key12210626756240601530.40.4
POSTSync Key385376559259139041741.31.3
Aggregated52348210366240601891.71.6

Response Time Statistics

MethodName50%ile (ms)60%ile (ms)70%ile (ms)80%ile (ms)90%ile (ms)95%ile (ms)99%ile (ms)100%ile (ms)
GETRotate Key99181819252525
POSTRotate Key1920212318000210002400024000
POSTSync Key310320400470610790710014000
Aggregated31031035046062018002100024000

Failures Statistics

MethodNameErrorOccurrences
POSTRotate Key409 Client Error: Conflict for url: Rotate Key105
POSTRotate Key401 Client Error: Unauthorized for url: Rotate Key1
POSTSync Key500 Server Error: Internal Server Error for url: Sync Key376

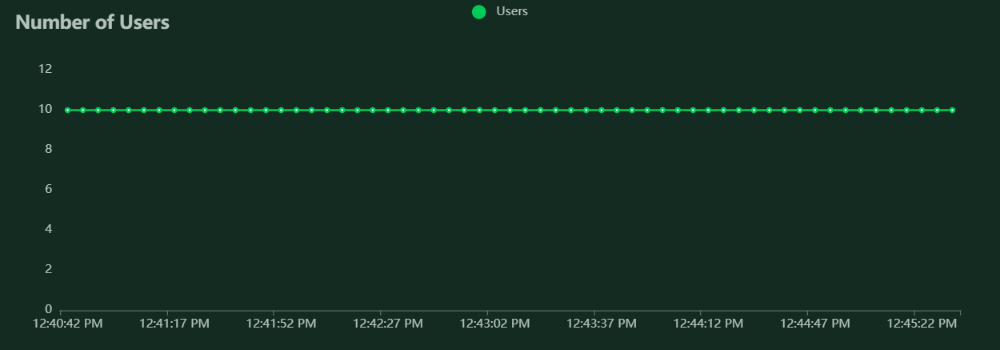

Charts
