Viewing application details

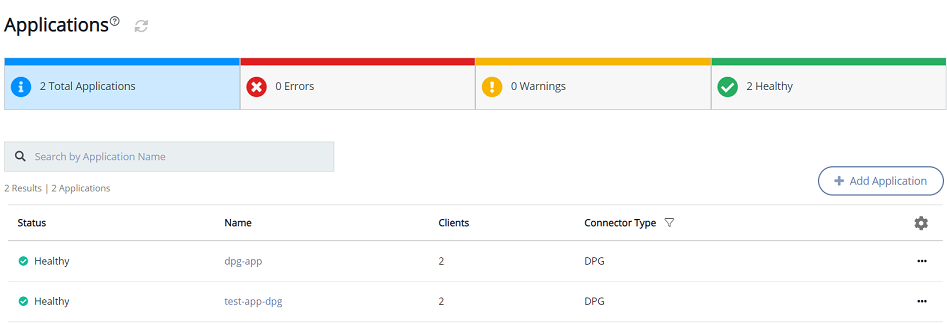

The application page shows the unified view for all the applications defined on the CipherTrust Manager. This page shows:
Total applications defined on the CipherTrust Manager.
The number of applications in Error state.
The number of applications in Warning state.
The number of applications in Healthy state.
You can also search application by its name.
The application page contains the following tabs:
| Column | Description |
|---|---|
| Status | Health status of the application. Possible options are: — Error — Healthy — Warning |
| Name | Name of the application. |
| Clients | Number of clients registered with the application. |
| Connector Type | Connector type. |
When you click application name, following tabs are displayed:
Clients: contains the total number of clients registered within an application.
Settings: contains the configuration associated with clients.
Policy: contains the policies configured for clients.
Caution
The policy tab will be displayed on the UI if the connector type is DPG.

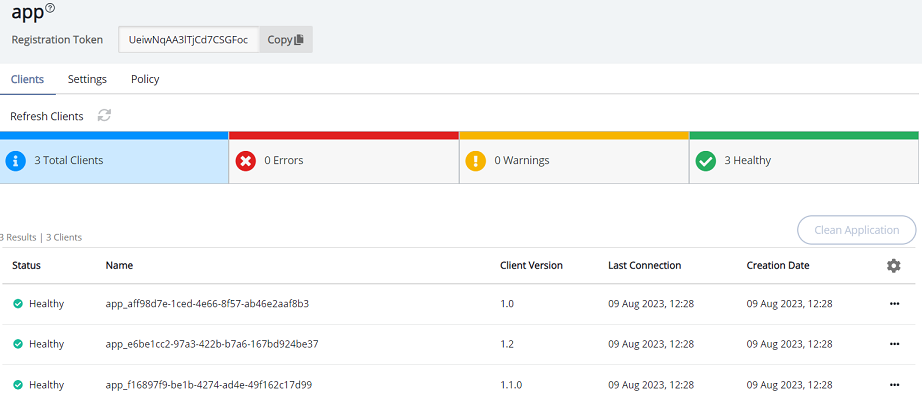

Client tab
The Clients tab shows the total count of clients and clients in different states such as errors, warnings, and healthy.
Click each tab to filter the clients.
The Clients tab displays the following details:
| Column | Description |
|---|---|
| Status | Health status of the clients: — Healthy: number of healthy clients. A client is said be healthy if it sends heartbeat on regular heartbeat_interval.— Errors: number of clients in error state. A client is said to be in error state if the CipherTrust Manager does not receive heartbeat notification until heartbeat_threshold.— Warnings: number of clients in warning state. A client is said to be in warning state if the CipherTrust Manager is not able to receive heartbeat from a client until heartbeat_interval. |
| Name | Name of the client. |
| Client Version | The version of the client protecting the application. |
| Last Connection | Time when the CipherTrust Manager received the last heartbeat from the client. |
| Creation Date | Time when the client was registered on the CipherTrust Manager. |
Settings tab
The Settings tab shows the configuration details for client.
Policy tab
The Policy tab shows the policy associated with the client.
Caution
The policy tab will be displayed on the UI if the connector type is DPG.
